LED SMD Down Light
The SEGA-M LED SMD Down Light is a compact, energy-efficient recessed SMD LED downlight available in 4W (D10) and 12W (D15) configurations. Delivering up to 113 lm/W efficacy with a CRI of ≥80, it is rated IP20 and features a PMMA lens for comfortable, glare-reduced illumination. Suited for homes, hotels, shopping malls, hospitals, schools, and conference rooms, it provides a clean, modern ceiling appearance at an accessible price point.
Explore the Product from Every Angle
360° Product Preview
Product Overview

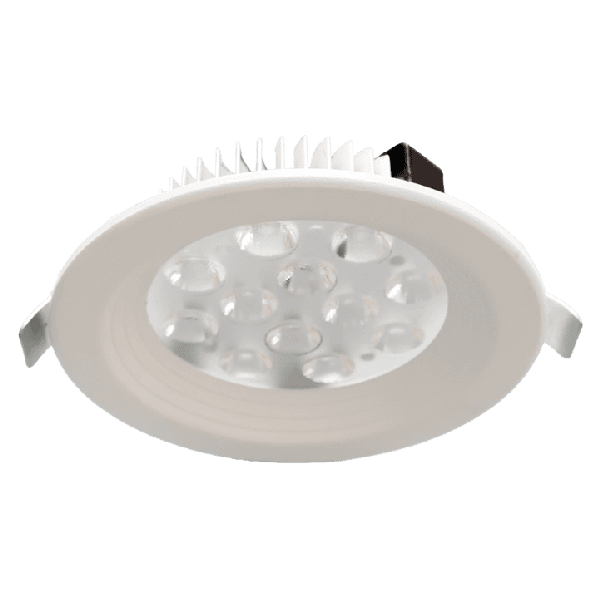

LED SMD Down Light The SEGA-M LED SMD Down Light is a recessed LED downlight powered by SMD LEDs, IP20 rated, designed for office and general indoor lighting in residential, commercial, and institutional environments. Its slim die-cast aluminum body and PMMA lens deliver even, comfortable illumination with minimal glare.

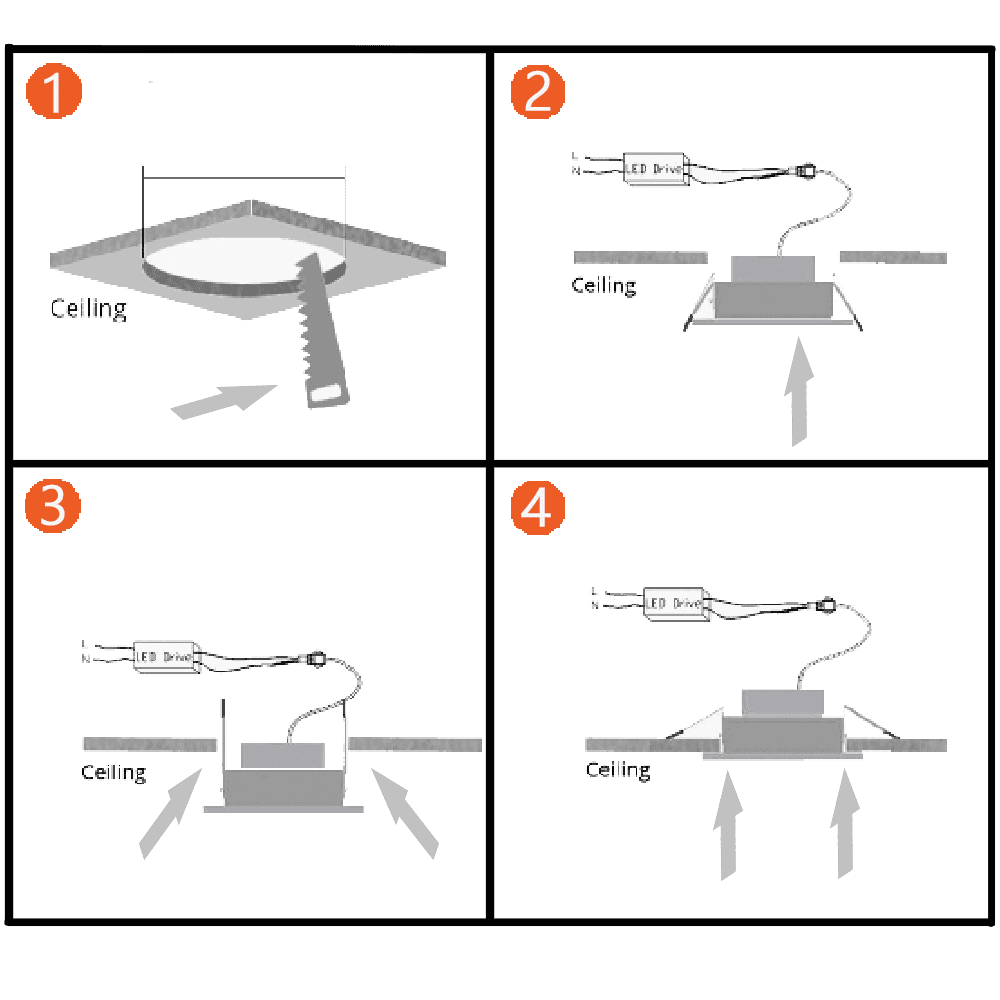

Body & Construction The die-cast aluminum ring is electrostatically coated after Phospho-Chromatation, ensuring durability and heat dissipation. The anodized heat sink maintains optimal LED operating temperatures. The PMMA lens provides uniform light distribution while reducing direct glare. Spring clip installation enables fast, tool-reduced ceiling fitting.

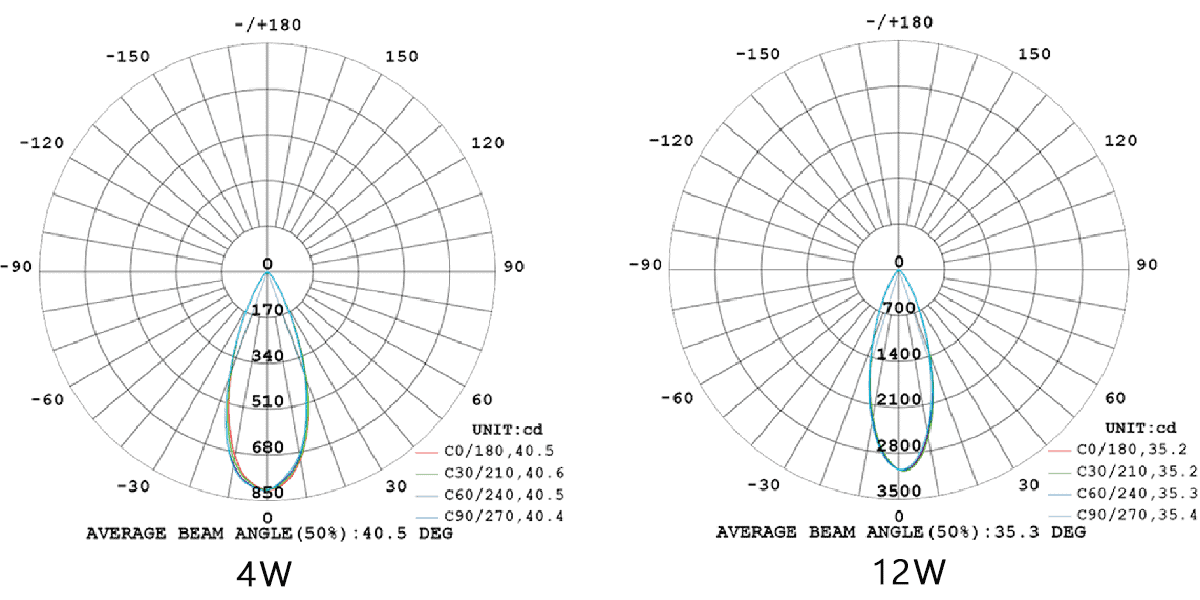

LED Technology Available in 4W (D10: 425 lm, 100 lm/W, 40.5° beam, CRI 80) and 12W (D15: 1417 lm, 113 lm/W, 35.3° beam, CRI 80). CCT options: 3000K / 4000K / 6000K.
At a Glance
Ordering Information
| Item Code | Item Description | Power (W) | Power Factor | Lumen (lm) | Efficacy (lm/W) | Beam Angle (°) | CRI | CCT (K) | Dimensions (Ø×Ø×H) |
|---|---|---|---|---|---|---|---|---|---|
| SLMD10-SMD004260-- | DOWN LIGHT SMD 4W-6000K D10 IP20 | 4 | 0.800 | 425 | 100 | 40.5 | 80 | 6000 | 97×67×42 |
| SLMD10-SMD004240-- | DOWN LIGHT SMD 4W-4000K D10 IP20 | 4 | 0.800 | 425 | 100 | 40.5 | 80 | 4000 | 97×67×42 |
| SLMD10-SMD004230-- | DOWN LIGHT SMD 4W-3000K D10 IP20 | 4 | 0.800 | 425 | 100 | 40.5 | 80 | 3000 | 97×67×42 |
| SLMD15-SMD012260-- | DOWN LIGHT SMD 12W-6000K D15 IP20 | 12 | 0.970 | 1417 | 113 | 35.3 | 80 | 6000 | 144×114×65 |
| SLMD15-SMD012240-- | DOWN LIGHT SMD 12W-4000K D15 IP20 | 12 | 0.970 | 1417 | 113 | 35.3 | 80 | 4000 | 144×114×65 |
| SLMD15-SMD012230-- | DOWN LIGHT SMD 12W-3000K D15 IP20 | 12 | 0.970 | 1417 | 113 | 35.3 | 80 | 3000 | 144×114×65 |
All variants available for export orders — contact us for MOQs, lead times and custom configurations.

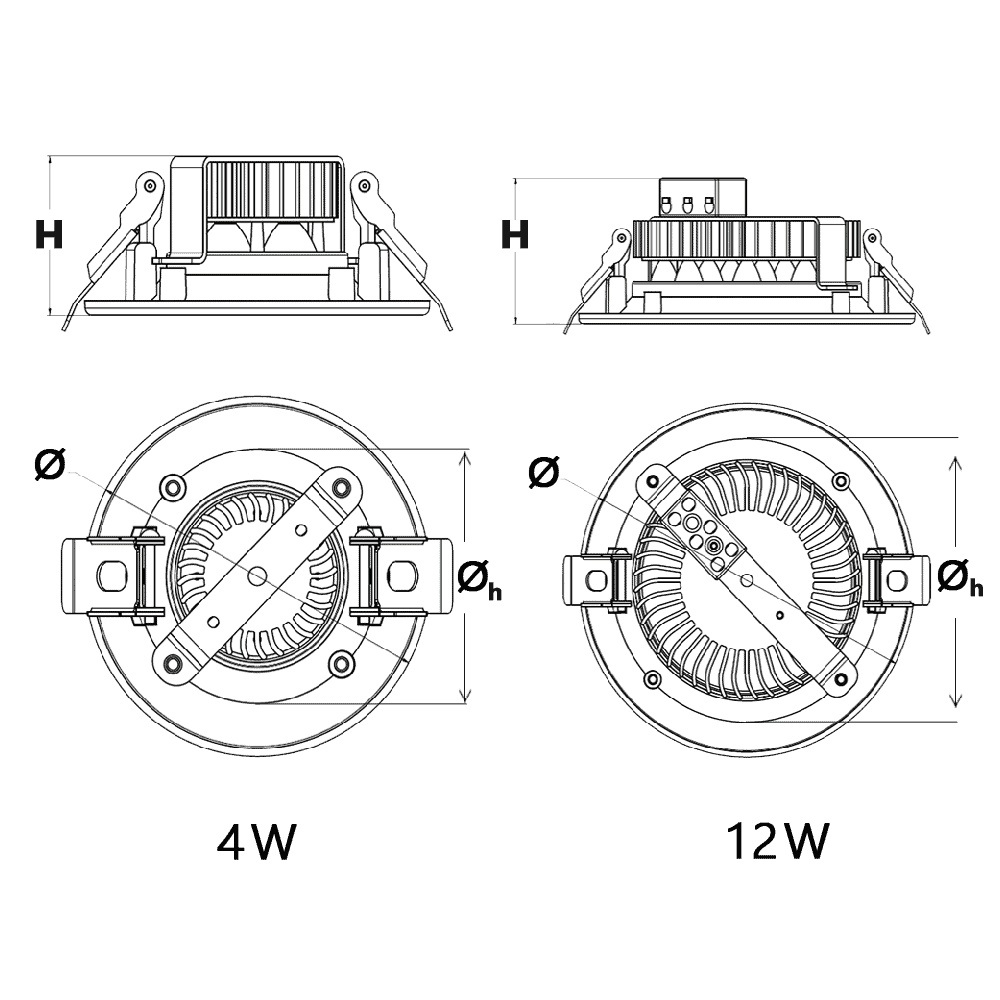

Technical Drawings
