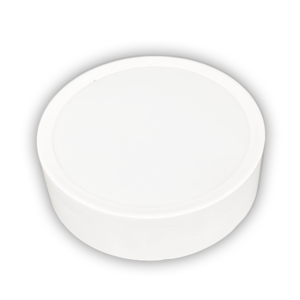

LED Tabo Down light Circular Surface The SEGA-M Tabo Down light Circular Surface is a surface-mounted circular LED luminaire for office spaces and general indoor lighting. Its compact, clean circular form integrates seamlessly into modern ceilings while delivering professional-grade photometric performance for hotels, shopping malls, hospitals, schools, and conference rooms.
Body & Construction The body consists of an electrostatically coated die-cast aluminum ring, providing excellent heat dissipation and long-term structural integrity. The electrostatic coating, applied after Phospho-Chromatation, ensures corrosion resistance and a smooth, professional surface finish. The front IP54 rating provides additional protection against dust and water jets, making it suitable for humid or semi-outdoor-adjacent applications.
LED Technology SMD LED technology delivers consistent performance across both sizes. The 12W model (Ø140 mm) produces 1212 lm at 100 lm/W with a 113.8° beam angle. The 24W model (Ø250 mm) produces 2444 lm at 100 lm/W with a 114.1° beam angle. CRI ≥ 82. CCT options: 3000K / 4000K / 6000K.
IP Rating
IP42 (IP54 Front)
CRI
CRI ≥ 82
Efficacy
100 lm/W
CCT Options
3000K / 4000K / 6000K
| Item Code | Item Description | Power (W) | Power Factor | Lumen (lm) | Efficacy (lm/W) | Beam Angle (°) | CRI | CCT (K) | Dimensions (ØxH) |
|---|---|---|---|---|---|---|---|---|---|
| RTABOS-SMD012260-- | LED TABO DOWN LIGHT SMD 120MM 12W-6000K IP42 | 12 | 0.97 | 1212 | 100 | 113.8 | 82 | 6000 | 140×80 |
| RTABOS-SMD012240-- | LED TABO DOWN LIGHT SMD 120MM 12W-4000K IP42 | 12 | 0.97 | 1212 | 100 | 113.8 | 82 | 4000 | 140×80 |
| RTABOS-SMD012230-- | LED TABO DOWN LIGHT SMD 120MM 12W-3000K IP42 | 12 | 0.97 | 1212 | 100 | 113.8 | 82 | 3000 | 140×80 |
| RTABOL-SMD024260-- | LED TABO DOWN LIGHT SMD 225MM 24W-6000K IP42 | 24 | 0.97 | 2444 | 100 | 114.1 | 82 | 6000 | 250×80 |
| RTABOL-SMD024240-- | LED TABO DOWN LIGHT SMD 225MM 24W-4000K IP42 | 24 | 0.97 | 2444 | 100 | 114.1 | 82 | 4000 | 250×80 |
| RTABOL-SMD024230-- | LED TABO DOWN LIGHT SMD 225MM 24W-3000K IP42 | 24 | 0.97 | 2444 | 100 | 114.1 | 82 | 3000 | 250×80 |
Dimensional Drawing
Install Guide
Photometric Data
Spectrometry
Manufactured to international standards — Zhaga compatible, CE certified, IP42 rated.
