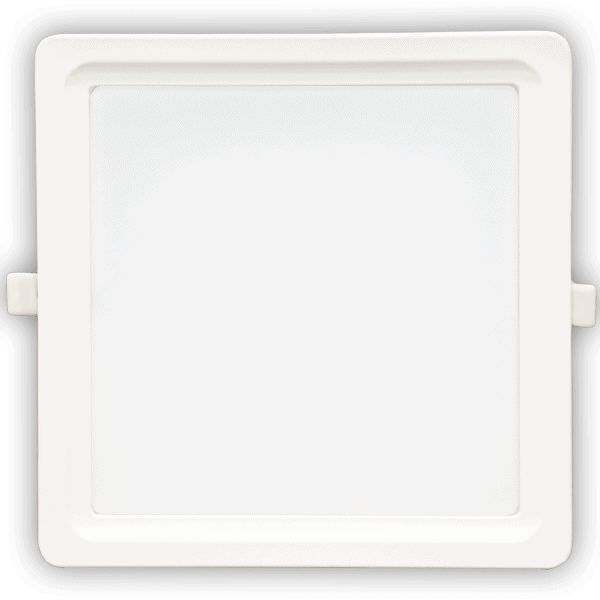

LED Tabo Down light Square
The SEGA-M LED Tabo Down light Square is a high-quality recessed square LED downlight powered by SMD LEDs, rated IP42 with IP54 front-face protection. Ideal for commercial offices, residences, hotels, and malls, it is available in 100 mm, 120 mm, and 225 mm frame sizes at 5W, 12W, and 24W respectively. With 100 lm/W efficacy and three CCT options, it offers both energy efficiency and design flexibility.
Lounge Chair
WHAT'S IN IT FOR YOU
Eames Lounge
Chair & Ottoman
LED TABO DOWN LIGHT SQUARE
LED Tabo Down light Square The SEGA-M Tabo Down light Square is a recessed LED squared downlight powered by SMD technology, IP42 rated (IP54 front), designed for office, residential, hotel, mall, and retail lighting environments. Its flush square form factor delivers a modern, architectural ceiling aesthetic.
Body & Construction Constructed with an electrostatically coated die-cast aluminum ring, the square downlight benefits from excellent heat dissipation characteristics and a corrosion-resistant surface finish post Phospho-Chromatation. IP54 front protection ensures the optical area is safeguarded against dust and water ingress. Cutout dimensions are 80×80 mm (5W), 100×100 mm (12W), and 200×200 mm (24W).
LED Technology The Tabo Square delivers 535 lm at 5W, 1212 lm at 12W, and up to 3681 lm at 24W — all achieving 100 lm/W efficacy. Beam angles range from 113.7° to 114.1° for wide, uniform distribution. CRI ≥ 82. CCT options: 3000K / 4000K / 6000K.
IP Rating
IP42 (IP54 Front)
CRI
CRI ≥ 82
Efficacy
100 lm/W
CCT Options
3000K / 4000K / 6000K
| Item Code | Item Description | Power (W) | Power Factor | Lumen (lm) | Efficacy (lm/W) | Beam Angle (°) | CRI | CCT (K) | Dimensions (DxTxL) |
|---|---|---|---|---|---|---|---|---|---|
| TABOL100-SMD005230-- | LED TABO Square Down light SMD 5W 3000K IP42 | 5 | 0.926 | 535 | 100 | 113.7 | 82 | 3000 | 100×80×40 |
| TABOL100-SMD005240-- | LED TABO Square Down light SMD 5W 4000K IP42 | 5 | 0.926 | 535 | 100 | 113.7 | 82 | 4000 | 100×80×40 |
| TABOL100-SMD005260-- | LED TABO Square Down light SMD 5W 6000K IP42 | 5 | 0.926 | 535 | 100 | 113.7 | 82 | 6000 | 100×80×40 |
| TABOL120-SMD012230-- | LED TABO Square Down light SMD 12W 3000K IP42 | 12 | 0.970 | 1212 | 100 | 113.8 | 82 | 3000 | 120×100×40 |
| TABOL120-SMD012240-- | LED TABO Square Down light SMD 12W 4000K IP42 | 12 | 0.970 | 1212 | 100 | 113.8 | 82 | 4000 | 120×100×40 |
| TABOL120-SMD012260-- | LED TABO Square Down light SMD 12W 6000K IP42 | 12 | 0.970 | 1212 | 100 | 113.8 | 82 | 6000 | 120×100×40 |
| TABOL225-SMD024230-- | LED TABO Square Down light SMD 24W 3000K IP42 | 24 | 0.970 | 2444 | 100 | 114.1 | 82 | 3000 | 225×200×40 |
| TABOL225-SMD024240-- | LED TABO Square Down light SMD 24W 4000K IP42 | 24 | 0.970 | 2444 | 100 | 114.1 | 82 | 4000 | 225×200×40 |
| TABOL225-SMD024260-- | LED TABO Square Down light SMD 24W 6000K IP42 | 24 | 0.970 | 3681 | 100 | 114.1 | 82 | 6000 | 225×200×40 |
Dimensional Drawing
Install Guide
Photometric Data
Spectrometry
Manufactured to international standards — Zhaga compatible, CE certified, IP42 rated.
