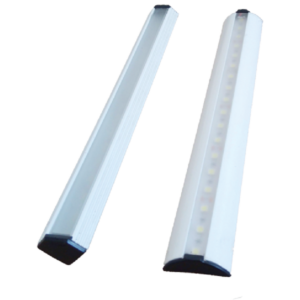

LED Surface Linear
The SEGA-M LED Surface Linear is a compact aluminum section luminaire engineered for decorative indirect and embedded surface lighting in demanding indoor environments such as offices, libraries, hospitals, and architectural facades. Available in R-Section and V-Section profiles in lengths of 30 cm, 40 cm, and 100 cm, it operates on a safe 12V DC supply and offers a CRI of ≥80 with three CCT options. Its versatile design accommodates flat surfaces, corners, and custom architectural profiles.
Lounge Chair
WHAT'S IN IT FOR YOU
Eames Lounge
Chair & Ottoman

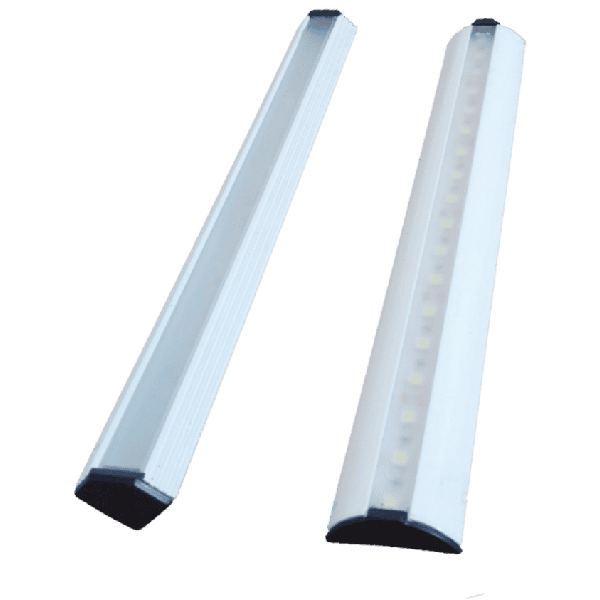

LED SURFACE LINEAR

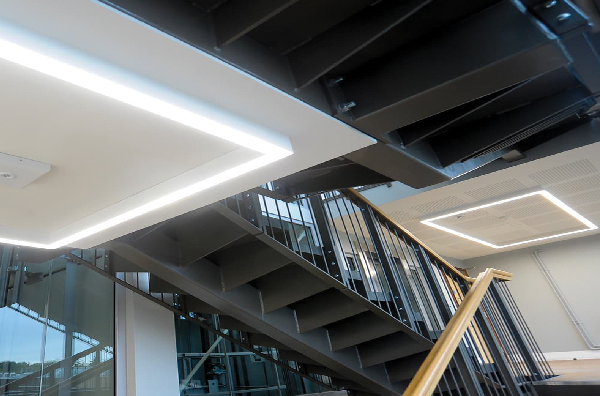

LED Surface Linear The SEGA-M LED Surface Linear is a low-voltage (12V) LED aluminum section light, delivering 14 Lm/m, rated IP42. Designed and created for decorative indirect and embedded lighting, it serves architectural applications, hospital corridors, office ceilings, libraries, and hospitality interiors.
Body & Construction Manufactured from aluminum sections electrostatically coated after Phospho-Chromatation, the Surface Linear is available in two profiles: R Section (rounded) and V Section (angled), enabling installation on flat surfaces, corners, and recessed tracks. The diffuser options include Clear, Milky, and Prismatic polycarbonate, allowing the designer to control light output character — from exposed LED strips to fully diffused, uniform illumination. IP42 protection is standard.
LED Technology Powered by SMD LEDs at 12V DC, the Surface Linear is available in 4W (30 cm) and 6W (40 cm) and 14W (100 cm) configurations. The R Section delivers up to 694 lm at 52 lm/W efficacy and a 100° beam angle, while the V Section offers 289 lm at 22 lm/W and a 66° beam angle — the latter ideal for focused architectural accent work. CRI ≥ 80. CCT options: 3000K / 4000K / 6000K.
IP Rating
IP42 — indoor & semi-exposed environments
CRI
CRI ≥ 80
Efficacy
52 lm/W (R Section) / 22 lm/W (V Section)
CCT Options
3000K / 4000K / 6000K — warm to cool white
| Item Code | Item Description | Power (W) | Power Supply (V) | Lumen (lm) | Efficacy (lm/W) | Beam Angle (°) | CRI | CCT (K) | Dimensions (W×H×D×L) |
|---|---|---|---|---|---|---|---|---|---|
| KLR30-SMD004260-- | LED Aluminum R section 30cm 4W 6000K IP42 | 4 | 220 | 552 | 100 | 80 | 60 | 6000 | 44×14×15×30 |
| KLR30-SMD004240-- | LED Aluminum R section 30cm 4W 4000K IP42 | 4 | 220 | 552 | 100 | 80 | 60 | 4000 | 44×14×15×30 |
| KLR30-SMD004230-- | LED Aluminum R section 30cm 4W 3000K IP42 | 4 | 220 | 552 | 100 | 80 | 60 | 3000 | 44×14×15×30 |
| KLV30-SMD004260-- | LED Aluminum V section 30cm 4W 6000K IP42 | 4 | 220 | 867 | 100 | 80 | 60 | 6000 | 26×26×15×30 |
| KLV30-SMD004240-- | LED Aluminum V section 30cm 4W 4000K IP42 | 4 | 220 | 867 | 100 | 80 | 60 | 4000 | 26×26×15×30 |
| KLR40-SMD006260-- | LED Aluminum R section 40cm 6W 6000K IP42 | 6 | 220 | 775 | 100 | 80 | 60 | 6000 | 44×14×15×40 |
| KLR40-SMD006240-- | LED Aluminum R section 40cm 6W 4000K IP42 | 6 | 220 | 775 | 100 | 80 | 60 | 4000 | 44×14×15×40 |
| KLR40-SMD006230-- | LED Aluminum R section 40cm 6W 3000K IP42 | 6 | 220 | 775 | 100 | 80 | 60 | 3000 | 44×14×15×40 |
| KLV40-SMD006260-- | LED Aluminum V section 40cm 6W 6000K IP42 | 6 | 220 | 1156 | 100 | 80 | 60 | 6000 | 26×26×15×40 |
| KLR100-SMD014260-- | LED Aluminum R section 100cm 14W 6000K IP42 | 14 | 220 | 2694 | 100 | 80 | 60 | 6000 | 44×14×15×100 |
| KLR100-SMD014240-- | LED Aluminum R section 100cm 14W 4000K IP42 | 14 | 220 | 2694 | 100 | 80 | 60 | 4000 | 44×14×15×100 |
| KLR100-SMD014230-- | LED Aluminum R section 100cm 14W 3000K IP42 | 14 | 220 | 2694 | 100 | 80 | 60 | 3000 | 44×14×15×100 |
| KLV100-SMD014260-- | LED Aluminum V section 100cm 14W 6000K IP42 | 14 | 220 | 2892 | 100 | 80 | 60 | 6000 | 26×26×15×100 |
| KLV100-SMD014240-- | LED Aluminum V section 100cm 14W 4000K IP42 | 14 | 220 | 2892 | 100 | 80 | 60 | 4000 | 26×26×15×100 |
| KLV100-SMD014230-- | LED Aluminum V section 100cm 14W 3000K IP42 | 14 | 220 | 2892 | 100 | 80 | 60 | 3000 | 26×26×15×100 |
Dimensional Drawing
Install Guide

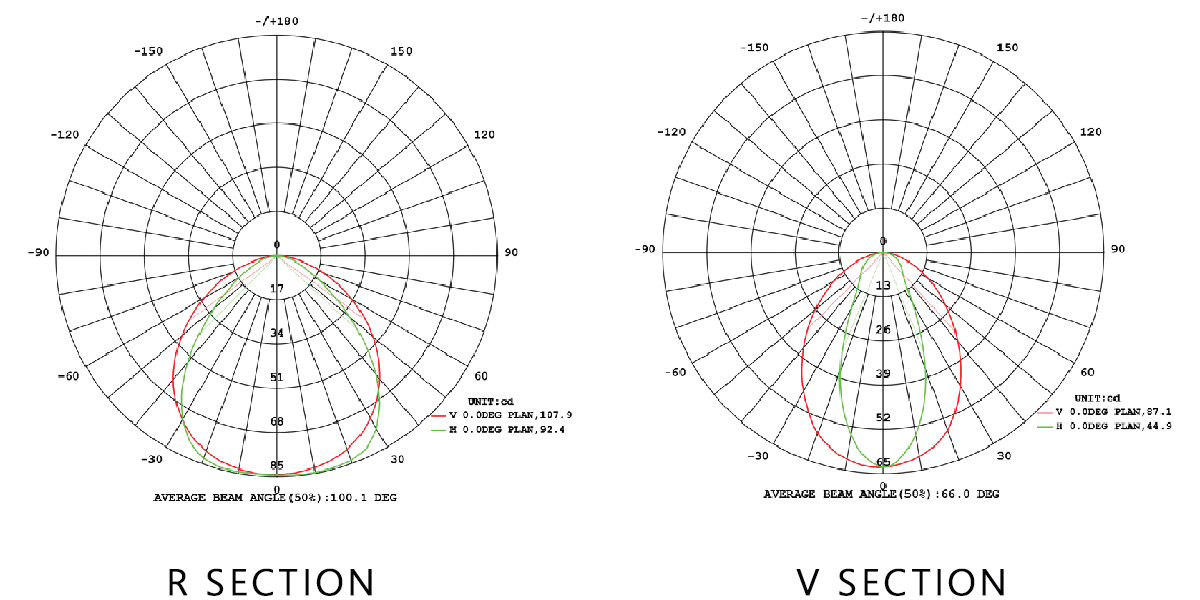

Photometric Data

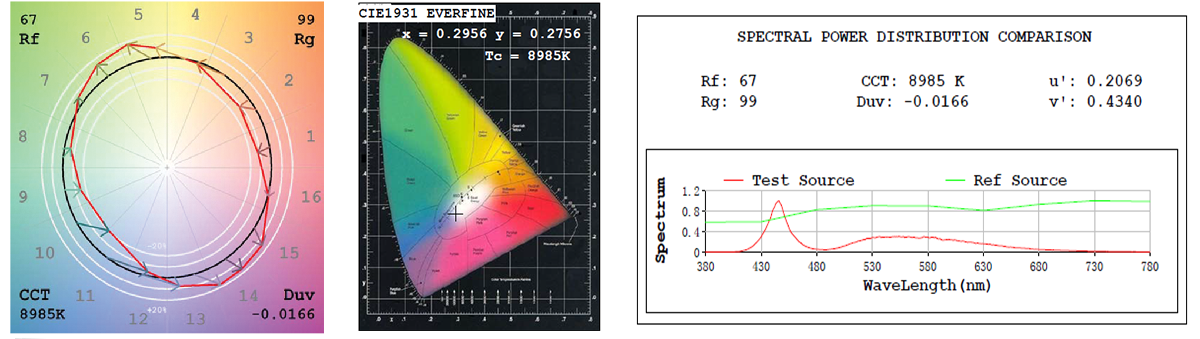

Spectrometry
Manufactured to international standards — Zhaga compatible, CE certified, IP42 rated.
