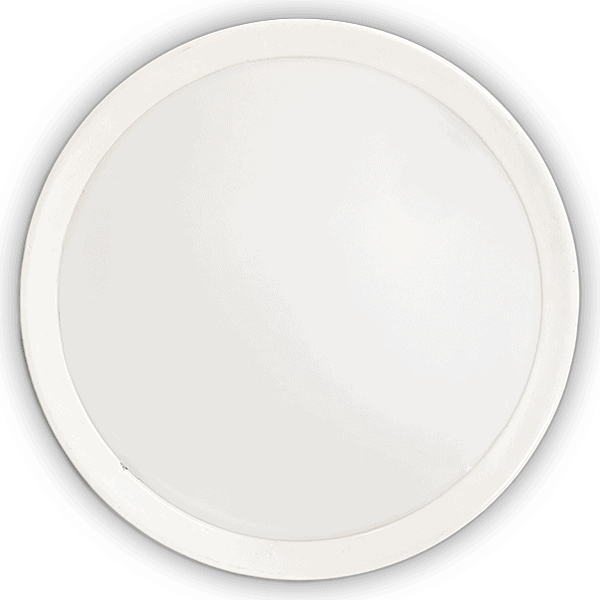

LED Tabo Down light Circular
The SEGA-M LED Tabo Down light Circular is a professional recessed circular SMD LED downlight engineered for office spaces and general indoor illumination. Available in three sizes — 100 mm (5W), 120 mm (12W), and 225 mm (24W) — it delivers a constant 100 lm/W efficacy and carries an IP42 / IP54 Front rating. Suitable for hotels, shopping malls, hospitals, schools, and conference rooms requiring consistent, high-quality overhead lighting.
Lounge Chair
WHAT'S IN IT FOR YOU
Eames Lounge
Chair & Ottoman

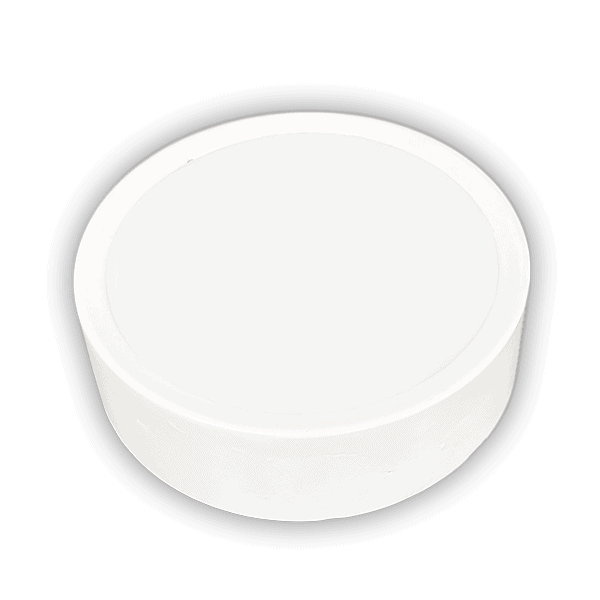

LED Tabo Down light Circular Surface
LED Tabo Down light Circular The SEGA-M Tabo Down light Circular is a recessed LED downlight powered by SMD technology, IP42 rated (IP54 front), designed and created specifically for office and general indoor lighting environments. Its circular recessed format delivers a clean, flush ceiling appearance ideal for shopping malls, hotels, hospitals, schools, and conference rooms.
Body & Construction The body features an electrostatically coated die-cast aluminum ring, providing robust heat management and a durable, corrosion-resistant finish after Phospho-Chromatation. The IP54 front rating affords additional protection, suitable for environments with moderate humidity. The product ships with a spring clip retention system for straightforward ceiling installation.
LED Technology Powered by SMD LEDs, the Tabo Circular delivers 535 lm at 5W (100 mm, cutout Ø80), 1212 lm at 12W (120 mm, cutout Ø100), and 2444 lm at 24W (225 mm, cutout Ø200), all at a consistent 100 lm/W efficacy. Beam angle ranges from 113.7° to 114.1°, providing broad, uniform illumination. CRI ≥ 82. CCT options: 3000K / 4000K / 6000K.
IP Rating
IP42 (IP54 Front)
CRI
CRI ≥ 82
Efficacy
100 lm/W
CCT Options
3000K / 4000K / 6000K
| Item Code | Item Description | Power (W) | Power Factor | Lumen (lm) | Efficacy (lm/W) | Beam Angle (°) | CRI | CCT (K) | Dimensions (Ø×H×H) |
|---|---|---|---|---|---|---|---|---|---|
| TABOD100-SMD005230-- | LED TABO DOWN LIGHT SMD 100MM 5W 3000K IP42 | 5 | 0.97 | 535 | 100 | 113.7 | 82 | 3000 | 100×80×40 |
| TABOD100-SMD005240-- | LED TABO DOWN LIGHT SMD 100MM 5W 4000K IP42 | 5 | 0.97 | 535 | 100 | 113.7 | 82 | 4000 | 100×80×40 |
| TABOD100-SMD005260-- | LED TABO DOWN LIGHT SMD 100MM 5W 6000K IP42 | 5 | 0.97 | 535 | 100 | 113.7 | 82 | 6000 | 100×80×40 |
| TABOD120-SMD012230-- | LED TABO DOWN LIGHT SMD 120MM 12W 3000K IP42 | 12 | 0.97 | 1212 | 100 | 113.8 | 82 | 3000 | 120×100×40 |
| TABOD120-SMD012240-- | LED TABO DOWN LIGHT SMD 120MM 12W 4000K IP42 | 12 | 0.97 | 1212 | 100 | 113.8 | 82 | 4000 | 120×100×40 |
| TABOD120-SMD012260-- | LED TABO DOWN LIGHT SMD 120MM 12W 6000K IP42 | 12 | 0.97 | 1212 | 100 | 113.8 | 82 | 6000 | 120×100×40 |
| TABOD225-SMD024230-- | LED TABO DOWN LIGHT SMD 225MM 24W 3000K IP42 | 24 | 0.97 | 2444 | 100 | 114.1 | 82 | 3000 | 225×200×121 |
| TABOD225-SMD024240-- | LED TABO DOWN LIGHT SMD 225MM 24W 4000K IP42 | 24 | 0.97 | 2444 | 100 | 114.1 | 82 | 4000 | 225×200×121 |
| TABOD225-SMD024260-- | LED TABO DOWN LIGHT SMD 225MM 24W 6000K IP42 | 24 | 0.97 | 2444 | 100 | 114.1 | 82 | 6000 | 225×200×121 |
Dimensional Drawing

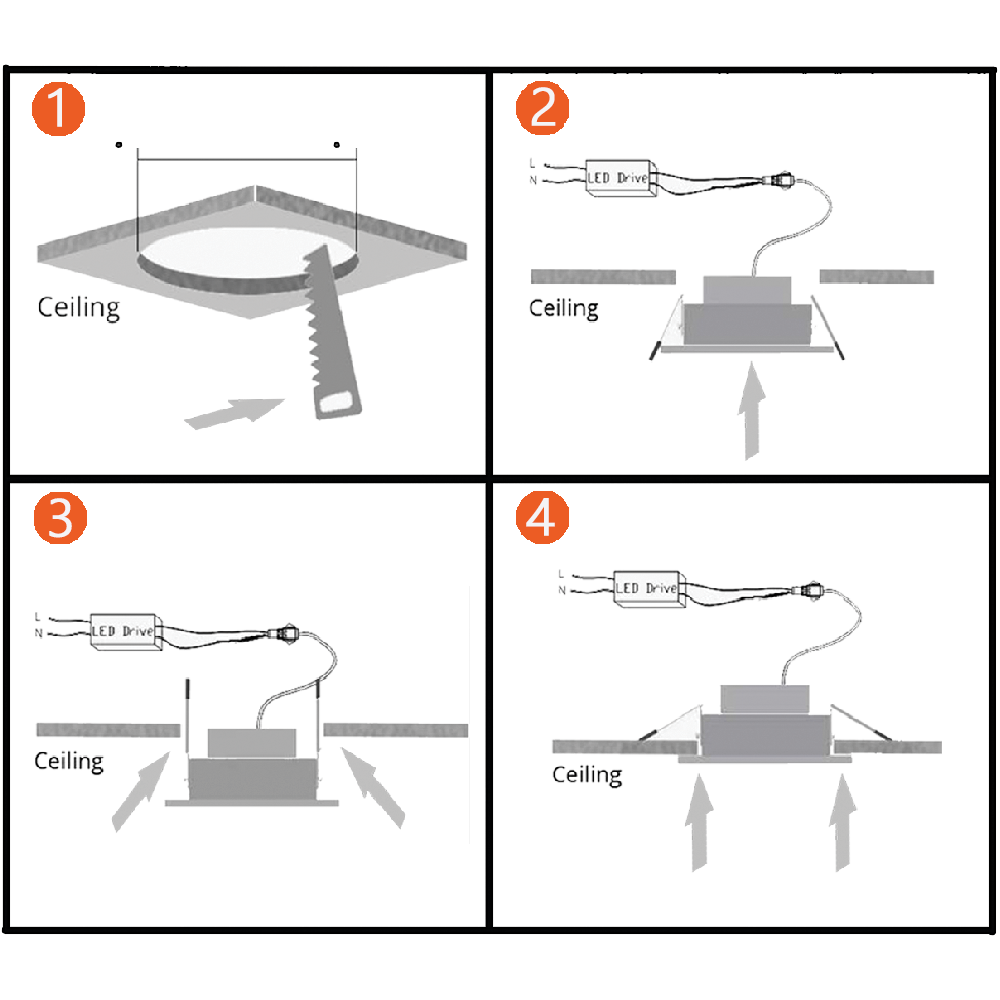

Install Guide
Photometric Data
Spectrometry
Manufactured to international standards — Zhaga compatible, CE certified, IP42 rated.
