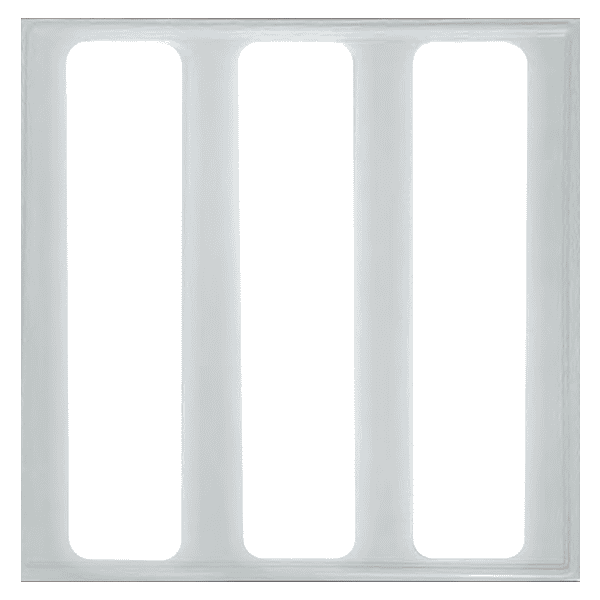

LED Back Light Grill
The SEGA-M LED Back Light Grill is a 595×595 mm recessed or surface-mounted office-grade LED luminaire powered by SMD LEDs, delivering 4186 lm at 106 lm/W efficacy from 40W. Featuring an Aluminum section frame with anti-glare PET-Milky diffuser and press-formed sheet steel body, it is rated IP20 and achieves a CRI of ≥83.5. It is the preferred ceiling panel for offices, libraries, shopping malls, schools, conference rooms, and hospitals requiring anti-glare, task-grade illumination.
Lounge Chair
WHAT'S IN IT FOR YOU
Eames Lounge
Chair & Ottoman
LED Back Light Grill

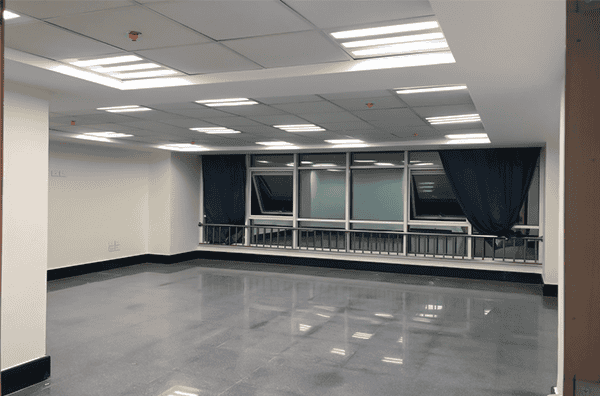

LED Back Light Grill The SEGA-M LED Back Light Grill is a recessed and surface-mounted luminaire for office and general indoor lighting, powered by SMD LEDs and rated IP20. Its grill-panel format is the classic choice for commercial suspended ceiling grids, ensuring uniform, anti-glare task lighting across open-plan offices, libraries, shopping malls, and institutional environments.
Body & Construction The body is press-formed sheet steel, electrostatically white-coated after Phospho-Chromatation. An aluminum section frame houses the optical assembly, which incorporates an anti-glare PET-Milky diffuser for comfortable, uniform luminance distribution without veiling reflections. The design is compatible with standard 600×600 mm T-bar grid ceilings.
LED Technology 40W SMD LEDs deliver 4186 lm at 106 lm/W efficacy. Beam angle: 109.4° — wide, even distribution across the full panel face. CRI ≥ 83.5. Dimensions: 595×595×41 mm. CCT options: 3000K / 4000K / 6000K.
IP Rating
IP20
CRI
CRI ≥ 83.5
Efficacy
106 lm/W
CCT Options
3000K / 4000K / 6000K
| Item Code | Item Description | Power (W) | Power Factor | Lumen (lm) | Efficacy (lm/W) | Beam Angle (°) | CRI | CCT (K) | Dimensions (D×L×T) |
|---|---|---|---|---|---|---|---|---|---|
| GRILL-SMD040260-- | OFFICE SMD 40W AUPAL FACE-6000K IP20 | 40 | 0.972 | 4186 | 106 | 109.4 | 83.5 | 6000 | 595×595×41 |
| GRILL-SMD040240-- | OFFICE SMD 40W AUPAL FACE-4000K IP20 | 40 | 0.972 | 4186 | 106 | 109.4 | 83.5 | 4000 | 595×595×41 |
| GRILL-SMD040230-- | OFFICE SMD 40W AUPAL FACE-3000K IP20 | 40 | 0.972 | 4186 | 106 | 109.4 | 83.5 | 3000 | 595×595×41 |

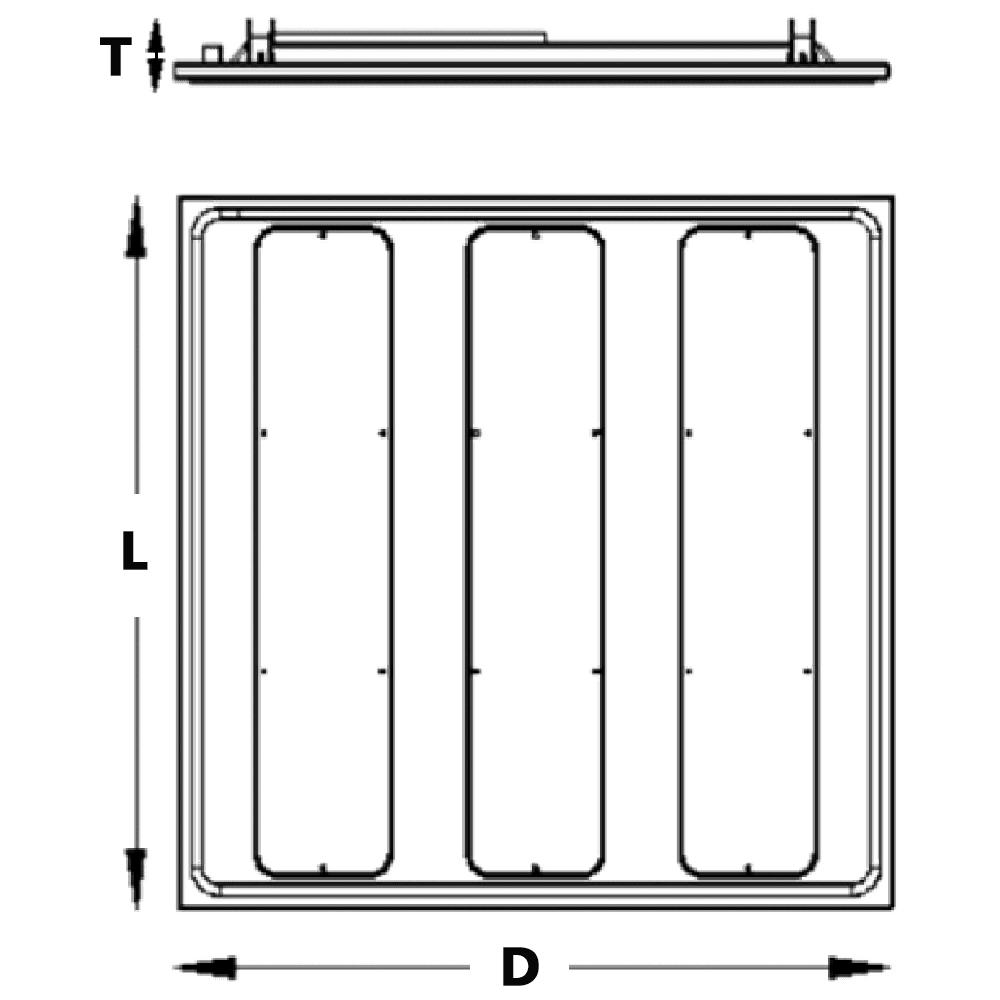

Dimensional Drawing

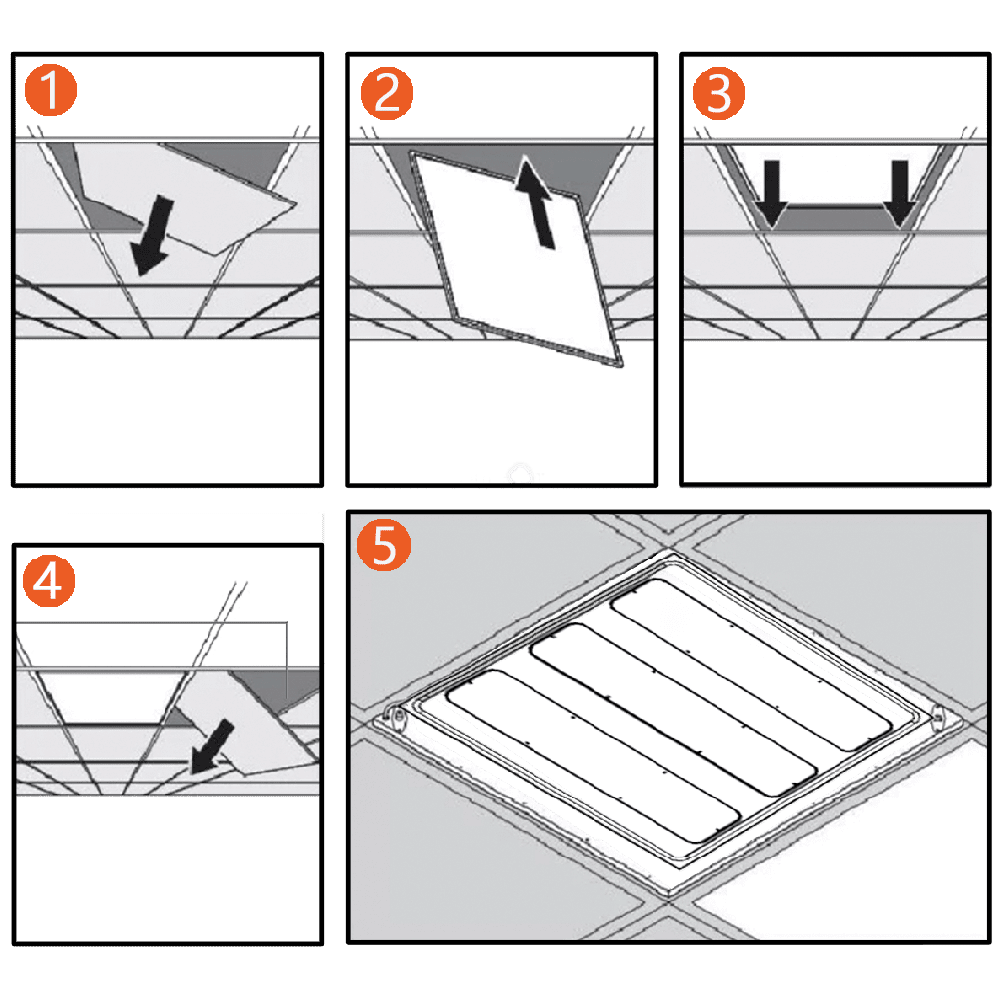

Install Guide
Photometric Data

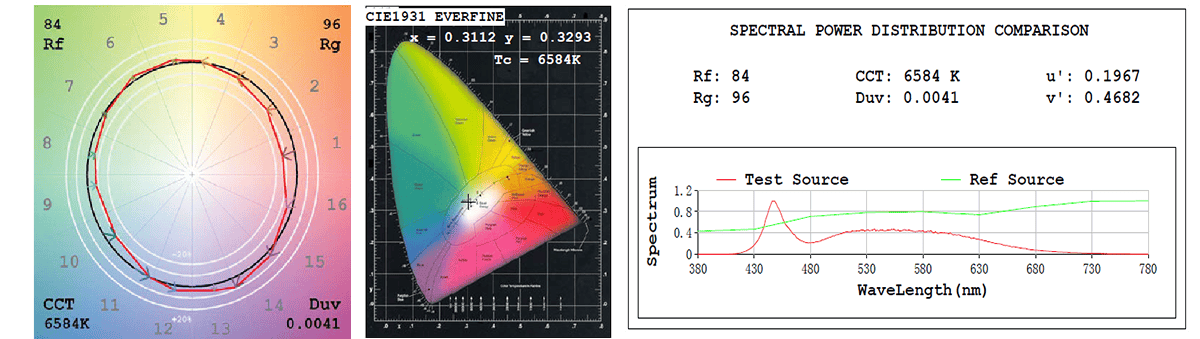

Spectrometry
Manufactured to international standards — Zhaga compatible, CE certified, IP42 rated.
