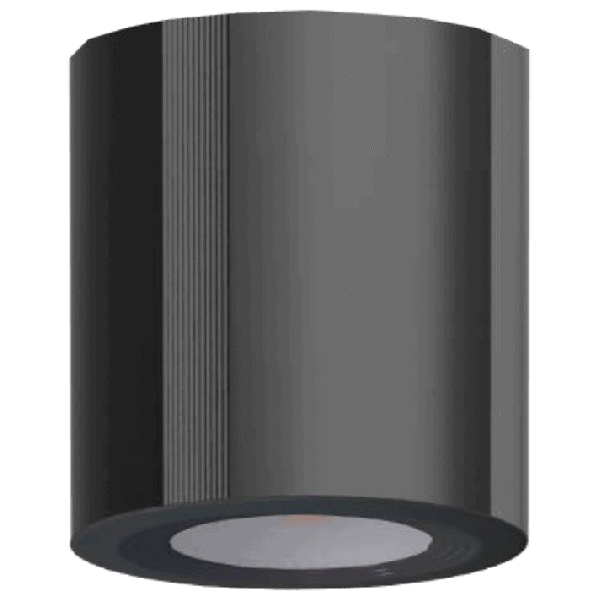

Surface Mounted LED Down Light
Surface Mounted LED Down Light The SEGA-M Surface Mounted LED Down Light is a cylinder-form surface-mounted LED luminaire, IP42 rated, designed for decorative and primary ceiling lighting applications. Its compact cylindrical profile integrates neatly into both modern and traditional interior designs.
Body & Construction The body is die-cast and extruded aluminum, electrostatically coated after Phospho-Chromatation. The interior reflector is polished anodized aluminum, maximising optical efficiency. A PMMA lens provides glare control and lamp protection. IP42 rating ensures protection from dust and dripping water. Dimensions: Ø135 × H150 mm.
LED Technology Available in 12W (1417 lm, 100 lm/W, 28° beam, CRI 83.3) and 20W (1435 lm, 100 lm/W, 60° beam, CRI 83.3) configurations. Both SMD and COB LED variants are available. CCT options: 3000K / 4000K / 6000K.
IP Rating
IP42
CRI
CRI ≥ 83.3
Efficacy
100 lm/W
CCT Options
3000K / 4000K / 6000K
| Item Code | Item Description | Power (W) | Power Factor | Lumen (lm) | Efficacy (lm/W) | Beam Angle (°) | CRI | CCT (K) | Dimensions (Ø×H) |
|---|---|---|---|---|---|---|---|---|---|
| CRSR1-COB012260-- | CYLINDER SURFACE MOUNTED LED DOWN LIGHT COB 12W-6000K IP54 | 12 | 0.97 | 1417 | 100 | 28 | 83.3 | 6000 | 135×150 |
| CRSR1-COB012240-- | CYLINDER SURFACE MOUNTED LED DOWN LIGHT COB 12W-4000K IP54 | 12 | 0.97 | 1417 | 100 | 28 | 83.3 | 4000 | 135×150 |
| CRSR1-COB012230-- | CYLINDER SURFACE MOUNTED LED DOWN LIGHT COB 12W-3000K IP54 | 12 | 0.97 | 1417 | 100 | 28 | 83.3 | 3000 | 135×150 |
| CRSR1-COB020260-- | CYLINDER SURFACE MOUNTED LED DOWN LIGHT COB 20W-6000K IP54 | 20 | 0.97 | 1435 | 100 | 60 | 83.3 | 6000 | 135×150 |
| CRSR1-COB020240-- | CYLINDER SURFACE MOUNTED LED DOWN LIGHT COB 20W-4000K IP54 | 20 | 0.97 | 1435 | 100 | 60 | 83.3 | 4000 | 135×150 |
| CRSR1-COB020230-- | CYLINDER SURFACE MOUNTED LED DOWN LIGHT COB 20W-3000K IP54 | 20 | 0.97 | 1435 | 100 | 60 | 83.3 | 3000 | 135×150 |
Dimensional Drawing

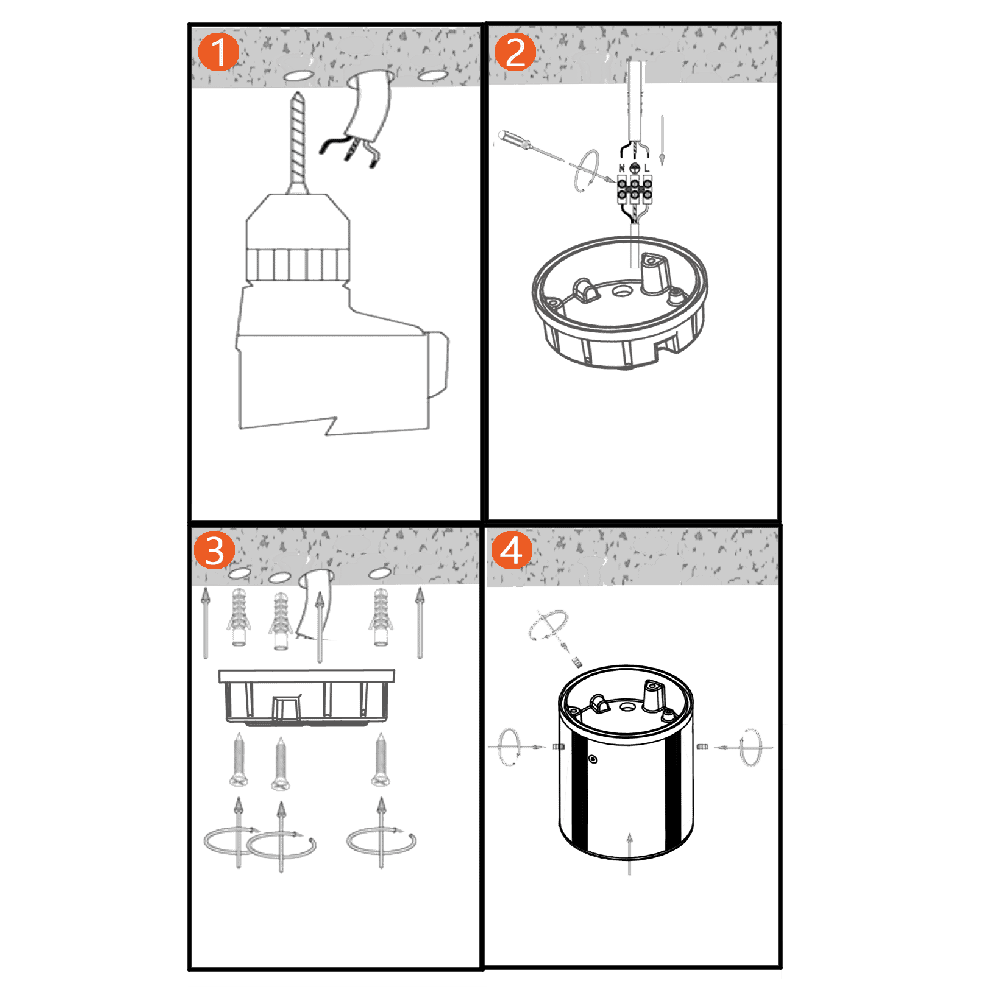

Install Guide
Photometric Data

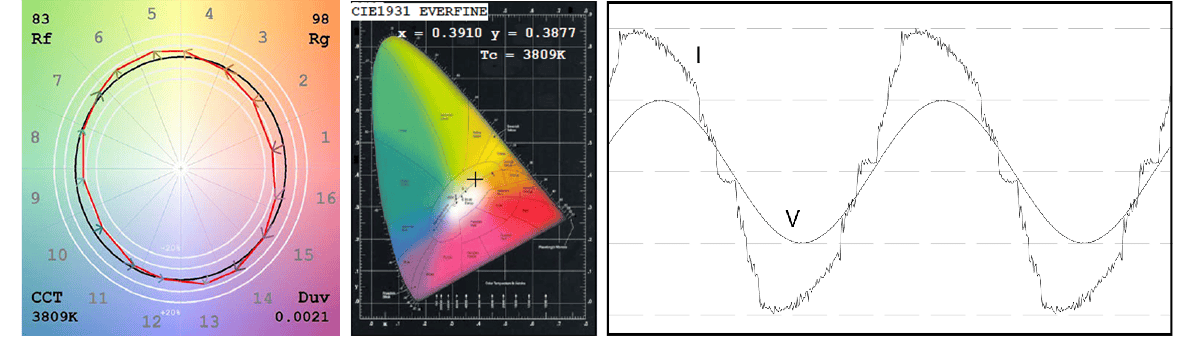

Spectrometry
Manufactured to international standards — Zhaga compatible, CE certified, IP42 rated.
