Rocky Street Light
The SEGA-M Rocky Street Light is a heavy-duty high-performance public LED street luminaire available in 105W and 150W configurations and in two optical variants: Rocky with Lens (tempered glass diffuser + PMMA lenses) and Rocky Lens Free (PMMA lenses only). Rated IP65 and IK08, the Rocky with Lens delivers 11,853–15,326 lm at 101.5–114.52 lm/W, while the Lens Free achieves up to 117.35 lm/W. Designed for main roads and urban communities across pedestrian areas, residences, parking, roads, yards, and squares.
Product Overview

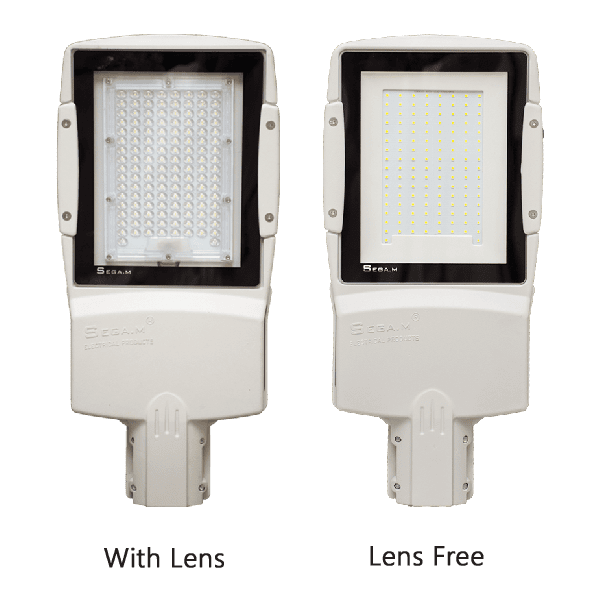

Rocky Street Light The SEGA-M Rocky Street Light is a high-performance public LED street luminaire, IP65 and IK08 rated, powered by LED light sources at 105W and 150W. It is designed and created for main roads and urban communities, serving pedestrian areas, residential zones, parking facilities, roads, yards, and public squares. Two optical variants — With Lens and Lens Free — provide flexibility to match photometric control requirements.
Body & Construction Die-cast aluminum housing, electrostatically coated after Phospho-Chromatation. Rocky with Lens: tempered clear glass diffuser and PMMA lenses. Rocky Lens Free: PMMA lenses only, providing higher lumen output at reduced optical losses. High photometric performance is a central design priority for both variants. IP65 / IK08 full street outdoor protection. Dimensions: 513×244×61 mm.

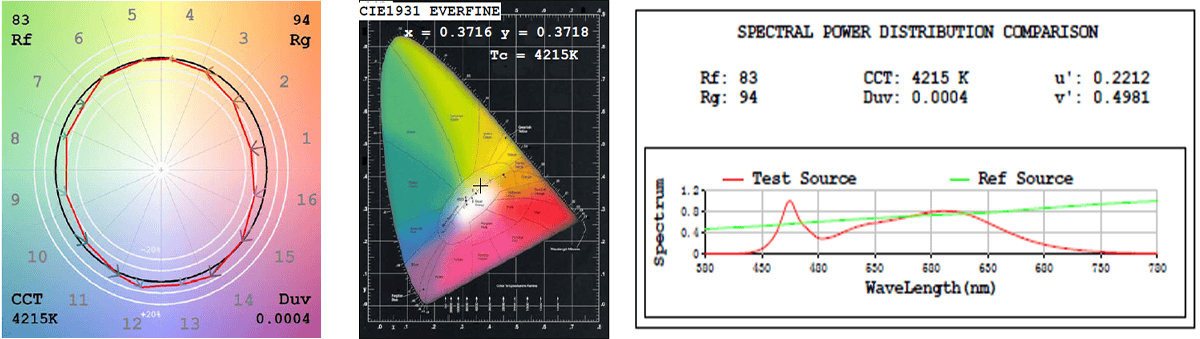

LED Technology Rocky with Lens 105W: 11,853 lm, 114.52 lm/W, 100.9° beam, CRI 80. Rocky with Lens 150W: 15,326 lm, 101.5 lm/W, 77.3° beam, CRI 83.2. Rocky Lens Free 105W: 12,382 lm, 117.35 lm/W, 114.8° beam, CRI 83.2. Rocky Lens Free 150W: 16,202 lm, 107.3 lm/W, 116.5° beam, CRI 83.8. CCT options: 3000K / 4000K / 6000K.
At a Glance
Ordering Information
| Item Code | Item Description | Power (W) | Power Factor | Lumen (lm) | Efficacy (lm/W) | Beam Angle (°) | CRI | CCT (K) | Dimensions (L×W×T) |
|---|---|---|---|---|---|---|---|---|---|
| ROCKYN-SMD105260-- | ROCKY LED STREET LUMINAIRE SMD 105W-6000K IP65 | 105 | 0.986 | 11853 | 114.52 | 100.9 | 80 | 6000 | 513×244×61 |
| ROCKYN-SMD105240-- | ROCKY LED STREET LUMINAIRE SMD 105W-4000K IP65 | 105 | 0.986 | 11853 | 114.52 | 100.9 | 80 | 4000 | 513×244×61 |
| ROCKYN-SMD105230-- | ROCKY LED STREET LUMINAIRE SMD 105W-3000K IP65 | 105 | 0.986 | 11853 | 114.52 | 100.9 | 80 | 3000 | 513×244×61 |
| ROCKYN-SMD150260-- | ROCKY LED STREET LUMINAIRE SMD 150W-6000K IP65 | 150 | 0.982 | 15326 | 101.50 | 77.3 | 83.2 | 6000 | 513×244×61 |
| ROCKYN-SMD150240-- | ROCKY LED STREET LUMINAIRE SMD 150W-4000K IP65 | 150 | 0.982 | 15326 | 101.50 | 77.3 | 83.2 | 4000 | 513×244×61 |
| ROCKYN-SMD150230-- | ROCKY LED STREET LUMINAIRE SMD 150W-3000K IP65 | 150 | 0.982 | 15326 | 101.50 | 77.3 | 83.2 | 3000 | 513×244×61 |
| ROCKYR-SMD105260-- | ROCKY LED STREET LUMINAIRE LENS FREE SMD 105W-6000K IP65 | 105 | 0.984 | 12382 | 117.35 | 114.8 | 83.2 | 6000 | 513×244×61 |
| ROCKYR-SMD105240-- | ROCKY LED STREET LUMINAIRE LENS FREE SMD 105W-4000K IP65 | 105 | 0.984 | 12382 | 117.35 | 114.8 | 83.2 | 4000 | 513×244×61 |
| ROCKYR-SMD105230-- | ROCKY LED STREET LUMINAIRE LENS FREE SMD 105W-3000K IP65 | 105 | 0.984 | 12382 | 117.35 | 114.8 | 83.2 | 3000 | 513×244×61 |
| ROCKYR-SMD150260-- | ROCKY LED STREET LUMINAIRE LENS FREE SMD 150W-6000K IP65 | 150 | 0.989 | 16202 | 107.30 | 116.5 | 83.8 | 6000 | 513×244×61 |
| ROCKYR-SMD150240-- | ROCKY LED STREET LUMINAIRE LENS FREE SMD 150W-4000K IP65 | 150 | 0.989 | 16202 | 107.30 | 116.5 | 83.8 | 4000 | 513×244×61 |
| ROCKYR-SMD150230-- | ROCKY LED STREET LUMINAIRE LENS FREE SMD 150W-3000K IP65 | 150 | 0.989 | 16202 | 107.30 | 116.5 | 83.8 | 3000 | 513×244×61 |
All variants available for export orders — contact us for MOQs, lead times and custom configurations.

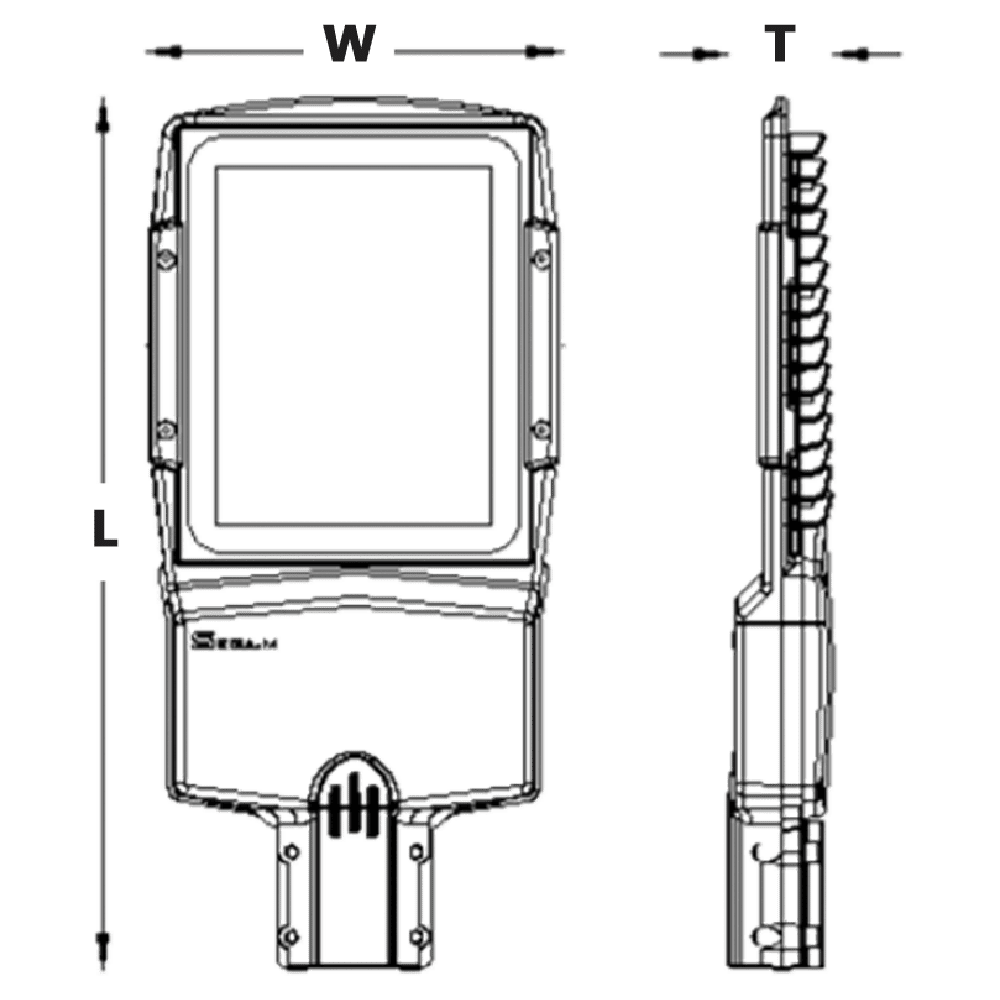

Technical Drawings
