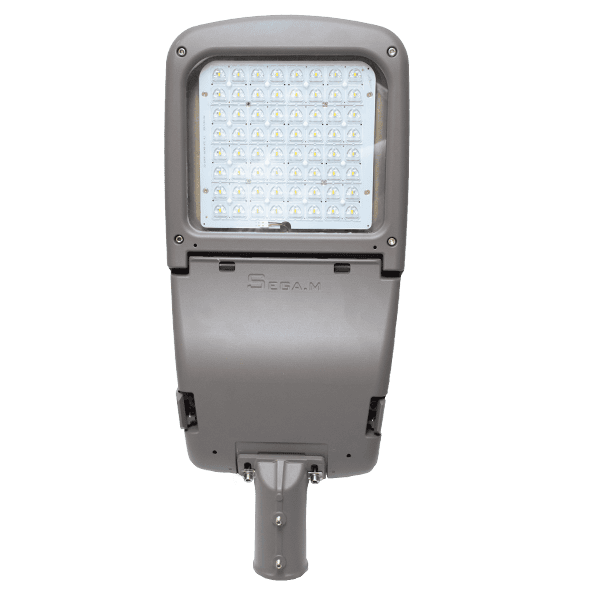

Pacific Street Light
The SEGA-M Pacific Street Light is the flagship street luminaire in the SEGA-M range — a super heavy-duty LED street light powered by SMD LEDs at 105W and 150W, rated IP65 and IK08. Designed specifically for highways, main roads, urban streets, and harsh area environments, it delivers 13,260–17,255 lm at up to 125 lm/W with CRI ≥80. Its die-cast aluminum construction with PMMA lenses and tempered glass shield combines maximum durability with exceptional photometric performance for demanding public road lighting applications.
Product Overview
Pacific Street Light The SEGA-M Pacific Street Light is a super heavy-duty high-performance LED street luminaire, IP65 and IK08 rated, powered by SMD LED light sources. Designed and created specifically for highways, main roads, streets, and harsh environments, it is also deployed in pedestrian areas, residences, parking facilities, roads, yards, and public squares. The Pacific represents the highest performance and most robust construction in the SEGA-M street lighting portfolio.
Body & Construction Die-cast aluminum construction, electrostatically coated after Phospho-Chromatation. Optical assembly: PMMA lenses with a tempered glass shield for maximum optical precision and physical protection in harsh environments. High photometric performance is a primary design objective. IP65 / IK08 full outdoor heavy-duty street rating. Dimensions: 728×327×155 mm.
LED Technology 105W: 13,260 lm, 125 lm/W, 97° beam, CRI 80, CCT 3000/4000/6000K. 150W: 17,255 lm, 113.58 lm/W, 93.2° beam, CRI 80, CCT 3000/4000/6000K.
At a Glance
Ordering Information
| Item Code | Item Description | Power (W) | Power Factor | Lumen (lm) | Efficacy (lm/W) | Beam Angle (°) | CRI | CCT (K) | Dimensions (L×W×T) |
|---|---|---|---|---|---|---|---|---|---|
| PACIFIC-SMD105260-- | PACIFIC LED STREET LUMINAIRE SMD 105W-6000K IP65 | 105 | 0.986 | 13260 | 125 | 97 | 80 | 6000 | 728×327×155 |
| PACIFIC-SMD105240-- | PACIFIC LED STREET LUMINAIRE SMD 105W-4000K IP65 | 105 | 0.986 | 13260 | 125 | 97 | 80 | 4000 | 728×327×155 |
| PACIFIC-SMD105230-- | PACIFIC LED STREET LUMINAIRE SMD 105W-3000K IP65 | 105 | 0.986 | 13260 | 125 | 97 | 80 | 3000 | 728×327×155 |
| PACIFIC-SMD150260-- | PACIFIC LED STREET LUMINAIRE SMD 150W-6000K IP65 | 150 | 0.991 | 17255 | 113.58 | 93.2 | 80 | 6000 | 728×327×155 |
| PACIFIC-SMD150240-- | PACIFIC LED STREET LUMINAIRE SMD 150W-4000K IP65 | 150 | 0.991 | 17255 | 113.58 | 93.2 | 80 | 4000 | 728×327×155 |
| PACIFIC-SMD150230-- | PACIFIC LED STREET LUMINAIRE SMD 150W-3000K IP65 | 150 | 0.991 | 17255 | 113.58 | 93.2 | 80 | 3000 | 728×327×155 |
All variants available for export orders — contact us for MOQs, lead times and custom configurations.
Technical Drawings
