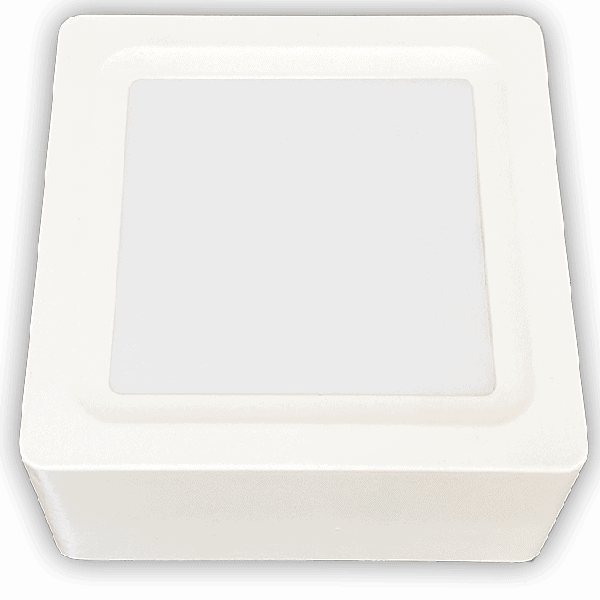

LED Tabo Down light Square surface
The SEGA-M LED Tabo Down light Square surface is a surface-mounted square LED downlight powered by SMD LEDs, combining clean modern aesthetics with professional photometric performance. Rated IP42 (IP54 Front), it is available in 12W (65×121 mm) and 24W (65×222 mm) configurations. Delivering 100 lm/W efficacy and a CRI of ≥82, it is perfectly suited to offices, hotels, residences, malls, and healthcare environments where surface mounting is preferred over recessing.
Lounge Chair
WHAT'S IN IT FOR YOU
Eames Lounge
Chair & Ottoman
LED TABO DOWN LIGHT SQUARE SURFACE
LED Tabo Down light Square surface The SEGA-M Tabo Down light Square surface is a surface-mounted square SMD LED downlight with IP42 (IP54 front) protection, designed for office spaces and general indoor lighting in commercial and residential settings. Its surface-mounted design eliminates the need for ceiling cutouts, simplifying installation in concrete slabs, false ceilings, and modular ceiling systems.
Body & Construction Featuring an electrostatically coated die-cast aluminum ring with Phospho-Chromatation treatment, the luminaire provides long-lasting corrosion protection and excellent heat management. The IP54 front rating protects the optical assembly from dust and moisture, extending product life in hospitality and healthcare applications.
LED Technology The 12W model delivers 1833 lm at 100 lm/W with a 113.8° beam angle. The 24W model produces 2403 lm at 100 lm/W with a 114.1° beam angle. CRI ≥ 82. CCT options: 3000K / 4000K / 6000K.
IP Rating
IP42 (IP54 Front)
CRI
CRI ≥ 82
Efficacy
100 lm/W
CCT Options
3000K / 4000K / 6000K
| Item Code | Item Description | Power (W) | Power Factor | Lumen (lm) | Efficacy (lm/W) | Beam Angle (°) | CRI | CCT (K) | Dimensions (H×L) |
|---|---|---|---|---|---|---|---|---|---|
| STABOM-SMD012230-- | LED TABO Square Surface Down light SMD 12W 3000K IP44 | 12 | 0.970 | 1833 | 100 | 113.8 | 82 | 3000 | 65×121 |
| STABOM-SMD012240-- | LED TABO Square Surface Down light SMD 12W 4000K IP44 | 12 | 0.970 | 1833 | 100 | 113.8 | 82 | 4000 | 65×121 |
| STABOM-SMD012260-- | LED TABO Square Surface Down light SMD 12W 6000K IP44 | 12 | 0.970 | 1833 | 100 | 113.8 | 82 | 6000 | 65×121 |
| STABOL-SMD024230-- | LED TABO Square Surface Down light SMD 24W 3000K IP44 | 24 | 0.970 | 2403 | 100 | 114.1 | 82 | 3000 | 65×222 |
| STABOL-SMD024240-- | LED TABO Square Surface Down light SMD 24W 4000K IP44 | 24 | 0.970 | 2403 | 100 | 114.1 | 82 | 4000 | 65×222 |
| STABOL-SMD024260-- | LED TABO Square Surface Down light SMD 24W 6000K IP44 | 24 | 0.970 | 2403 | 100 | 114.1 | 82 | 6000 | 65×222 |
Dimensional Drawing
Install Guide
Photometric Data
Spectrometry
Manufactured to international standards — Zhaga compatible, CE certified, IP42 rated.
