LED Back Light Matrix
The SEGA-M LED Back Light Matrix is a 595×595 mm recessed or surface-mounted SMD LED office panel, rated IP42 — an upgrade over standard IP20 office panels for environments with moderate humidity or dust exposure. At 45W it delivers 4340 lm at 100 lm/W, with a wide 114.4° beam angle and a CRI of ≥80, making it ideal for offices, shopping malls, libraries, hospitals, schools, and conference rooms.
Lounge Chair
WHAT'S IN IT FOR YOU
Eames Lounge
Chair & Ottoman
LED Back Light Matrix
LED Back Light Matrix The SEGA-M LED Back Light Matrix is a 595×595 mm office-grade LED panel, powered by SMD LEDs and rated IP42, designed for recessed and surface mounting in commercial and institutional suspended ceiling systems. The IP42 rating — superior to the standard IP20 — provides additional dust and water protection, extending product applicability to semi-exposed corridors, healthcare environments, and light industrial areas.
Body & Construction The body is press-formed sheet steel, electrostatically white-coated after Phospho-Chromatation. The optical assembly consists of a die-casted aluminium frame with an anti-glare polystyrene-milky diffuser, delivering uniform, comfortable luminance. Suitable for standard 600×600 mm suspended ceiling systems.
LED Technology 45W SMD LEDs deliver 4340 lm at 100 lm/W efficacy. Beam angle: 114.4° for wide, even illumination across the full panel. CRI ≥ 80. Dimensions: 595×595×50 mm. CCT options: 3000K / 4000K / 6000K.
IP Rating
IP42
CRI
CRI ≥ 80
Efficacy
100 lm/W
CCT Options
3000K / 4000K / 6000K
| Item Code | Item Description | Power (W) | Power Factor | Lumen (lm) | Efficacy (lm/W) | Beam Angle (°) | CRI | CCT (K) | Dimensions (D×L×T) |
|---|---|---|---|---|---|---|---|---|---|
| MATRIX-SMD045260-- | OFFICE SMD 45W-6000K IP42 | 45 | 0.970 | 4340 | 100 | 114.4 | 80 | 6000 | 595×595×50 |
| MATRIX-SMD045240-- | OFFICE SMD 45W-4000K IP42 | 45 | 0.970 | 4340 | 100 | 114.4 | 80 | 4000 | 595×595×50 |
| MATRIX-SMD045230-- | OFFICE SMD 45W-3000K IP42 | 45 | 0.970 | 4340 | 100 | 114.4 | 80 | 3000 | 595×595×50 |
Dimensional Drawing

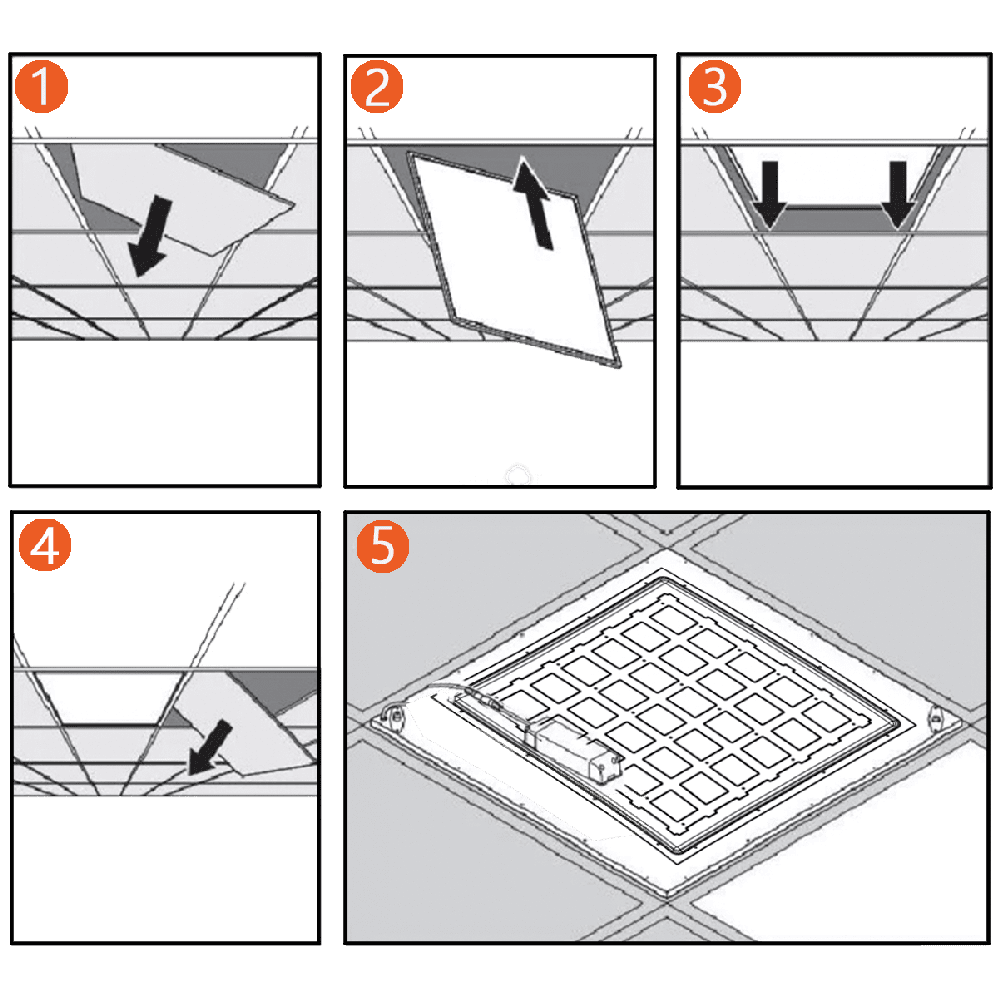

Install Guide

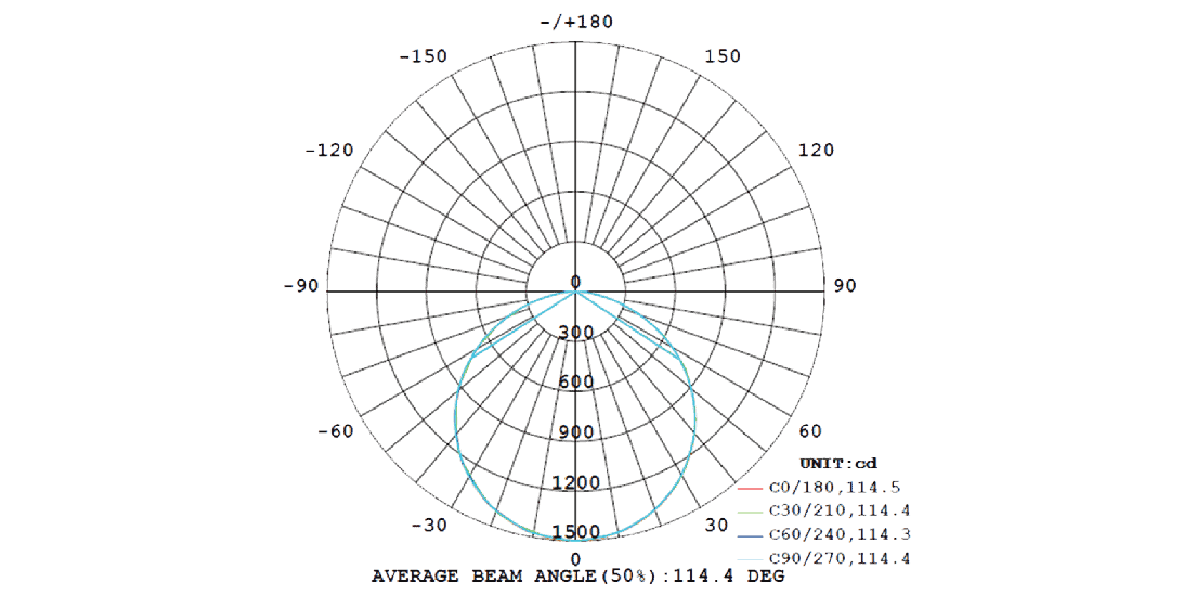

Photometric Data

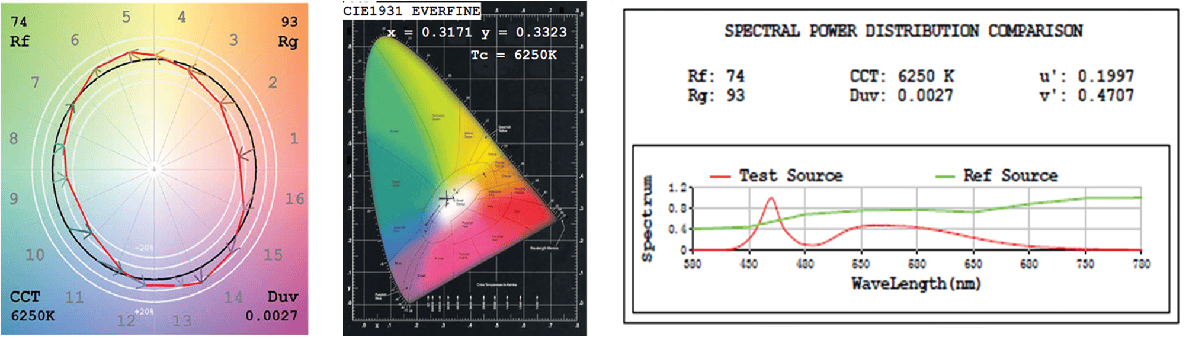

Spectrometry
Manufactured to international standards — Zhaga compatible, CE certified, IP42 rated.
