E27 Surface Mount DownLight
The SEGA-M E27 Surface Mount DownLight is a versatile cylinder-form surface-mounted luminaire accepting standard E27 LED bulbs up to 100W, rated IP20. Constructed from die-cast and extruded aluminum with a polished anodized reflector and PMMA lens, it delivers a broad 118° spread angle for general decorative and primary ceiling illumination. An ideal solution for libraries, offices, shopping malls, hospitals, schools, and conference rooms where E27 lamp compatibility and ease of maintenance are priorities.
Lounge Chair
E27 Surface Mount DownLight
E27 Surface Mount DownLight The SEGA-M E27 Surface Mount DownLight is an E27 lamp base surface-mounted cylindrical luminaire, IP20 rated, designed for decorative and primary indoor lighting across commercial and institutional applications. Its cylindrical form provides a contemporary aesthetic that complements modern and transitional interior designs.
Body & Construction Manufactured from die-cast and extruded aluminum, the body is electrostatically coated after Phospho-Chromatation for corrosion resistance and durability. The interior features a polished anodized aluminum reflector that maximises lamp output efficiency, while a PMMA lens provides glare control and protection of the E27 lamp socket. IP20 protection is standard.
LED Technology (Lamp Data) Accepts E27 bulbs up to 100W (220V). Based on a 12W LED bulb reference, the luminaire achieves a LOR of 46.5% and a spread angle of 118°, producing broad, comfortable illumination. Dimensions: Ø136 × H195 mm.
IP Rating
IP20
CRI
Dependent on E27 lamp selected
Efficacy
Dependent on E27 lamp selected
CCT Options
Dependent on E27 lamp selected
| Item Code | Item Description | Power (W) | Power Supply (V) | LOR (%) | Diffuser | Spread Angle (°) | Dimensions (Ø×H) |
|---|---|---|---|---|---|---|---|
| CRS-E27000000 | CYLINDER SURFACE E27 L196 IP20 | Up to 100 | 220 | 48.5 | Open | 118 | 136×195 |

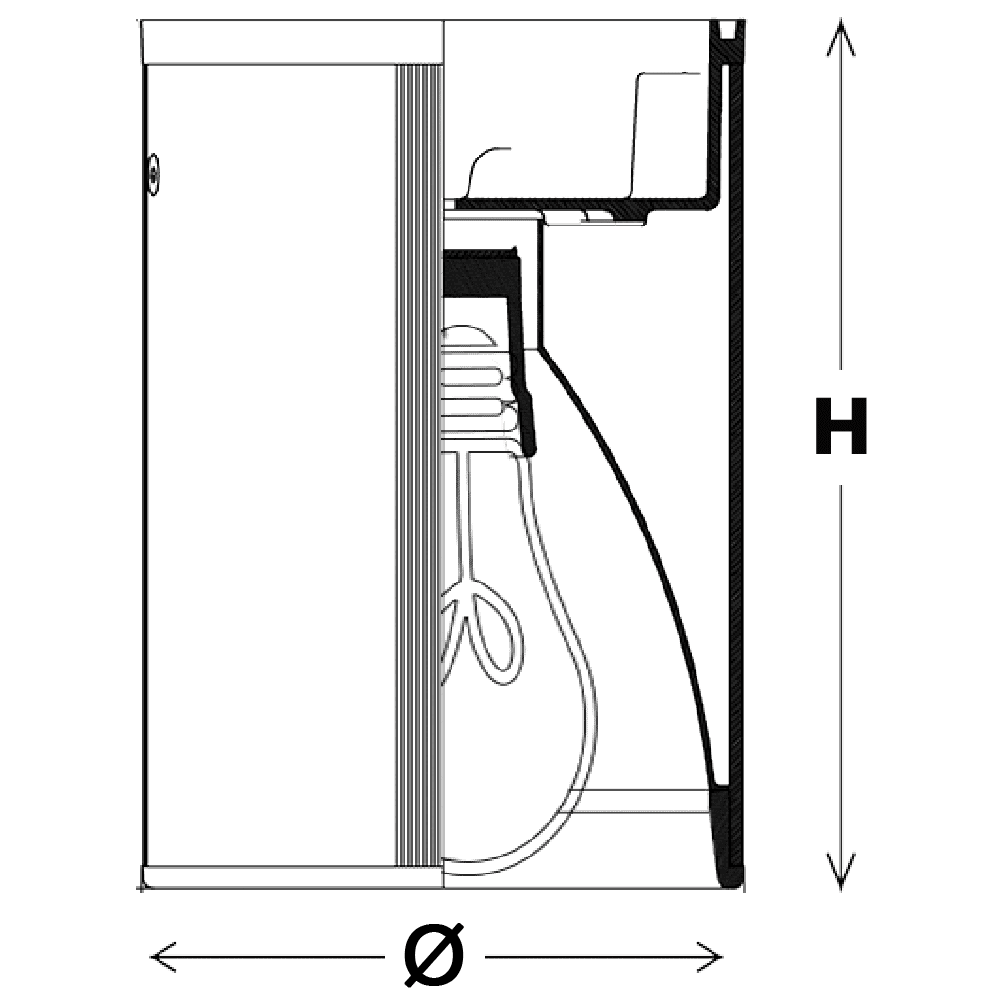

Dimensional Drawing

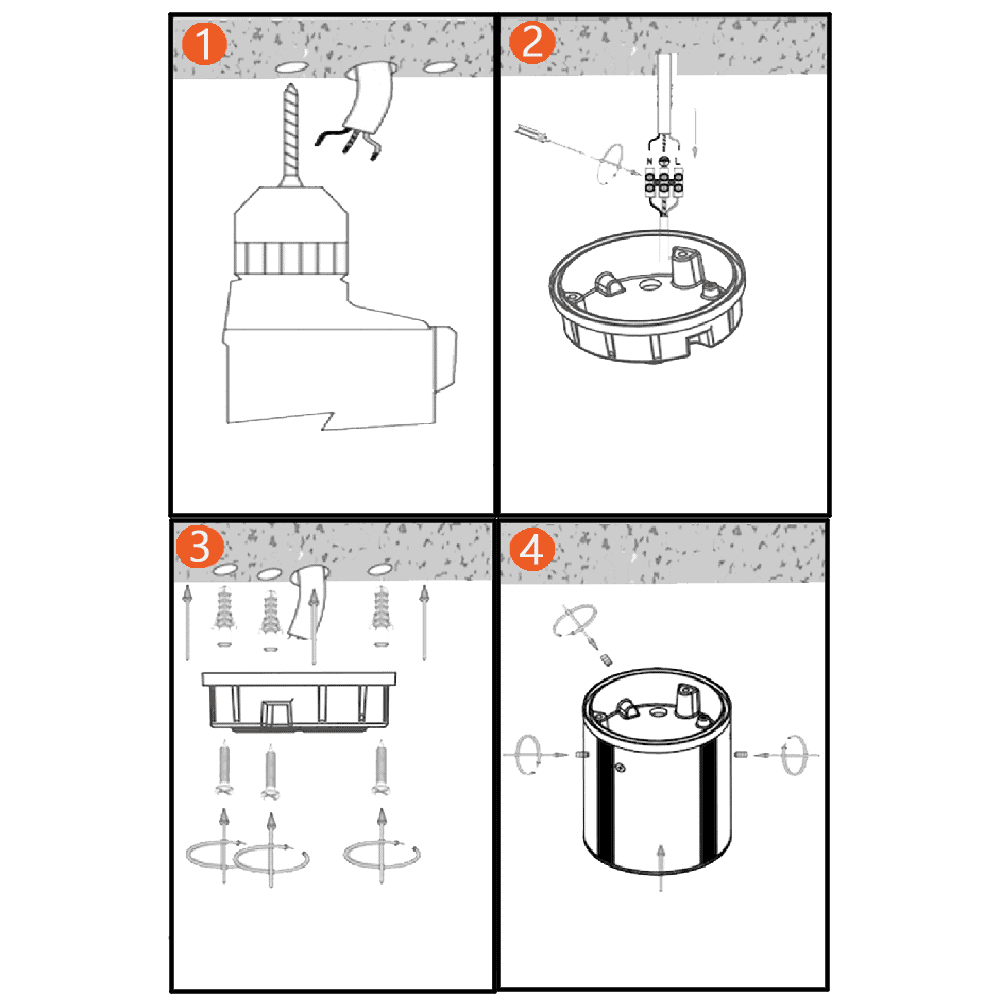

Install Guide
Photometric Data

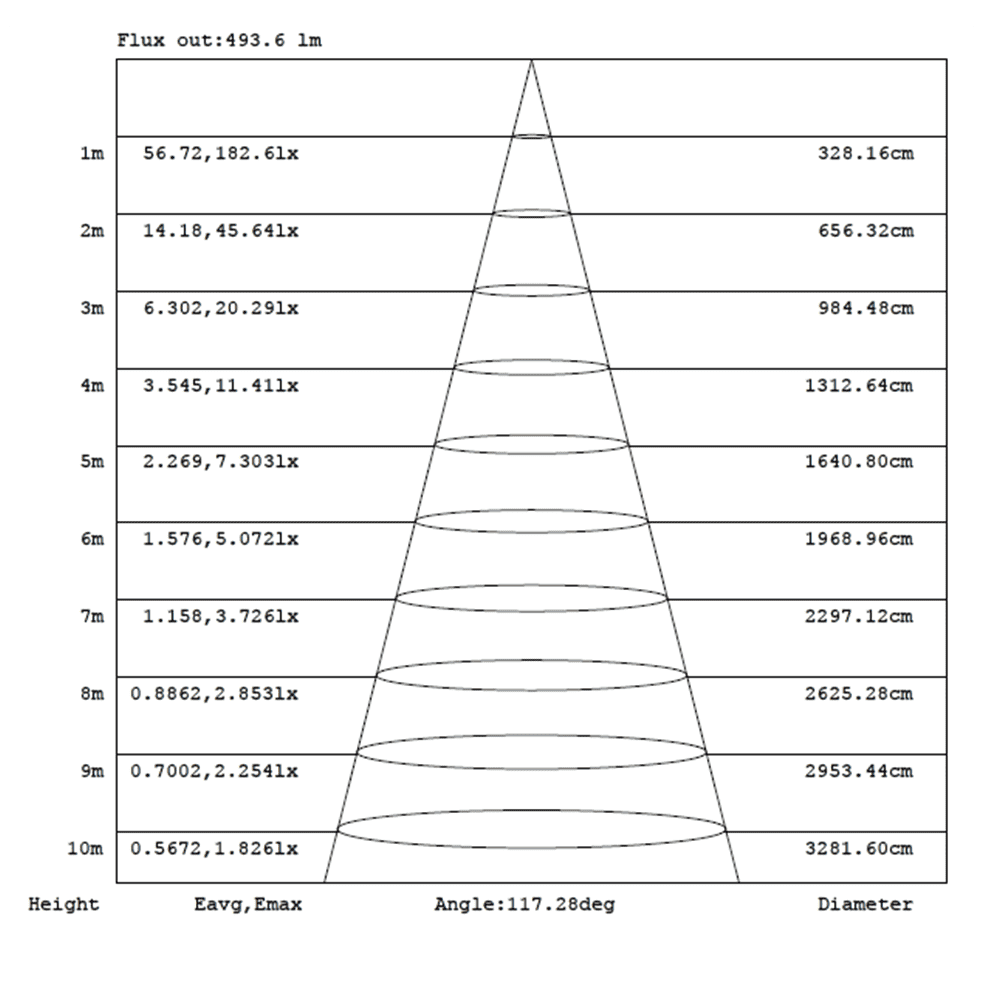

Horizontal illuminance
Manufactured to international standards — Zhaga compatible, CE certified, IP42 rated.
