Key Features

⚡

Up to 7,010A Busbar Capacity

Handles the highest main distribution demands in power stations, hospitals, airports, and large industrial plants from a single system platform.

🛡️

150 kA Short-Time Withstand Current

Industry-leading fault endurance protects personnel and infrastructure under worst-case short-circuit events.

🌍

CE, EAC, CCC & DNV GL Approved

Accepted on international tenders across Europe, GCC, Russia/CIS, China, and marine/offshore projects.

🔒

Internal Separation Form 1 to Form 4 Type 7

Select the isolation level for your safety standard — from basic to full compartmentalisation for live working.

🔧

Siemens SIVACON Technology Partner

Manufactured under Siemens licensing — full system interoperability and globally recognised design compliance.

📐

Modular Cubicle Widths 200–1,400 mm

Right-sized cubicles minimise switchroom footprint while maintaining full accessibility for maintenance.

TECHNICAL SPECIFICATIONS

Parameter	Specification
Standard	IEC 61439-2 / EN 61439-2 / VDE 0660-600-2
Internal Arc Standard	IEC/TR 61641 / DIN EN 60439-1 Suppl. 2
Rated Operating Voltage (Ue)	Up to 690 V (50 Hz)
Rated Impulse Withstand Voltage (Uimp)	8 kV
Rated Insulation Voltage (Ui)	1,000 V
Main Busbar Rated Current	Up to 7,010 A
Rated Peak Withstand Current (Ipk)	Up to 330 kA
Rated Short-Time Withstand Current (Icw)	Up to 150 kA, 1 s
Circuit Breaker Rated Currents	Up to 6,300 A
Cable / Motor Feeder Currents	Up to 630 A
Motor Feeder (MCC)	Up to 250 kW
Internal Separation (IEC 61439-2)	Form 1 to Form 4
Internal Separation (BS EN 61439-2)	Up to Form 4 Type 7
IP Degree of Protection	Ventilated: IP30/31/40/41/43 — Non-ventilated: IP54
Mechanical Strength (IEC 62262)	Up to IK10
Frame Height (without base)	2,000 mm or 2,200 mm
Base Height (optional)	100 mm or 200 mm
Cubicle Width	200, 350, 400, 600, 800, 850, 1,000, 1,200, 1,400 mm
Depth (single-front)	500, 600, 800, 1,000, 1,200 mm
Ambient Temperature (24h mean)	+35°C (-5°C to +40°C)
Frame Surface Treatment	Sendzimir-galvanised
Standard Colour	RAL 7035 light grey (DIN 43656)
Copper Busbar Treatment	Bare / silver-plated / tin-plated (options)
Approvals	CE / EAC / CCC / DNV GL / LR / DEP Shell
Technology Partner	Siemens SIVACON
Origin	Egypt — SEGA-M 30,000 m² Manufacturing Facility

VARIANTS TABLE

Design Type	Mounting	Functions	Rated Current	Cubicle Width (mm)
Circuit-Breaker Design	Fixed / Withdrawable	Incoming, Outgoing, Bus-Coupler	Up to 6,300 A	400, 600, 800, 1,000, 1,400
Universal Mounting Design	Withdrawable / Fixed / Plug-in	Cable feeders, Motor feeders (MCC)	Up to 630 A / 250 kW	600, 1,000, 1,200
Fixed-Mounted Design	Fixed with front covers	Cable feeders	Up to 630 A	1,000, 1,200
In-Line Design, Plug-in	Plug-in	Cable feeders	Up to 630 A	1,000, 1,200
In-Line Design, Fixed	Fixed	Cable feeders	Up to 630 A	600, 800, 1,000
Reactive Power Compensation	Fixed	Central PFC — unchoked up to 600 kvar, choked up to 500 kvar	—	800

Recommended Project Applications

🏭

Industrial Plants & Co-Generation

Main and sub-main MDB in steel works, rolling mills, and heavy manufacturing.

🏥

Hospitals, Airports & Critical Infrastructure

Data centres, airports, and government mega-projects requiring maximum uptime.

⚗️

Petrochemical & Pharmaceutical

High-integrity LV distribution for hazardous and critical process environments.

⛏️

Mining & Cement Industries

Robust MDB and MCC for heavy drive systems and high-cycle loads.

🚢

Marine & Offshore Platforms

DNV GL and LR approved — suitable for shipbuilding and offshore installations.

🔧

Motor Control Centres

Universal mounting MCC cubicles for large drive systems up to 250 kW.

📄

Download Technical Datasheet

Access full system specifications, cubicle configurations, international approval certificates, and dimensional drawings for SIVACON-S8 engineering and tender submission.

Downlead PDF

Materials & Construction

Designed for Long Service Life

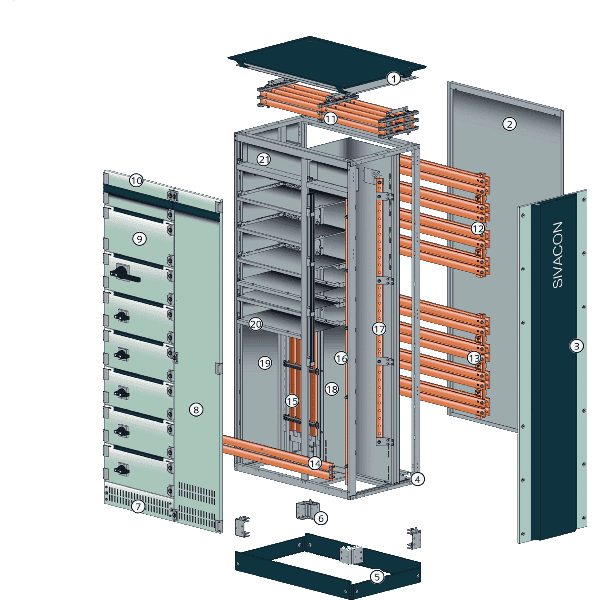

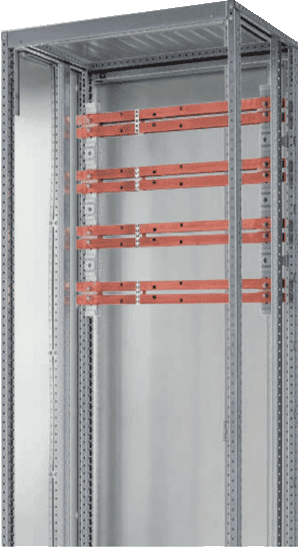

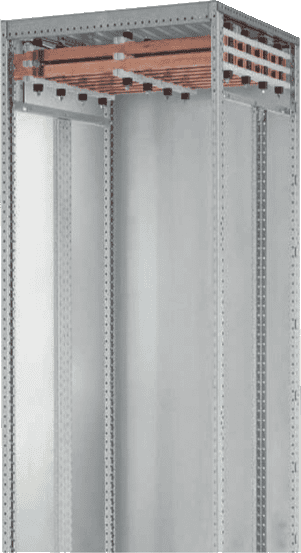

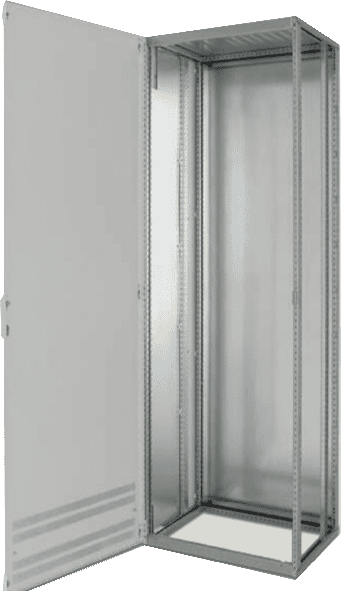

Frame components are Sendzimir-galvanised steel profile for maximum corrosion resistance and structural rigidity. Enclosure panels are Sendzimir-galvanised and powder-coated. Doors are powder-coated with the patented door-locking system for personal safety (125° / 180° opening). Copper horizontal busbars available bare, silver-plated, or tin-plated. Vertical distribution busbars run L1, L2, L3, N, and PE through cable-connection and cross-wiring compartments. All busbar positions (top, rear-top, rear-bottom) are configurable. Variable cubicle depth from 500 to 1,200 mm. Internal arc-tested design provides up to LSC2B loss-of-service continuity.

✓

Siemens SIVACON Technology Partner

✓

Siemens SIMOPRIME Technology Partner

✓

40+ Years Industry Experience

✓

30,000m² Factory in Egypt

✓

Type Tested to IEC/EN Standards
