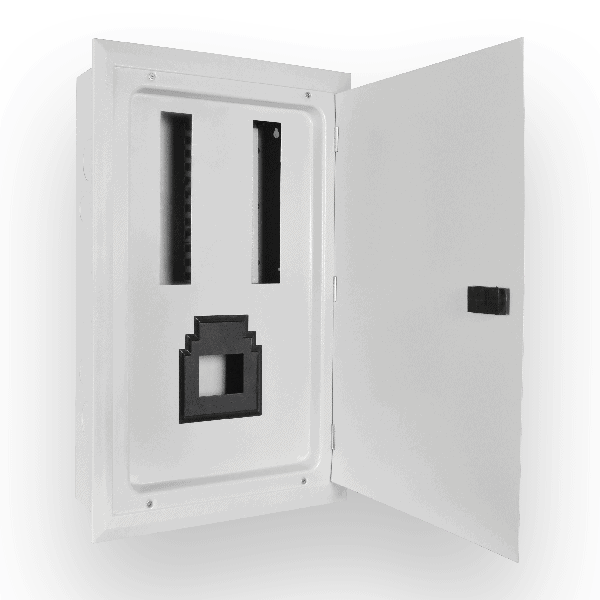

Distribution board with Type Tested MCB Fishbone Panel for industrial use.
Click to enlarge
Sega M

SEGA-M Distribution Board NSFB — Type Tested MCB Fishbone Panel (160A)

The SEGA-M Distribution Board NSFB is a type-tested, factory-assembled MCB fishbone distribution panel built for commercial, residential, and light-industrial power distribution. With a 160A busbar rating, 16 KA short-circuit capacity, and up to 60 outgoing MCB positions on a fishbone busbar layout, the MSFB scales from small residential loads to large hotel distribution floors. Enclosure is IP42-rated in RAL 7035 or RAL 7032, with incoming options ranging from Miniature 3P to 3VM-3VA-160A FD breakers. Factory-assembled and type-tested to IEC/EN standards at SEGA-M’s 30,000m² facility in Egypt.

160A
Busbar rating
16 KA
Short-circuit capacity
IP42
Protection rating
12–60
Outgoing MCB positions
IEC/EN
Type tested
✓ Type tested to IEC/EN standards
Full certification meets commercial and government tender specification requirements.
🐟 Fishbone busbar architecture
Maximises outgoing MCB positions in a compact enclosure, reducing panel footprint on every floor.
🔌 Flexible incoming options
Miniature 3P to 3VM-3VA-160A FD breakers tailor the panel to any project’s supply characteristics.
🏭 Factory pre-assembled and tested
Delivered wired and tested — cuts site installation time and reduces commissioning errors.
Request A Quote
Contact Export Team
Description
CHARLES & RAY EAMES, 1956

Lounge Chair

Amet nibh vel tristique dui id ridiculus ligula scelerisque faucibus platea a est imperdiet parturient aliquam taciti parturient.
ADD TO CART
VIEW MORE

    WHAT'S IN IT FOR YOU

    Eames Lounge
    Chair & Ottoman

    Amet nibh vel tristique dui id ridiculus ligula scelerisque faucibus platea a est imperdiet parturient aliquam taciti parturient odio a mi auctor rhoncus nec sociis natoque dui. Urna lacinia condimentum mi inceptos.
    SHOP NOW
    VIEW MORE

    Key Features

    ✅

    Type Tested to IEC/EN Standards

    Full certification meets commercial and government tender specification requirements without delay.

    ⚡

    16 KA Short-Circuit Withstand

    Adequate fault protection for commercial installations where prospective fault levels are moderate
    .
    🔌

    Fishbone Busbar Architecture

    Maximises outgoing MCB positions in a compact enclosure, reducing panel footprint on every floor.

    📊

    12 to 60 Outgoing Circuit Positions

    Scalable to any project circuit count — from small residential loads to large hotel distribution floors.





    🔧

    Flexible Incoming — Miniature to 160A FD

    Multiple incoming breaker options allow the panel to be tailored to the exact supply characteristics of each project.

    🏠

    Compact IP42 Steel Enclosure

    Suitable for indoor concealed or surface installations with a flush, professional appearance.





    TECHNICAL SPECIFICATIONS

    ParameterSpecification
    Busbar Rating160 A
    Short-Circuit Capacity16 KA / 1 sec
    Rated Voltage180–415 V
    Earth + Neutral Out Terminal10–16 mm²
    Earth + Neutral Incoming Cable25 mm²
    Outgoing MCB Positions12 / 18 / 24 / 30 / 36 / 48 / 60
    Degree of ProtectionUp to IP42
    Enclosure ColourRAL 7035 or RAL 7032 (custom on request)
    Incoming Option 1Miniature 3P — Outgoing Miniature
    Incoming Option 23VM-3VA-100A FD — Outgoing Miniature
    Incoming Option 33VM-3VA-160A FD — Outgoing Miniature
    StandardIEC / EN — Type Tested
    OriginEgypt — SEGA-M 30,000 m² Manufacturing Facility

    VARIANTS TABLE

    Art No.Incoming TypeOutgoing WaysH (mm)W (mm)D (mm)
    MSFB-MCB-12RMiniature 3P12595400115
    MSFB-MCB-18RMiniature 3P18595400115
    MSFB-MCB-24RMiniature 3P24595400115
    MSFB-MCCB-12RFD-100A12595400115
    MSFB-MCCB-18RFD-100A18595400115
    MSFB-MCCB-24RFD-100A24595400115
    MSFB-MCCB-30RFD-160A30755400115
    MSFB-MCCB-36RFD-160A36755400115

    Recommended Project Applications

    🏨

    Hotels & Hospitality Buildings

    Floor-by-floor power distribution.

    🏫

    Schools, Clinics & Public Buildings

    Multi-circuit distribution on single panel.

    🏘️

    Residential Villas & Apartment Complexes

    Per-unit and per-floor circuit distribution.

    🏭

    Light Industrial Workshops

    Service and utility circuit distribution.

    🏢

    Commercial Offices & Retail Spaces

    Final circuit protection and distribution.

    📄

    Download Technical Datasheet

    Access full specifications, busbar layout drawings, type-test certificates, and installation guidelines for engineering and tender use.
    Downlead PDF
    Materials & Construction

    Designed for Long Service Life

    Cold-rolled steel enclosure body with electrostatic polyester powder coating. Internal brass busbars on fishbone layout. Body sheet thickness provides mechanical rigidity. Enclosure accepts top or bottom cable entry. Standard finish RAL 7035 or RAL 7032. Custom RAL colours available on request.

    ✓

    Siemens SIVACON Technology Partner

    ✓

    Siemens SIMOPRIME Technology Partner

    ✓

    40+ Years Industry Experience

    ✓

    30,000m² Factory in Egypt

    ✓

    Type Tested to IEC/EN Standards

    Let’s Support Your Next Project

    Send your project requirements, rating, feeder count, and preferred enclosure specification. SEGA-M can support quotations for industrial, commercial, and infrastructure projects.

    Request an Inquiry

    Response within 24 hours for all export inquiries.
