Modular — No Special Assembly Tools
Rapid on-site configuration and future field extension without specialist tooling, reducing installation labour cost.
SEGAM Design Switchgear SG1

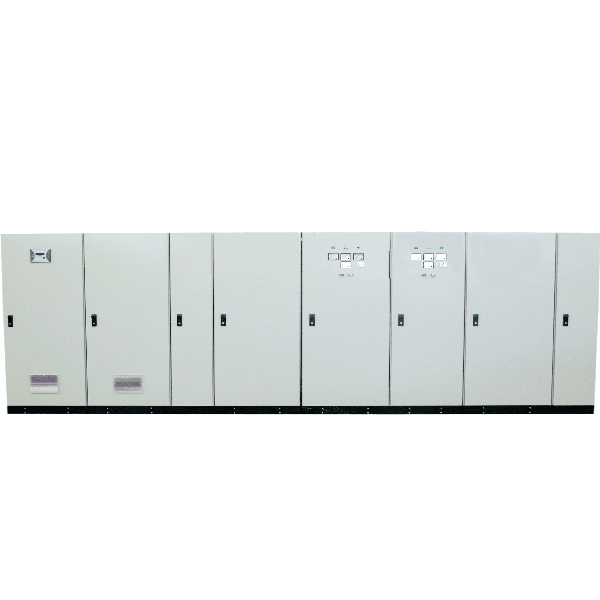

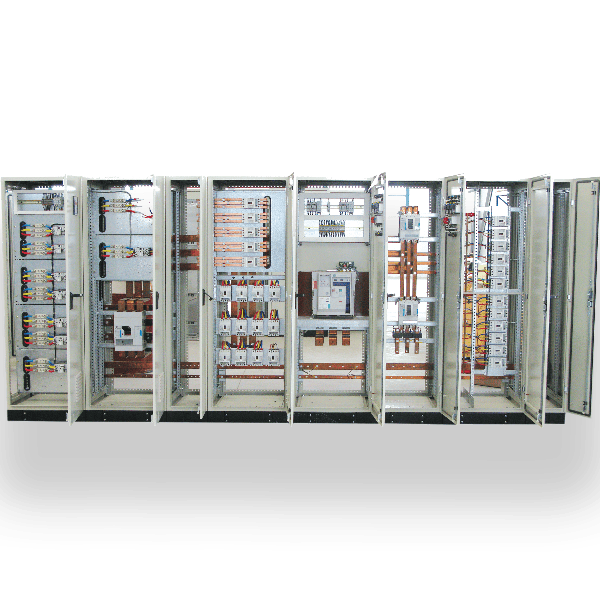

SEGA-M Switchgear SG-1 — Modular Free-Standing Steel Enclosure up to 4,000A
The SEGA-M Switchgear SG-1 is a modular, free-standing steel enclosure system designed and assembled to IEC 439-1 with all routine tests applied. Available in heights from 1,500 mm to 2,200 mm, widths from 400 mm to 1,200 mm, and depths from 500 mm to 800 mm, the SG-1 accommodates MDB, Motor Control Centre, Power Factor Correction, and ATS configurations rated up to 4,000A. IP54-rated. No special tools required for assembly, and the modular design supports future field extension. Standard finish RAL 7032 or RAL 7035 with polyester powder coating. Manufactured at SEGA-M's 30,000m² facility in Egypt.
4,000A Rated current
IP54 Protection rating
Form 4 Max internal separation
1,500–2,200 mm Height range
ISO 9001 · 14001 · 45001
Siemens Technology Partner
Made in Egypt
01
Key Features
Rated up to 4,000A
Suitable as the primary MDB or sub-distribution panel in large commercial and industrial facilities.
IP54 Degree of Protection
Sealed against dust and water spray — deployable in industrial and semi-outdoor environments.
IEC 439-1 — All Routine Tests Applied
Factory tested before delivery, providing verifiable quality assurance documentation on delivery.
Multi-Function — MDB, MCC, PFC, ATS
A single enclosure system supports all LV switchboard panel types, simplifying procurement and supplier management.
Heights 1,500–2,200 mm / Widths 400–1,200 mm
Right-sized for every project without compromise on accessibility or civil coordination.
02
Technical Specifications
StandardIEC 439-1 — All routine tests applied
Rated CurrentUp to 4,000 A
Degree of ProtectionIP54
Internal SeparationForm 1 to Form 4
Height Range1,500 mm to 2,200 mm
Width Range400 mm to 1,200 mm
Depth Range500 mm to 800 mm
Cable EntryIncoming and outgoing — top or bottom
Surface FinishPolyester powder coating — RAL 7032 or RAL 7035
Cable CompartmentOptional — can be equipped
AssemblyNo special tools required — modular construction
ExtensionDesigned for future field extension
OriginEgypt — SEGA-M 30,000 m² Manufacturing Facility
03
Variants Table
| Application | Panel Type | Notes |
|---|---|---|
| Main Distribution Board (MDB) | Free-standing switchgear | Up to 4,000A rated current |
| Sub-Main Distribution Board | Free-standing switchgear | Modular — field extendable |
| Motor Control Centre (MCC) | Free-standing switchgear | IP54 suitable for industrial floors |
| Power Factor Correction (PFC) | Free-standing switchgear | PFC capacitor bank accommodation |
| Automatic Transfer Switch (ATS) | Free-standing switchgear | 1-of-2 and 3-of-5 configurations |
| Control & Instrumentation Panel | Free-standing / wall-mount | Depth from 500 to 800 mm |
All variants available for export orders — contact us for MOQs, lead times and custom configurations.
04
Recommended Project Applications
Main & Sub-Main Distribution Boards
Automatic Transfer Switch Panels
Motor Control Centres
Control & Instrumentation Panels
Power Factor Correction Panels
Industrial Process Control
Download Technical Datasheet
Access full specifications, dimensional drawings, IEC 439-1 routine test certificates, and configuration options for engineering and tender submission.
Request Datasheet (PDF)
Delivered via WhatsApp · response within 24h
Materials & Construction
Designed for Long Service Life
Siemens SIVACON Technology Partner
Siemens SIMOPRIME Technology Partner
40+ Years Industry Experience
30,000m² Factory in Egypt
Type Tested to IEC/EN Standards
Export inquiries welcome
Let’s Support Your Next Project
Send your project requirements, rating, feeder count, and preferred enclosure specification. SEGA-M can support quotations for industrial, commercial, and infrastructure projects.
Request an InquiryResponse within 24 hours for all export inquiries.
