Compact Dimensions
Saves valuable floor and wall space, allowing for more efficient electrical room layouts.
Load Center MFB (Type Tested)

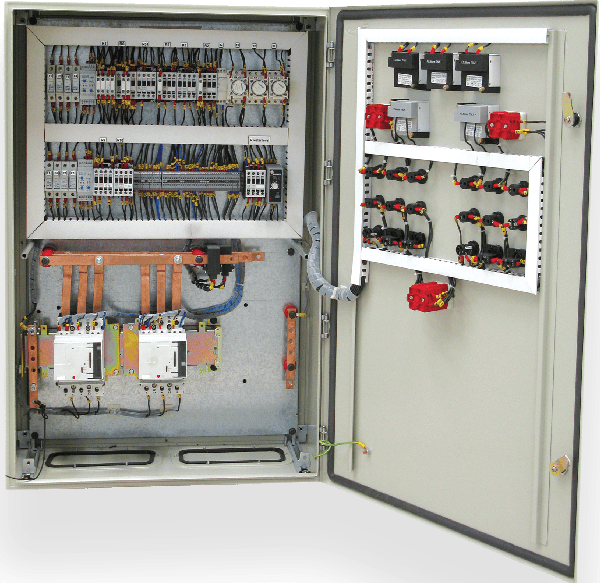

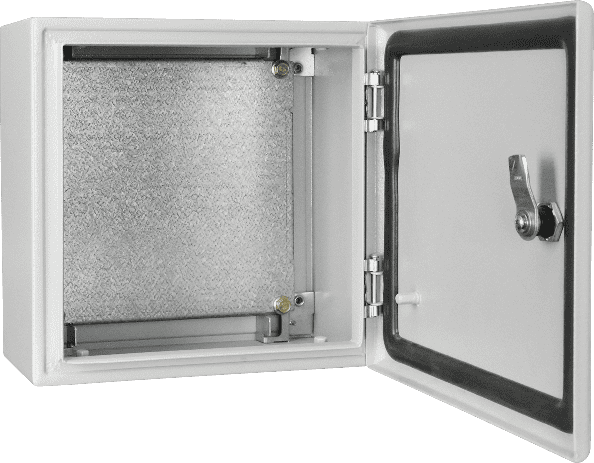

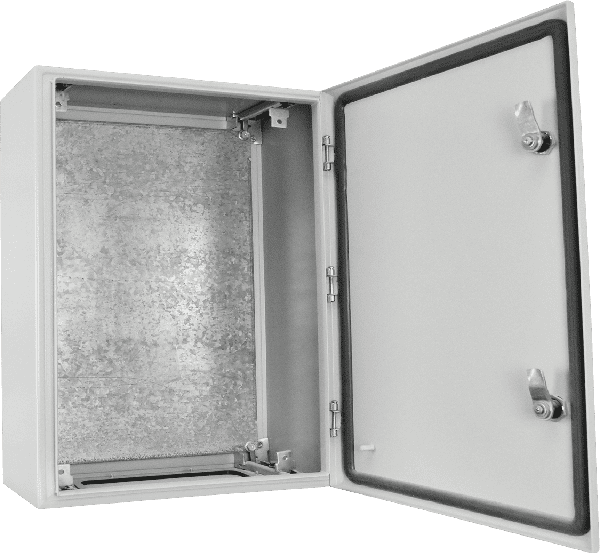

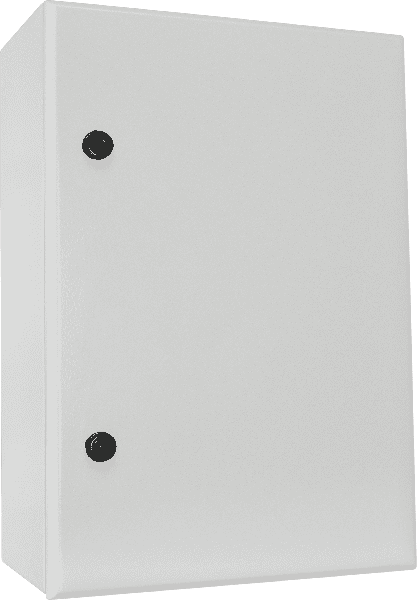

SEGA-M SGWM-1 Metal Enclosures — IP65 Rated Wall-Mounted & Recessed Panels
The SEGA-M SGWM-1 is a versatile range of metal enclosures designed for compact and space-saving electrical distribution. With a protection degree up to IP65, these enclosures are ideal for both indoor and outdoor applications, providing superior resistance to dust and water. Rated for currents up to 630A, the SGWM-1 is suitable for main and outgoing switchboards, motor starters, and load centers up to 72 lines. Its flexible design allows for wall-mounted or recessed installation, and it is available in high-quality steel or stainless steel upon request. Fully compliant with IEC 439-1 standards, it ensures reliable performance in any environment.
630A Max Rated Current
IP65 Protection Rating
72 Lines Max Load Center
IEC 439-1 Standard Compliance
ISO 9001 · 14001 · 45001
Siemens Technology Partner
Made in Egypt
01
Key Features
IP65 Protection
Protects sensitive internal components from environmental hazards, reducing maintenance needs.
Rated up to 630A
Suitable for a wide range of sub-distribution and motor control applications.
IEC 439-1 Compliant
Ensures high quality and safety standards, meeting international project requirements.
Modular Assembly
No special tools required for assembly, speeding up installation and reducing labor costs.
Stainless Steel Option
Available in stainless steel for highly corrosive environments like food processing or coastal areas.
02
Technical Specifications
StandardIEC 439-1 — All routine tests applied
Rated CurrentUp to 630A
Degree of ProtectionUp to IP65
Height Range300 mm to 1200 mm
Width Range300 mm to 1000 mm
Depth Range200 mm to 300 mm
Cable EntryTop or bottom
Surface FinishPolyester powder RAL 7032 or 7035
MaterialSteel (Stainless steel available on request)
InstallationWall mounted or recessed
OriginEgypt — SEGA-M Manufacturing Facility
03
Variants Table
| Application | Panel Type | Notes |
|---|---|---|
| Main & Outgoing Switchboards | Wall-mounted / Recessed | Up to 630A rated current |
| Motor Starter | Wall-mounted | IP65 protection |
| Load Center | Wall-mounted / Recessed | Up to 72 lines |
All variants available for export orders — contact us for MOQs, lead times and custom configurations.
04
Recommended Project Applications
Residential and commercial buildings
Outdoor electrical installations requiring IP65 protection
Industrial motor control and starters
Hospitals and laboratories (Stainless steel option)
Sub-distribution load centers
Download Technical Datasheet
Access full technical specifications, IP rating certifications, and dimension guides for the SEGA-M SGWM-1 Metal Enclosures.
Request Datasheet (PDF)
Delivered via WhatsApp · response within 24h
Materials & Construction
Designed for Long Service Life

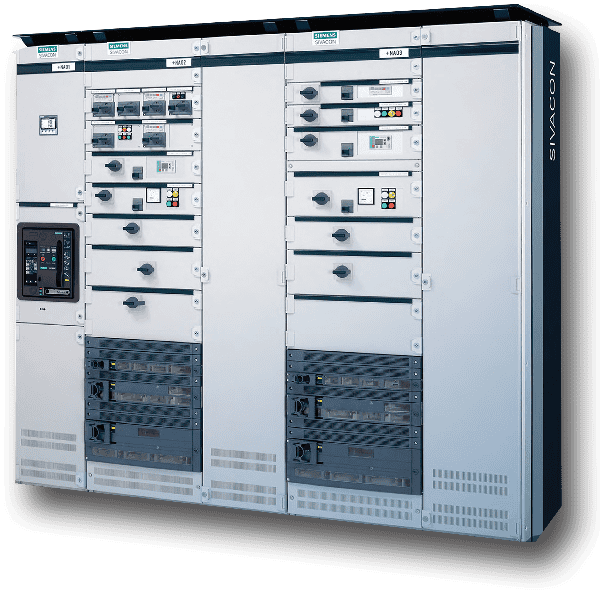

Siemens SIVACON Technology Partner
Siemens SIMOPRIME Technology Partner
40+ Years Industry Experience
30,000m² Factory in Egypt
Type Tested to IEC/EN Standards
Export inquiries welcome
Let’s Support Your Next Project
Send your project requirements, rating, feeder count, and preferred enclosure specification. SEGA-M can support quotations for industrial, commercial, and infrastructure projects.
Request an InquiryResponse within 24 hours for all export inquiries.
05
Related Products

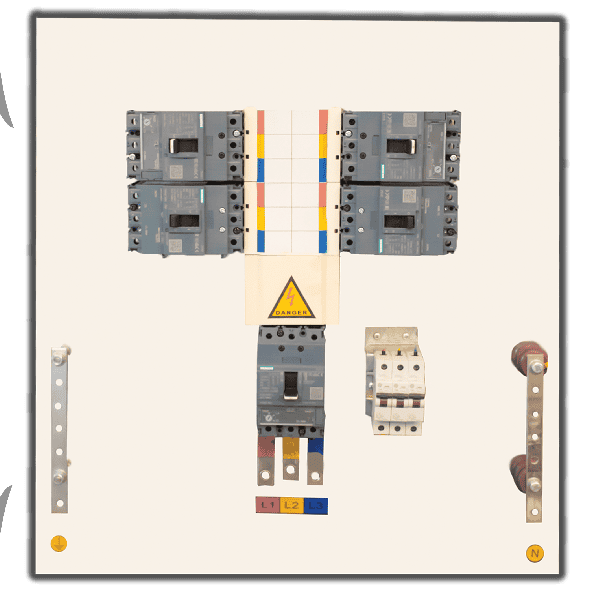

SEGA-M Load Center MFB — Type Tested MCCB Distribution Board (250A–400A)
View product
SEGA-M Metal Enclosures IP54 & IP65 — Professional Protection
View product

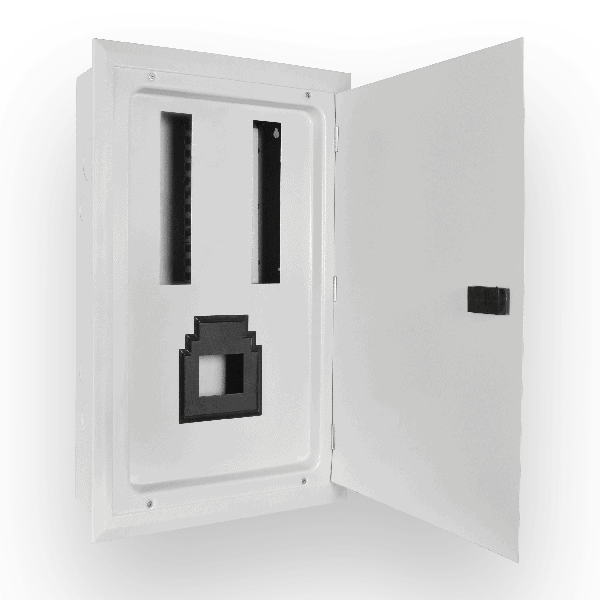

SEGA-M Distribution Board NSFB — Type Tested MCB Fishbone Panel (160A)
