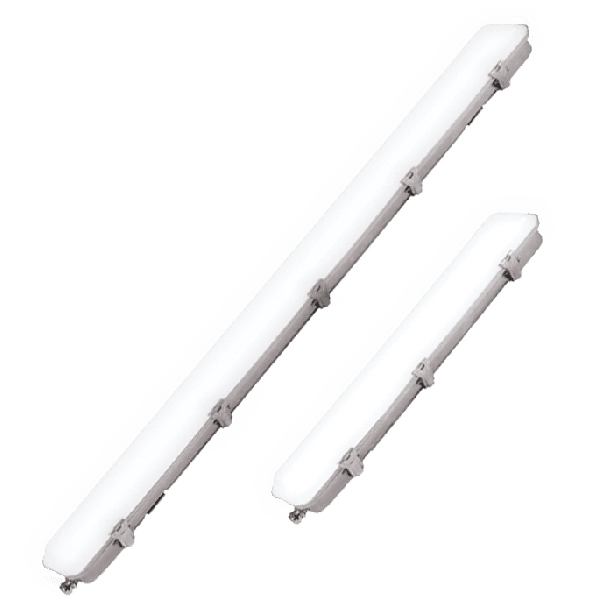

LED Weatherproof Luminaire
The SEGA-M LED Weatherproof Luminaire is a heavy-duty surface-mounted and suspended LED batten luminaire powered by LED modules, rated IP65 and IK08, designed specifically for manufacturing plants, factories, warehouses, hospitals, and schools where resistance to dust, water, and mechanical impact is essential. Available in 60 cm (18W) and 120 cm (36W) configurations, it delivers 102–104 lm/W efficacy from an ABS body with an acid and alkali-resistant polycarbonate milky diffuser.
Lounge Chair
WHAT'S IN IT FOR YOU
Eames Lounge
Chair & Ottoman
LED Weatherproof Luminaire
LED Weatherproof Luminaire The SEGA-M LED Weatherproof Luminaire is a surface-mounted and suspended industrial LED luminaire, powered by LED modules, IP65 and IK08 rated. Designed and created for manufacturing plants and factories, it is equally suited to warehouses, hospitals, schools, and parking facilities where harsh environmental conditions demand robust luminaire construction.
Body & Construction The body is ABS plastic with a milky polycarbonate diffuser that is stable against acids and alkalis — essential in industrial environments with chemical exposure. IP65 rating ensures complete dust-tight protection and resistance to water jets from any direction. IK08 mechanical impact resistance protects against accidental knocks in active industrial spaces.
LED Technology Available in 18W (600 mm, 2195 lm, 102.84 lm/W, CRI 85.9, 131.3° beam) and 36W (1200 mm, 4220 lm, 104.77 lm/W, CRI 83.1, 131° beam). CCT: 4000K (both variants). Dimensions: 600×75×85 mm / 1200×75×85 mm.
IP Rating
IP65 / IK08
CRI
CRI ≥ 83.1
Efficacy
102–104 lm/W
CCT Options
4000K
| Item Code | Item Description | Power (W) | Power Factor | Lumen (lm) | Efficacy (lm/W) | Beam Angle (°) | CRI | CCT (K) | Dimensions (L×W×H) |
|---|---|---|---|---|---|---|---|---|---|
| NTT1S-SMD018240-- | DUST PROOF LED STRIP 60CM MILKY OPAL ONE LINE SMD 18W-4000K IP65 | 18 | 0.855 | 2195 | 102.84 | 131.3 | 85.9 | 4000 | 600×75×85 |
| NTT1M-SMD036240-- | DUST PROOF LED STRIP 120CM MILKY OPAL ONE LINE SMD 36W-4000K IP65 | 36 | 0.983 | 4220 | 104.77 | 131 | 83.1 | 4000 | 1200×75×85 |
Dimensional Drawing

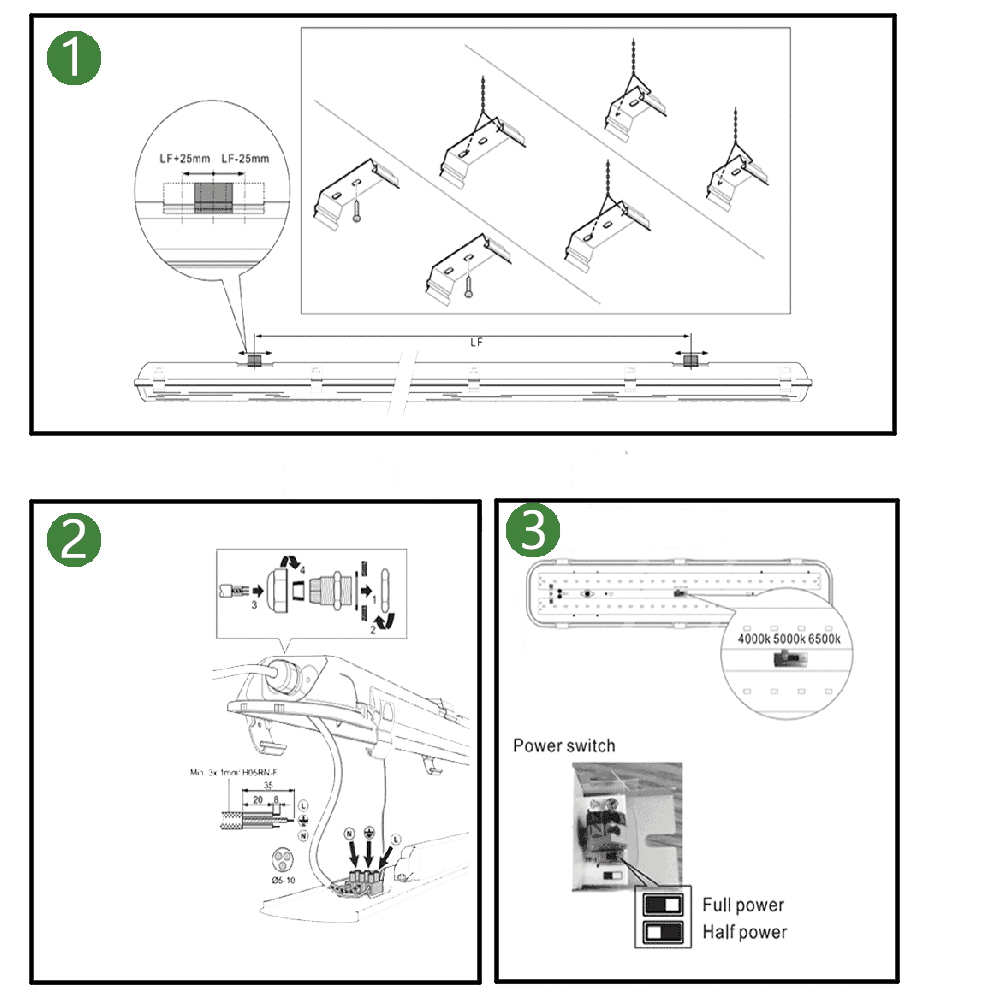

Install Guide

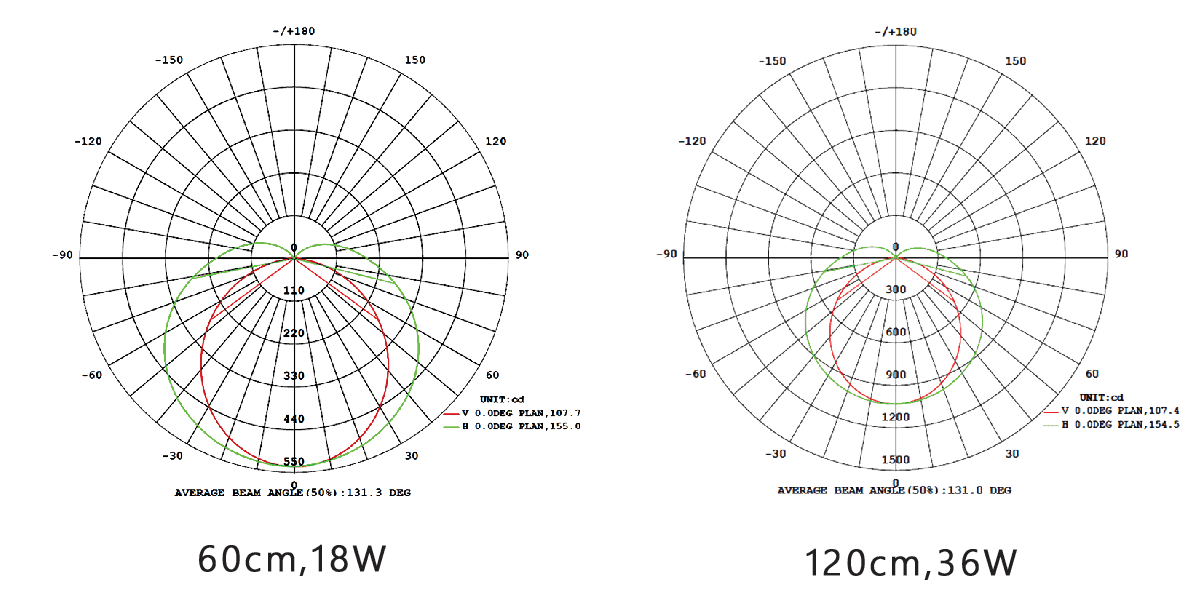

Photometric Data

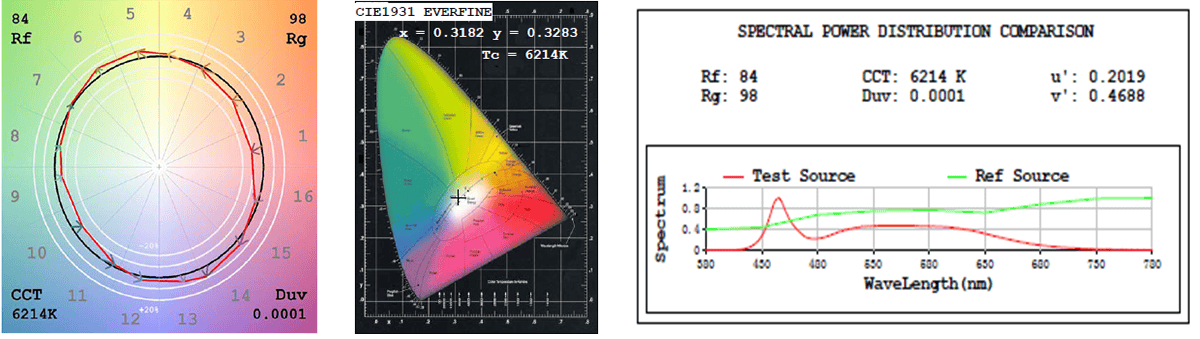

Spectrometry
Manufactured to international standards — Zhaga compatible, CE certified, IP42 rated.
