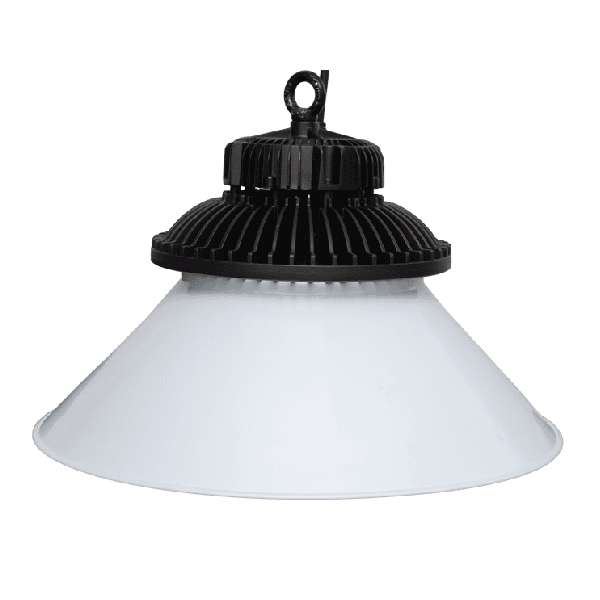

LED High Bay V2 (160W)
The SEGA-M LED High Bay V2 is a suspended 160W industrial high-bay luminaire powered by SMD LEDs, rated IP65 and IK08. Delivering 16,075 lm at 99 lm/W efficacy with a CRI of ≥84.5 and a wide 106.8° beam angle, it features a press-formed aluminum sheet reflector with a clear glass lens for exceptional photometric precision. Designed for manufacturing plants, factories, warehouses, stations, and gymnasiums with high mounting heights requiring powerful, reliable overhead illumination.
Product Overview
LED High Bay V2 — 160W The SEGA-M LED High Bay V2 is a suspended industrial high-bay luminaire, 160W, powered by SMD LED light sources, IP65 and IK08 rated. Designed for manufacturing plants and factory environments, it is also widely used in warehouses, industrial stations, and sports gymnasiums where high-ceiling environments demand powerful, energy-efficient suspended luminaires.
Body & Construction The housing is die-cast aluminum, electrostatically coated after Phospho-Chromatation for corrosion resistance and efficient heat dissipation. The reflector is an electrostatically coated press-formed aluminum sheet, maximising light output efficiency. A clear glass lens provides optical control and protects the LED module from dust and water ingress. IP65 / IK08 ratings ensure robust industrial suitability.

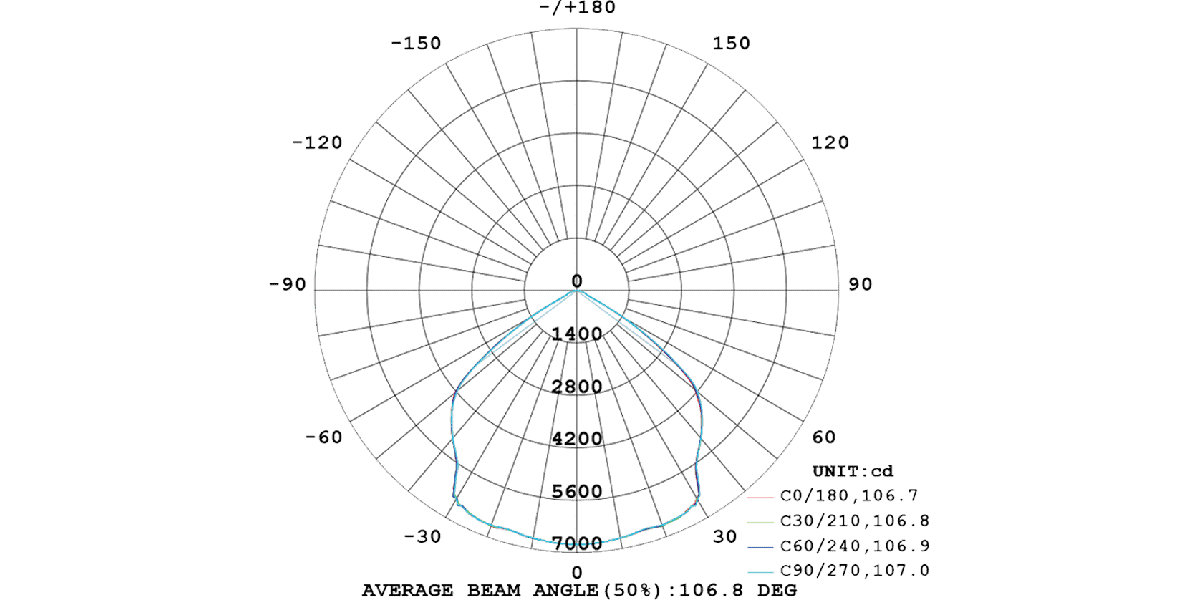

LED Technology 160W SMD LEDs delivering 16,075 lm at 99 lm/W. Beam angle: 106.8° — wide, powerful distribution for large industrial floor areas. CRI ≥ 84.5. Dimensions: 495×295×280 mm (Ø×H×Ø base). CCT options: 3000K / 4000K / 6000K.
At a Glance
Ordering Information
| Item Code | Item Description | Power (W) | Power Factor | Lumen (lm) | Efficacy (lm/W) | Beam Angle (°) | CRI | CCT (K) | Dimensions (Ø×H×Øb) |
|---|---|---|---|---|---|---|---|---|---|
| HFL-SMD160260-- | HIGHBAY WITH REFLECTOR SMD 160W-6000K IP65 | 160 | 0.977 | 16075 | 99.02 | 106.8 | 84.5 | 6000 | 495×295×280 |
| HFL-SMD160240-- | HIGHBAY WITH REFLECTOR SMD 160W-4000K IP65 | 160 | 0.977 | 16075 | 99.02 | 106.8 | 84.5 | 4000 | 495×295×280 |
| HFL-SMD160230-- | HIGHBAY WITH REFLECTOR SMD 160W-3000K IP65 | 160 | 0.977 | 16075 | 99.02 | 106.8 | 84.5 | 3000 | 495×295×280 |
All variants available for export orders — contact us for MOQs, lead times and custom configurations.
Technical Drawings
