LED High Bay V1 (100W)
LED High Bay V1 — 105W The SEGA-M LED High Bay V1 is a wall and ceiling-mounted industrial luminaire, 105W, powered by SMD LED light sources, IP65 and IK08 rated. Designed and created for workshops, garages, and factories, it is equally deployed in warehouses, stations, and gymnasiums requiring high-output, energy-efficient, industrial-grade illumination.

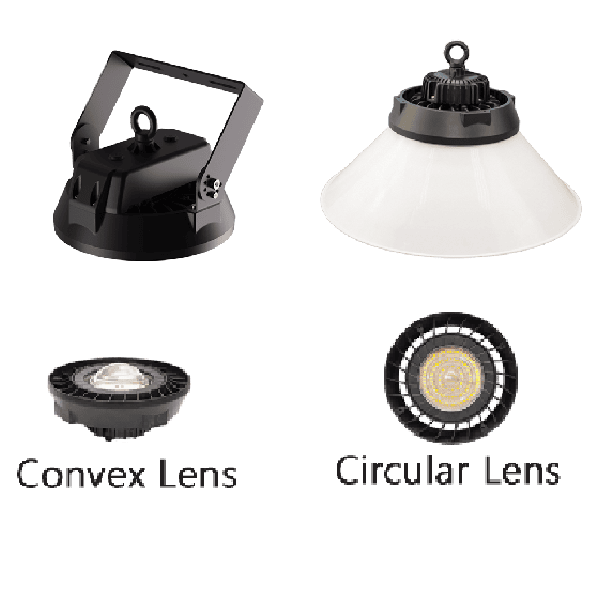

Body & Construction The housing is die-cast aluminum, coated after Phospho-Chromatation for maximum corrosion resistance and thermal performance. Three optical configurations are available: (1) with reflector and clear convex glass lens for narrow beam applications; (2) with reflector and circular PMMA lens for broader distribution; (3) lens and rectangular driver box for wall-mounted applications with an optional wall lighting accessory holder. High photometric performance is a design priority across all variants.
LED Technology 105W SMD LEDs. With reflector: 10,684 lm, 105.96 lm/W, 99.3° beam (convex); 10,746 lm, 105.20 lm/W, 80.7° beam (circular). Without reflector: 10,746 lm, 105.20 lm/W, 80.7° beam. CRI ≥ 83.9. Dimensions: 498×300 mm (with reflector) / 245×163 mm (circular lens). CCT options: 3000K / 4000K / 6000K.
IP Rating
IP65 / IK08
CRI
CRI ≥ 83.9
Efficacy
105–106 lm/W
CCT Options
3000K / 4000K / 6000K
| Item Code | Item Description | Power (W) | Power Factor | Lumen (lm) | Efficacy (lm/W) | Beam Angle (°) | CRI | CCT (K) | Dimensions (Ø×H) |
|---|---|---|---|---|---|---|---|---|---|
| HILIFER-SMD105260-- | HIGHLIFE WITH REFLECTOR AND CONVEX LENS SMD 105W-6000K IP65 | 105 | 0.988 | 10684 | 106.96 | 99.3 | 83.9 | 6000 | 498×300 |
| HILIFER-SMD105240-- | HIGHLIFE WITH REFLECTOR AND CONVEX LENS SMD 105W-4000K IP65 | 105 | 0.988 | 10684 | 106.96 | 99.3 | 83.9 | 4000 | 498×300 |
| HILIFER-SMD105230-- | HIGHLIFE WITH REFLECTOR AND CONVEX LENS SMD 105W-3000K IP65 | 105 | 0.988 | 10684 | 106.96 | 99.3 | 83.9 | 3000 | 498×300 |
| HILIFEL-SMD105260-- | HIGHLIFE WITHOUT REFLECTOR WITH CIRCULAR LENS SMD 105W-6000K IP65 | 105 | 0.988 | 10746 | 105.20 | 80.7 | 83.9 | 6000 | 245×163 |
| HILIFEL-SMD105240-- | HIGHLIFE WITHOUT REFLECTOR WITH CIRCULAR LENS SMD 105W-4000K IP65 | 105 | 0.988 | 10746 | 105.20 | 80.7 | 83.9 | 4000 | 245×163 |
| HILIFEL-SMD105230-- | HIGHLIFE WITHOUT REFLECTOR WITH CIRCULAR LENS SMD 105W-3000K IP65 | 105 | 0.988 | 10746 | 105.20 | 80.7 | 83.9 | 3000 | 245×163 |
| HILIFEB-SMD105260-- | HIGHLIFE WITH LENS AND RECTANGULAR DRIVER BOX SMD 105W-6000K IP65 | 105 | 0.988 | 10746 | 105.20 | 80.7 | 83.9 | 6000 | 245×163 |
| HILIFEB-SMD105240-- | HIGHLIFE WITH LENS AND RECTANGULAR DRIVER BOX SMD 105W-4000K IP65 | 105 | 0.988 | 10746 | 105.20 | 80.7 | 83.9 | 4000 | 245×163 |
| HILIFEB-SMD105230-- | HIGHLIFE WITH LENS AND RECTANGULAR DRIVER BOX SMD 105W-3000K IP65 | 105 | 0.988 | 10746 | 105.20 | 80.7 | 83.9 | 3000 | 245×163 |
Dimensional Drawing
Install Guide
Photometric Data
Spectrometry
Manufactured to international standards — Zhaga compatible, CE certified, IP42 rated.
