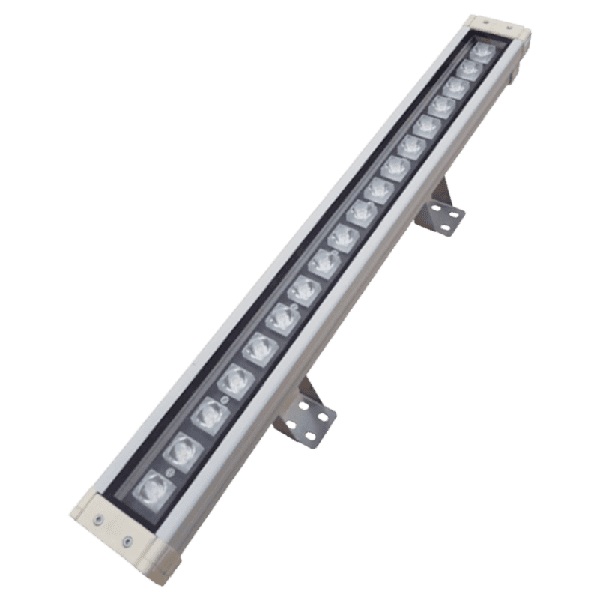

LED Wall Washer
The SEGA-M LED Wall Washer is a high-precision linear outdoor luminaire designed specifically for decorative building facade and architectural lighting. Rated IP67, it is available in 18W (395 mm) and 36W (695 mm) in fixed CCT versions (3000K/4000K/6000K) and a 36W RGB colour-changing version. Delivering 91.58 lm/W efficacy through a 10.5° precision beam angle, it is engineered for wall wash, grazing, and architectural highlight effects on outdoor building surfaces.
Product Overview

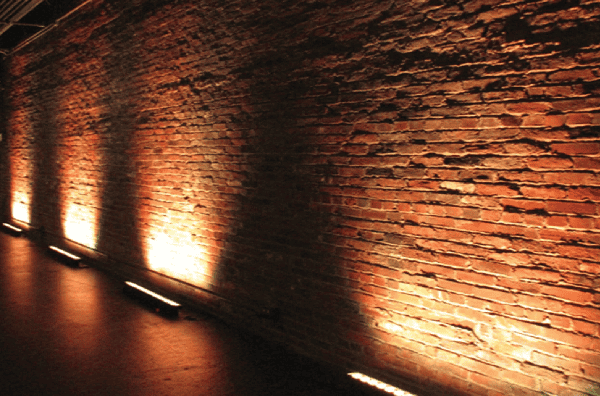

LED Wall Washer The SEGA-M LED Wall Washer is a linear wall-side LED luminaire, IP67 rated, designed for decorative outdoor building and architectural facade lighting. Its narrow 10.5° beam is engineered specifically for wall grazing and washing effects, creating powerful visual impact on textured stonework, glass curtain walls, and architectural features.
Body & Construction The body is aluminum sections, electrostatically coated after Phospho-Chromatation, with stainless steel support brackets for structural integrity in outdoor environments. The optical assembly features a PMMA lens paired with a clear glass diffuser, providing excellent beam control and optical clarity. IP67 rating ensures full immersion protection, suitable for water feature adjacency and exposed outdoor installation.
LED Technology 18W: 1225 lm, 91.58 lm/W, 10.5° beam, CRI 70, 395×85×78×90 mm. 36W: 3590 lm, 91.58 lm/W, 10.5° beam, CRI 70, 695×85×78×90 mm. RGB variant (36W): 695×85×78×90 mm. CCT options: 3000K / 4000K / 6000K (+ RGB).
At a Glance
Ordering Information
| Item Code | Item Description | Power (W) | Power Factor | Lumen (lm) | Efficacy (lm/W) | Beam Angle (°) | CRI | CCT (K) | Dimensions (L×W×H×F) |
|---|---|---|---|---|---|---|---|---|---|
| DW9-SMD018260-- | LED WALL WASHER SMD 18W-6000K L30 IP67 | 18 | 0.972 | 1225 | 91.58 | 10.5 | 70 | 6000 | 395×85×78×90 |
| DW9-SMD018240-- | LED WALL WASHER SMD 18W-4000K L30 IP67 | 18 | 0.972 | 1225 | 91.58 | 10.5 | 70 | 4000 | 395×85×78×90 |
| DW9-SMD018230-- | LED WALL WASHER SMD 18W-3000K L30 IP67 | 18 | 0.972 | 1225 | 91.58 | 10.5 | 70 | 3000 | 395×85×78×90 |
| DW18-SMD036260-- | LED WALL WASHER SMD 36W-6000K L60 IP67 | 36 | 0.972 | 3590 | 91.58 | 10.5 | 70 | 6000 | 695×85×78×90 |
| DW18-SMD036240-- | LED WALL WASHER SMD 36W-4000K L60 IP67 | 36 | 0.972 | 3590 | 91.58 | 10.5 | 70 | 4000 | 695×85×78×90 |
| DW18-SMD036230-- | LED WALL WASHER SMD 36W-3000K L60 IP67 | 36 | 0.972 | 3590 | 91.58 | 10.5 | 70 | 3000 | 695×85×78×90 |
| DW18-SMD036RGB-- | LED WALL WASHER SMD 36W RGB L60 IP67 | 36 | 0.972 | RGB | RGB | RGB | RGB | RGB | 695×85×78×90 |
All variants available for export orders — contact us for MOQs, lead times and custom configurations.

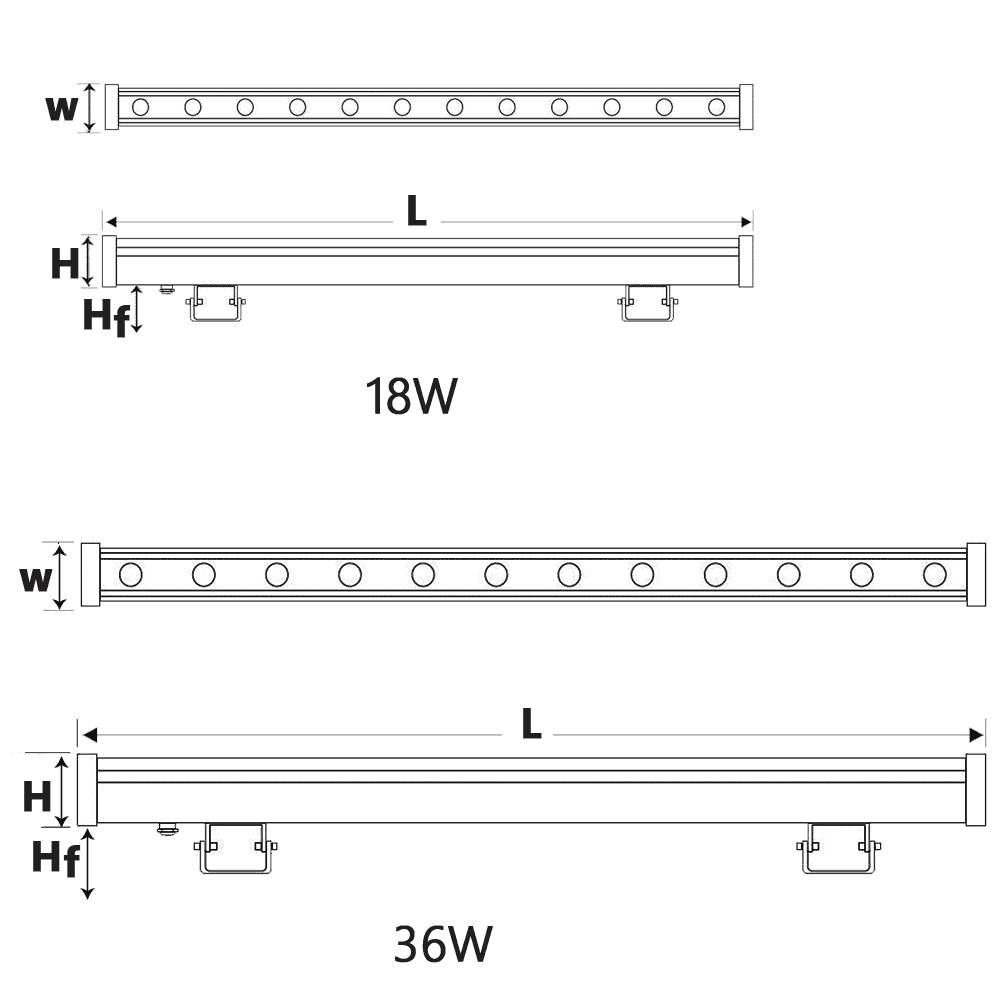

Technical Drawings
