LED Aluminum Bulk Head
The SEGA-M LED Aluminum Bulk Head is a versatile IP65-rated wall and ceiling-mounted SMD LED bulkhead luminaire available in four iconic shapes: Eyelid, Net, Wave, and Torch. Each design delivers 12W from a die-cast aluminum housing with polycarbonate-milky diffuser, producing 654–1080 lm with CRI ≥83.9. Designed for both decorative and general-purpose outdoor and semi-outdoor lighting in villas, gardens, buildings, warehouses, and corridors.
Product Overview

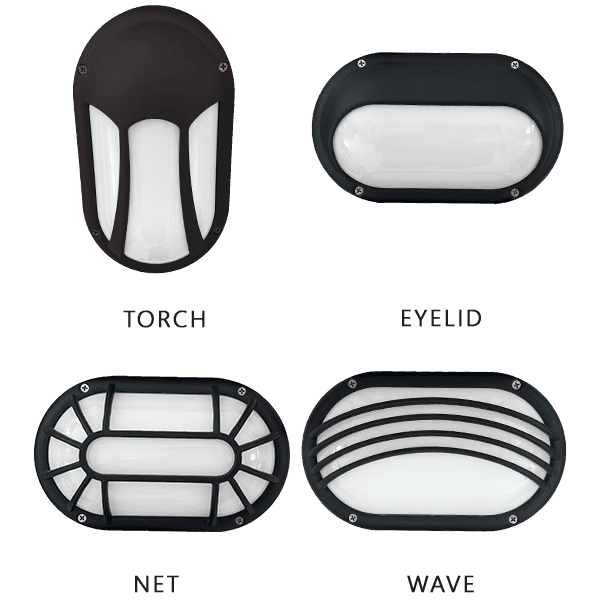

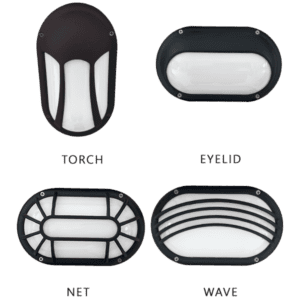

LED Aluminum Bulk Head The SEGA-M LED Aluminum Bulk Head is a wall and ceiling-mounted SMD LED luminaire, IP65 rated, designed for both decorative and general-purpose outdoor lighting. Its four form variants — Eyelid, Net, Wave, and Torch — offer distinct aesthetic characters while sharing an identical technical platform, simplifying specification and installation across mixed-design projects in villas, gardens, buildings, warehouses, and corridors.
Body & Construction Die-cast aluminum housing, electrostatically coated after Phospho-Chromatation, delivers robust corrosion resistance for outdoor installation. The polycarbonate-milky diffuser provides UV-stable, glare-reduced light distribution. IP65 rating ensures complete dust-tight and water-jet protection for all outdoor environments.

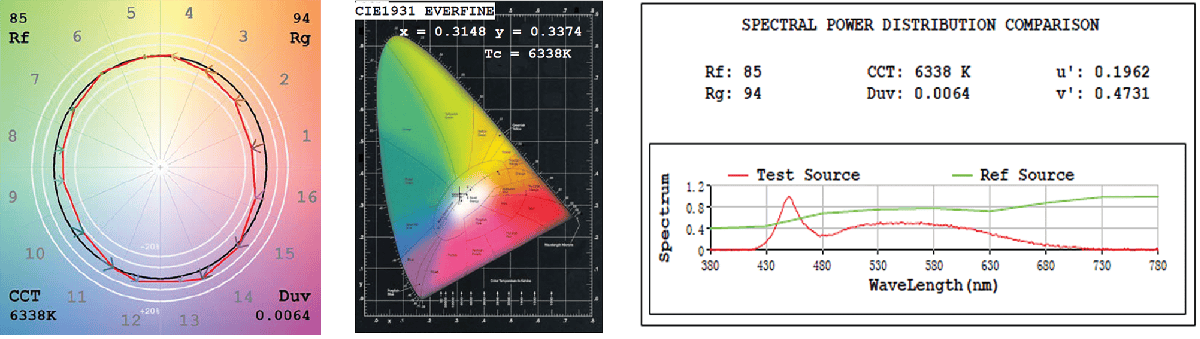

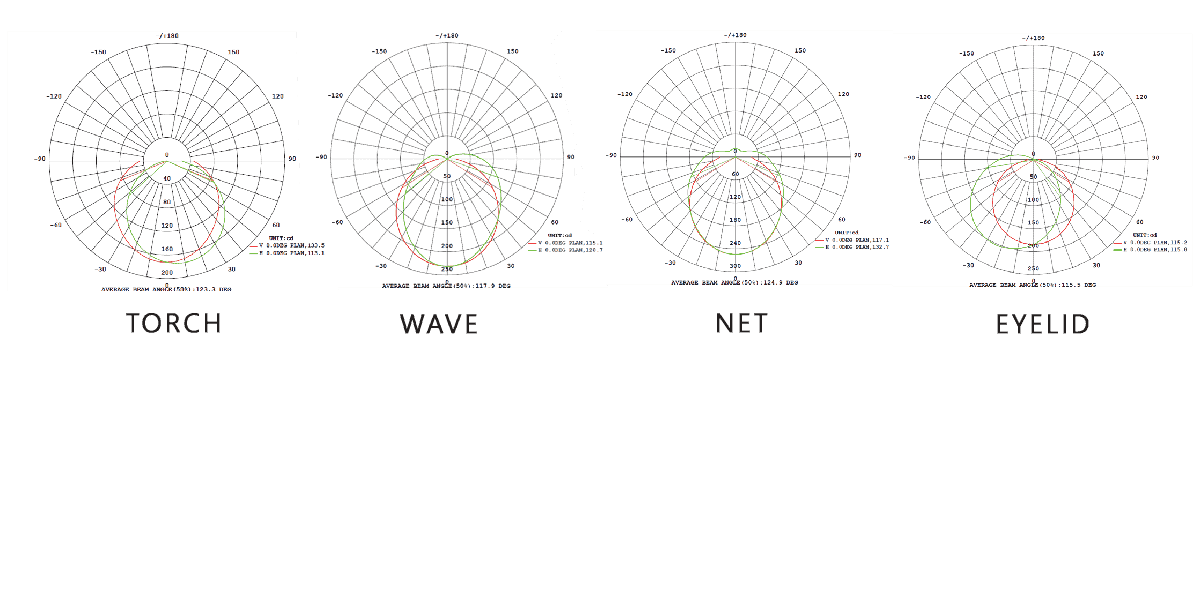

LED Technology 12W SMD LEDs. Eyelid: 653.6 lm, 50.60 lm/W, 115.5° beam, CRI 84.4. Net: 1080 lm, 83.42 lm/W, 124.9° beam, CRI 83.9. Wave: 812.3 lm, 62.54 lm/W, 117.9° beam, CRI 84. Torch: 660 lm, 50.96 lm/W, 123.4° beam, CRI 84.4. CCT options: 3000K / 4000K / 6000K. Dimensions: 222×137×80–85 mm.
At a Glance
Ordering Information
| Item Code | Item Description | Power (W) | Power Factor | Lumen (lm) | Efficacy (lm/W) | Beam Angle (°) | CRI | CCT (K) | Dimensions (L×W×H) |
|---|---|---|---|---|---|---|---|---|---|
| KTLA02H-SMD012260-- | LED ALUMINUM BULK HEAD EYELID SMD 12W-6000K IP65 | 12 | 0.970 | 653.6 | 50.60 | 115.5 | 84.4 | 6000 | 222×137×80 |
| KTLA02H-SMD012240-- | LED ALUMINUM BULK HEAD EYELID SMD 12W-4000K IP65 | 12 | 0.970 | 653.6 | 50.60 | 115.5 | 84.4 | 4000 | 222×137×80 |
| KTLA02H-SMD012230-- | LED ALUMINUM BULK HEAD EYELID SMD 12W-3000K IP65 | 12 | 0.970 | 653.6 | 50.60 | 115.5 | 84.4 | 3000 | 222×137×80 |
| KTLA04H-SMD012260-- | LED ALUMINUM BULK HEAD NET SMD 12W-6000K IP65 | 12 | 0.970 | 1080 | 83.42 | 124.9 | 83.9 | 6000 | 222×137×83 |
| KTLA04H-SMD012240-- | LED ALUMINUM BULK HEAD NET SMD 12W-4000K IP65 | 12 | 0.970 | 1080 | 83.42 | 124.9 | 83.9 | 4000 | 222×137×83 |
| KTLA04H-SMD012230-- | LED ALUMINUM BULK HEAD NET SMD 12W-3000K IP65 | 12 | 0.970 | 1080 | 83.42 | 124.9 | 83.9 | 3000 | 222×137×83 |
| KTLA05H-SMD012260-- | LED ALUMINUM BULK HEAD WAVE SMD 12W-6000K IP65 | 12 | 0.970 | 812.3 | 62.54 | 117.9 | 84 | 6000 | 222×137×85 |
| KTLA05H-SMD012240-- | LED ALUMINUM BULK HEAD WAVE SMD 12W-4000K IP65 | 12 | 0.970 | 812.3 | 62.54 | 117.9 | 84 | 4000 | 222×137×85 |
| KTLA05H-SMD012230-- | LED ALUMINUM BULK HEAD WAVE SMD 12W-3000K IP65 | 12 | 0.970 | 812.3 | 62.54 | 117.9 | 84 | 3000 | 222×137×85 |
| KTLA06V-SMD012260-- | LED ALUMINUM BULK HEAD TORCH SMD 12W-6000K IP65 | 12 | 0.970 | 660 | 50.96 | 123.4 | 84.4 | 6000 | 222×137×83 |
| KTLA06V-SMD012240-- | LED ALUMINUM BULK HEAD TORCH SMD 12W-4000K IP65 | 12 | 0.970 | 660 | 50.96 | 123.4 | 84.4 | 4000 | 222×137×83 |
| KTLA06V-SMD012230-- | LED ALUMINUM BULK HEAD TORCH SMD 12W-3000K IP65 | 12 | 0.970 | 660 | 50.96 | 123.4 | 84.4 | 3000 | 222×137×83 |
All variants available for export orders — contact us for MOQs, lead times and custom configurations.
Technical Drawings
