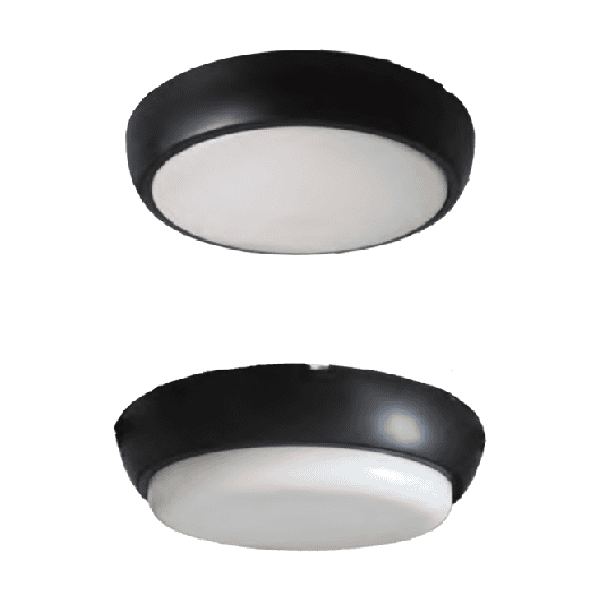

LED Plastic Plafonnier
The SEGA-M LED Plastic Plafonnier is a decorative wall and ceiling-mounted LED plafonnier powered by 12W SMD LEDs, rated IP54, available in curved and flat body styles in both black and white frames. Delivering up to 893 lm at 80.67 lm/W with a CRI of ≥86 and a broad beam of 113.2°–116.4°, it is engineered for decorative and general outdoor lighting on villas, gardens, building exteriors, corridors, and walls.
Lounge Chair
WHAT'S IN IT FOR YOU
Eames Lounge
Chair & Ottoman
LED Plastic Plafonnier
LED Plastic Plafonnier The SEGA-M LED Plastic Plafonnier is a decorative wall and ceiling-mounted LED luminaire, IP54 rated, powered by SMD LEDs, designed for decorative and main outdoor lighting on walls, ceilings, and exterior building surfaces. Its plafonnier form is a classic choice for villas, residential gardens, building façades, and corridor ceilings, offering a balance of aesthetic appeal and practical illumination.
Body & Construction The body is ABS (UV-stable), available in two frame colours — black (RBCB) and white (RBCW) — and two body shapes: curved (RBCB-C / RBCW-C) and flat (RBFB / RBFW). The diffuser is a polycarbonate circular-shaped Milky cover, providing uniform, glare-reduced light distribution and long-term UV stability for outdoor applications. IP54 protection against dust and water jets.
LED Technology 12W SMD LEDs. Curved body: 893.45 lm, 80.67 lm/W, 113.2° beam. Flat body: 864.68 lm, 77.57 lm/W, 116.4° beam. CRI ≥ 86. Dimensions: 270×220×60 mm (curved) / 270×220×70 mm (flat). CCT options: 3000K / 4000K / 6000K.
IP Rating
IP54
CRI
CRI ≥ 86
Efficacy
up to 80.67 lm/W
CCT Options
3000K / 4000K / 6000K
| Item Code | Item Description | Power (W) | Power Factor | Lumen (lm) | Efficacy (lm/W) | Beam Angle (°) | CRI | CCT (K) | Dimensions (Ø×B×H) |
|---|---|---|---|---|---|---|---|---|---|
| RBCB-SMD012230-- | LED PLASTIC BULK HEAD SMD 12W 3000K IP54 BLACK FRAME CURVED | 12 | 0.952 | 892.15 | 80.67 | 113.2 | 86 | 3000 | 270×220×60 |
| RBCW-SMD012230-- | LED PLASTIC BULK HEAD SMD 12W 3000K IP54 WHITE FRAME CURVED | 12 | 0.952 | 893.45 | 80.67 | 113.2 | 86 | 3000 | 270×220×60 |
| RBFB-SMD012230-- | LED PLASTIC BULK HEAD SMD 12W 3000K IP54 BLACK FRAME FLAT | 12 | 0.952 | 864.68 | 77.57 | 116.4 | 86 | 3000 | 270×220×70 |
| RBFW-SMD012230-- | LED PLASTIC BULK HEAD SMD 12W 3000K IP54 WHITE BODY FLAT | 12 | 0.952 | 864.68 | 77.57 | 116.4 | 86 | 3000 | 270×220×70 |
| RBCB-SMD012240-- | LED PLASTIC BULK HEAD SMD 12W 4000K IP54 BLACK FRAME CURVED | 12 | 0.952 | 893.45 | 80.67 | 113.2 | 86 | 4000 | 270×220×60 |
| RBCW-SMD012240-- | LED PLASTIC BULK HEAD SMD 12W 4000K IP54 WHITE FRAME CURVED | 12 | 0.952 | 893.45 | 80.67 | 113.2 | 86 | 4000 | 270×220×60 |
| RBFB-SMD012240-- | LED PLASTIC BULK HEAD SMD 12W 4000K IP54 BLACK FRAME FLAT | 12 | 0.952 | 864.68 | 77.57 | 113.2 | 86 | 4000 | 270×220×70 |
| RBFW-SMD012240-- | LED PLASTIC BULK HEAD SMD 12W 4000K IP54 WHITE BODY FLAT | 12 | 0.952 | 864.68 | 77.57 | 113.2 | 86 | 4000 | 270×220×70 |
| RBCB-SMD012260-- | LED PLASTIC BULK HEAD SMD 12W 6000K IP54 BLACK FRAME CURVED | 12 | 0.952 | 893.45 | 80.67 | 116.4 | 86 | 6000 | 270×220×60 |
| RBCW-SMD012260-- | LED PLASTIC BULK HEAD SMD 12W 6000K IP54 WHITE FRAME CURVED | 12 | 0.952 | 893.45 | 80.67 | 116.4 | 86 | 6000 | 270×220×60 |
| RBFB-SMD012260-- | LED PLASTIC BULK HEAD SMD 12W 6000K IP54 BLACK FRAME FLAT | 12 | 0.952 | 864.68 | 77.57 | 113.2 | 86 | 6000 | 270×220×70 |
| RBFW-SMD012260-- | LED PLASTIC BULK HEAD SMD 12W 6000K IP54 WHITE BODY FLAT | 12 | 0.952 | 864.68 | 77.57 | 113.2 | 86 | 6000 | 270×220×70 |
Dimensional Drawing

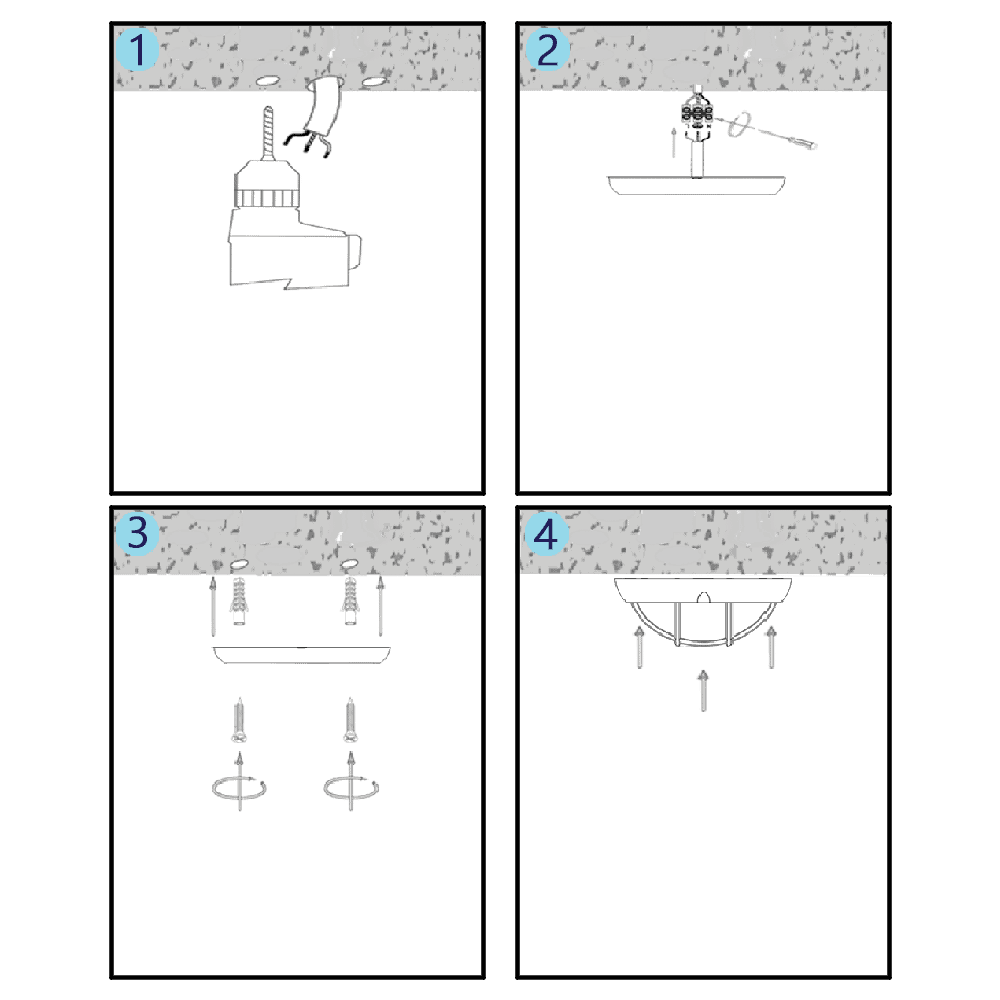

Install Guide
Photometric Data

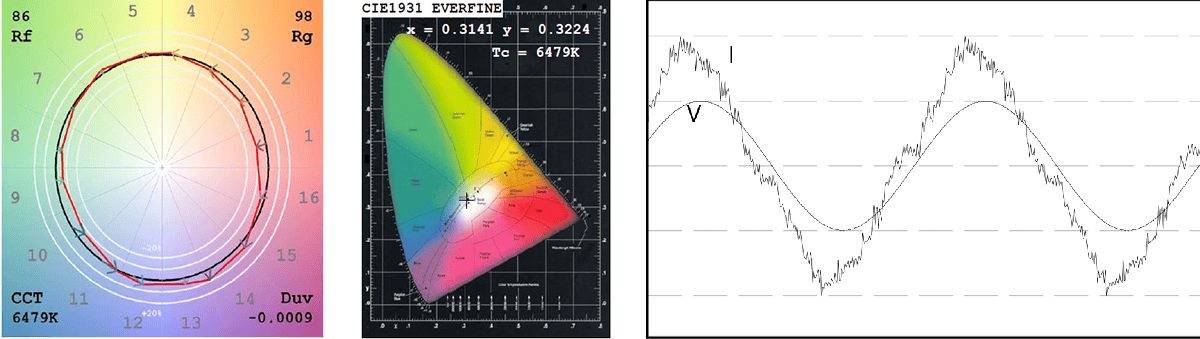

Spectrometry
Manufactured to international standards — Zhaga compatible, CE certified, IP42 rated.
