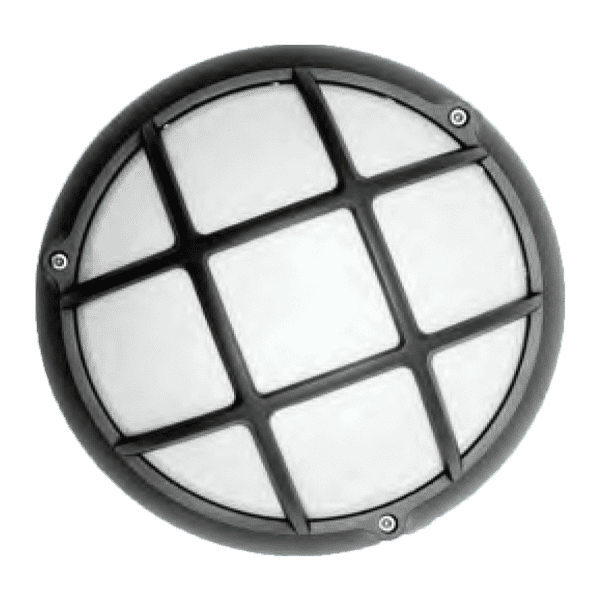

E27 Shielded Aluminum Bulkhead Luminaire
The SEGA-M E27 Shielded Aluminum Bulkhead Luminaire is a heavy-duty anti-vandal IP65 outdoor bulkhead accepting E27 bulbs up to 100W. Its hemispherical form and material specification — die-cast aluminum with polycarbonate-milky diffuser — are engineered to meet anti-vandal requirements, making it the ideal choice for secure outdoor areas, corridors, building exteriors, villas, gardens, and warehouses. A single SKU covers the full application range.
Lounge Chair
WHAT'S IN IT FOR YOU
Eames Lounge
Chair & Ottoman
E27 Shielded Aluminum Bulkhead Luminaire
E27 Shielded Aluminum Bulkhead Luminaire The SEGA-M E27 Shielded Aluminum Bulkhead Luminaire is a heavy-duty E27 outdoor bulkhead, IP65 rated, designed for both decorative and general-purpose lighting with a focus on anti-vandal durability. Its hemispherical form and robust material specification make it suitable for secured outdoor environments — warehouses, building corridors, villas, and gardens — where luminaire integrity under mechanical stress is a priority.
Body & Construction Die-cast aluminum housing, electrostatically coated after Phospho-Chromatation, provides full corrosion resistance. The polycarbonate-milky diffuser is UV-stable and impact-resistant. Material selection is specifically appropriate for anti-vandal requirements. IP65 full outdoor protection. Dimensions: Ø270×70 mm.
LED Technology (Lamp Data) E27 base, UP TO 100W, 220V. LOR: 17.3%. Spread angle: 120°. Based on 12W LED bulb reference.
IP Rating
IP65
CRI
Dependent on E27 lamp selected
Efficacy
Dependent on E27 lamp selected
CCT Options
Dependent on E27 lamp selected
| Item Code | Item Description | Power (W) | Power Supply (V) | LOR (%) | Diffuser | Spread Angle (°) | Dimensions (Ø×H) |
|---|---|---|---|---|---|---|---|
| RBN2L-E270000000-- | ALUMINUM BULKHEAD (Hemispherical) | Up to 100 | 220 | 17.3 | Polycarbonate - Milky | 120 | 270×70 |
Dimensional Drawing

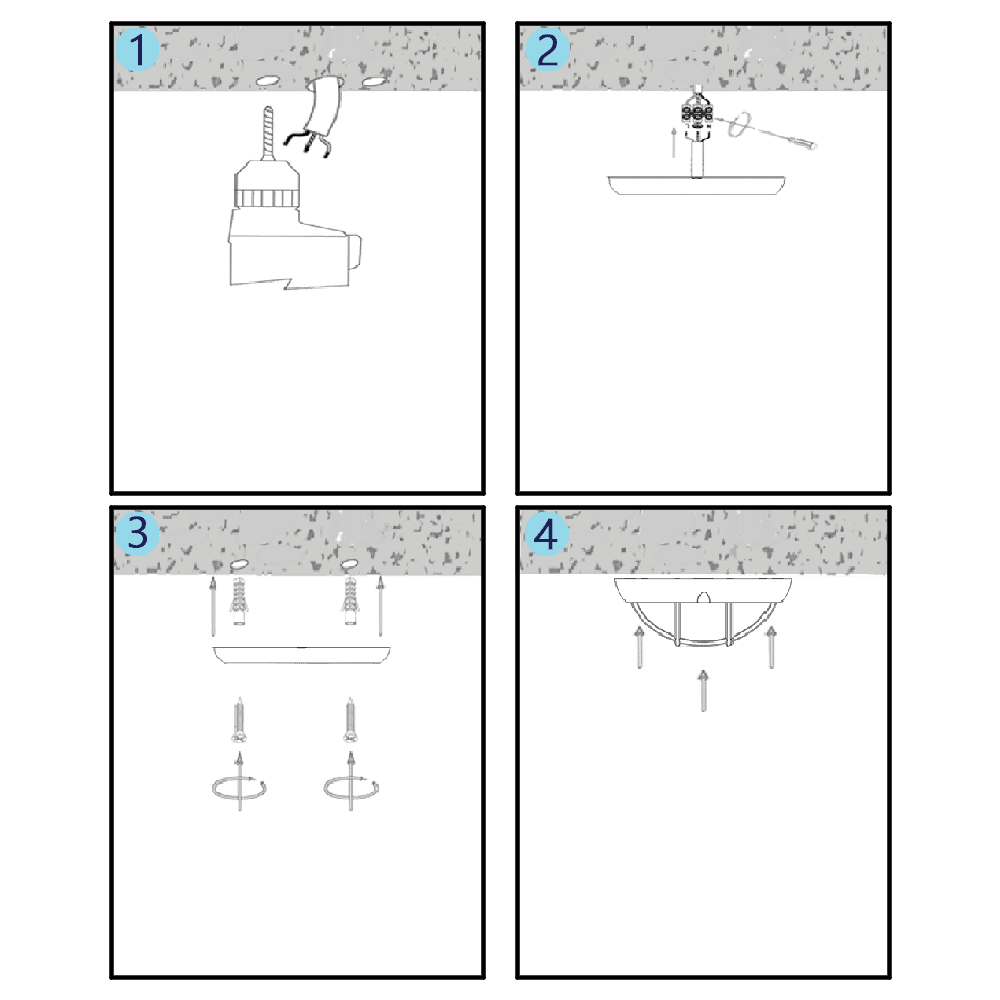

Install Guide
Photometric Data

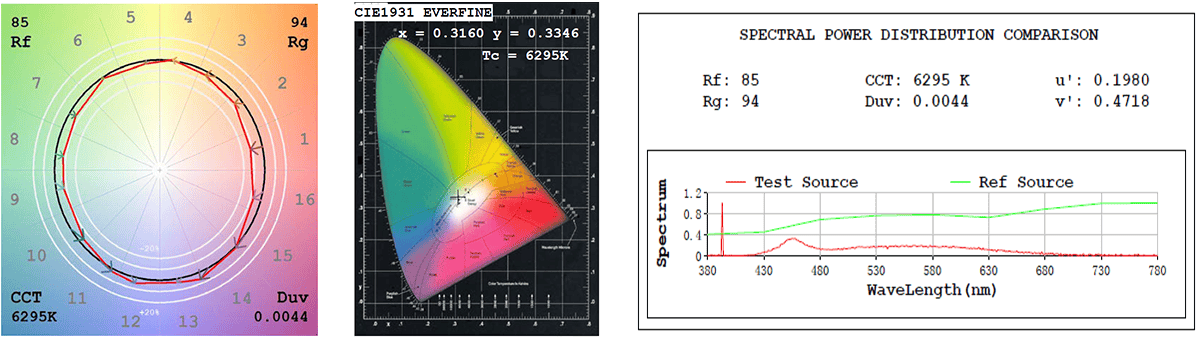

Spectrometry
Manufactured to international standards — Zhaga compatible, CE certified, IP42 rated.
