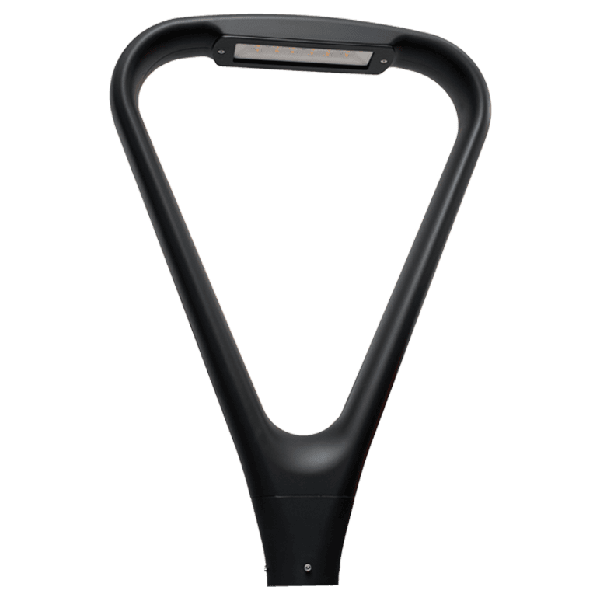

LED Trio Garden Pole Head
The SEGA-M LED Trio Garden Pole Head is a distinctive V-form pole-mounting LED garden luminaire, powered by 60W SMD LEDs, rated IP65. Its striking tri-segment design delivers 5336 lm at 91.4 lm/W with an exceptionally wide 270° beam angle, providing near-omnidirectional ground coverage from a single pole head. Designed for gardens, residence areas, parking, pedestrian areas, villas, and landscape parks.
Product Overview
LED Trio Garden Pole Head The SEGA-M LED Trio Garden Pole Head is a pole-mounting LED luminaire in a V-form tri-segment design, IP65 rated, powered by SMD LEDs, designed for landscape lighting in gardens, residences, parking areas, pedestrian zones, villas, and landscape parks. Its wide beam angle ensures maximum ground coverage with minimal pole density, reducing project costs.
Body & Construction Die-cast and press-formed aluminum, electrostatically coated after Phospho-Chromatation. PMMA lenses with a glass outer shield diffuser. IP65 full outdoor protection. Dimensions: L775×W535×H105 mm.
LED Technology 60W SMD LEDs, 5336 lm, 91.4 lm/W. Beam angle: 270°. CRI ≥ 72.3. CCT options: 3000K / 4000K / 6000K.
At a Glance
Ordering Information
| Item Code | Item Description | Power (W) | Power Factor | Lumen (lm) | Efficacy (lm/W) | Beam Angle (°) | CRI | CCT (K) | Dimensions (L×W×H) |
|---|---|---|---|---|---|---|---|---|---|
| T151-SMD060260-- | Decorative Pole Head 60W-6000K IP65 | 60 | 0.985 | 5336 | 91.4 | 270 | 72.3 | 6000 | 775×535×105 |
| T151-SMD060240-- | Decorative Pole Head 60W-4000K IP65 | 60 | 0.985 | 5336 | 91.4 | 270 | 72.3 | 4000 | 775×535×105 |
| T151-SMD060230-- | Decorative Pole Head 60W-3000K IP65 | 60 | 0.985 | 5336 | 91.4 | 270 | 72.3 | 3000 | 775×535×105 |
All variants available for export orders — contact us for MOQs, lead times and custom configurations.

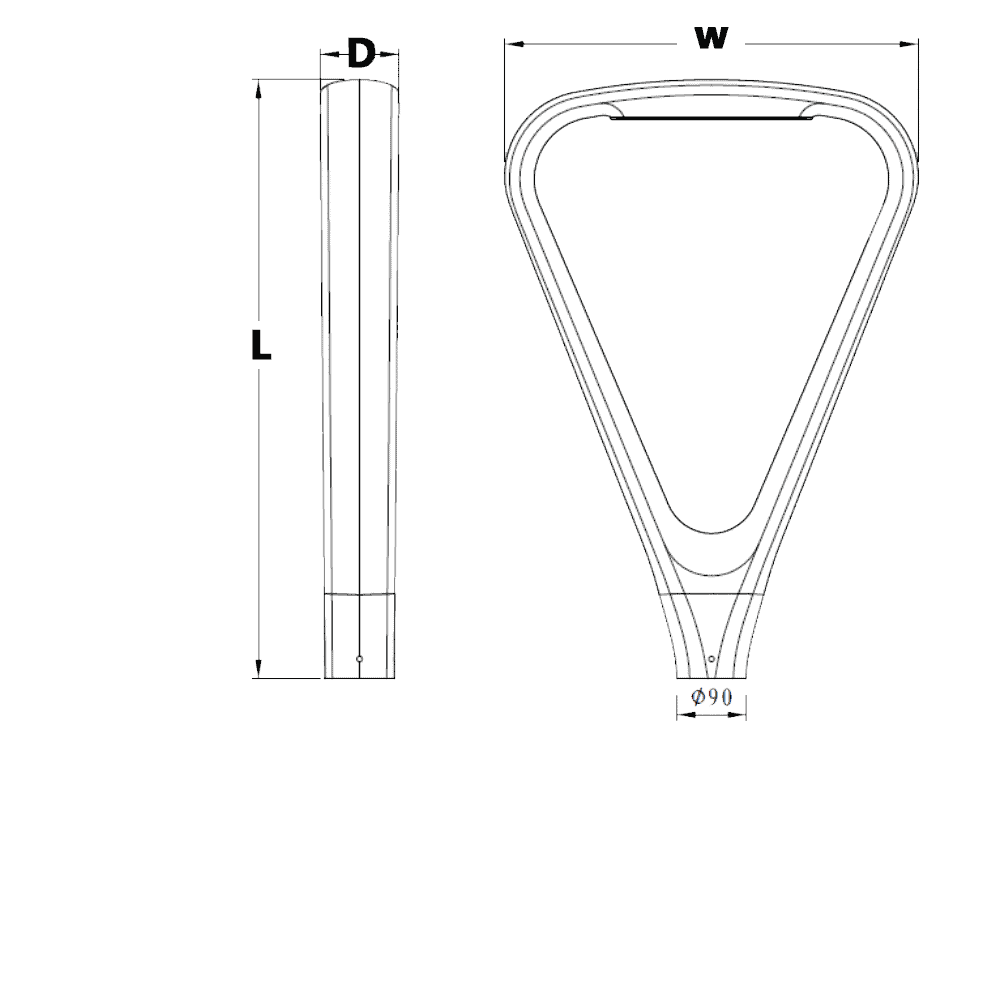

Technical Drawings
Let’s Support Your Next Project
From detailed technical specifications to full project solutions, our team provides dedicated support for international clients and export partners. Get in touch to discuss your requirements or request high-resolution catalogues.
Request an InquiryResponse within 24 hours for all export inquiries.
