LED Horizontal Grill Step Light
The SEGA-M LED Horizontal Grill Step Light is a wall-recessed LED stair luminaire powered by SMD LEDs, rated IP65 and IK08, designed for front and side wall-bottom mounting on stairs, corridors, general walls, and pathway edges in homes, hotels, shopping malls, and restaurants. Available in 6W (L170 mm) and 12W (L270 mm), it delivers 216–616 lm with a focused 30°–44° beam angle and a CRI of ≥82.7.
Product Overview

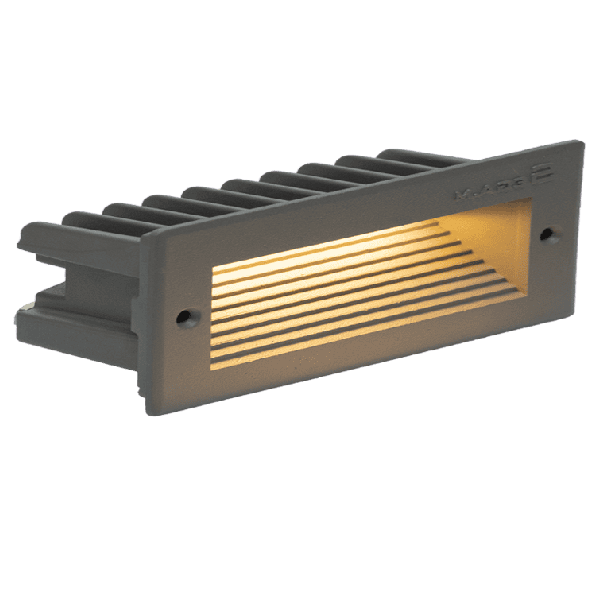

LED Horizontal Grill Step Light The SEGA-M LED Horizontal Grill Step Light is a wall-recessed box luminaire, IP65 and IK08 rated, powered by SMD LEDs. Designed for front and side mounting on stairs, general walls, and corridor bottoms, it provides safe, aesthetic pathway illumination for homes, hotels, shopping malls, and restaurants.
Body & Construction Die-cast aluminum housing, electrostatically coated after Phospho-Chromatation, with an ABS wall-embedded mounting box and a clear glass diffuser. IP65 ensures complete dust-tight and water-jet protection, while IK08 mechanical impact resistance protects against footfall and incidental knocks. Available in two lengths: L170 (6W) and L270 (12W).
LED Technology 6W: 216 lm, 30 lm/W, 30° beam, CRI 82.7. 12W: 616.6 lm, 44 lm/W, 44° beam, CRI 83.1. CCT options: 3000K / 4000K / 6000K. Dimensions: 89×74×170 mm / 89×74×270 mm.
At a Glance
Ordering Information
| Item Code | Item Description | Power (W) | Power Factor | Lumen (lm) | Efficacy (lm/W) | Beam Angle (°) | CRI | CCT (K) | Dimensions (W×D×L) |
|---|---|---|---|---|---|---|---|---|---|
| MINC17-SMD006260 | LED STAIRS GRILL SMD 6W-6000K L170 IP65 | 6 | 0.800 | 216 | 30 | 78.3 | 82.7 | 6000 | 89×74×170 |
| MINC17-SMD006240 | LED STAIRS GRILL SMD 6W-4000K L170 IP65 | 6 | 0.800 | 216 | 30 | 78.3 | 82.7 | 4000 | 89×74×170 |
| MINC17-SMD006230 | LED STAIRS GRILL SMD 6W-3000K L170 IP65 | 6 | 0.800 | 216 | 30 | 78.3 | 82.7 | 3000 | 89×74×170 |
| MINC27-SMD012260 | LED STAIRS GRILL SMD 12W-6000K L270 IP65 | 12 | 0.965 | 616.6 | 44 | 80.7 | 83.1 | 6000 | 89×74×270 |
| MINC27-SMD012240 | LED STAIRS GRILL SMD 12W-4000K L270 IP65 | 12 | 0.965 | 616.6 | 44 | 80.7 | 83.1 | 4000 | 89×74×270 |
| MINC27-SMD012230 | LED STAIRS GRILL SMD 12W-3000K L270 IP65 | 12 | 0.965 | 616.6 | 44 | 80.7 | 83.1 | 3000 | 89×74×270 |
All variants available for export orders — contact us for MOQs, lead times and custom configurations.

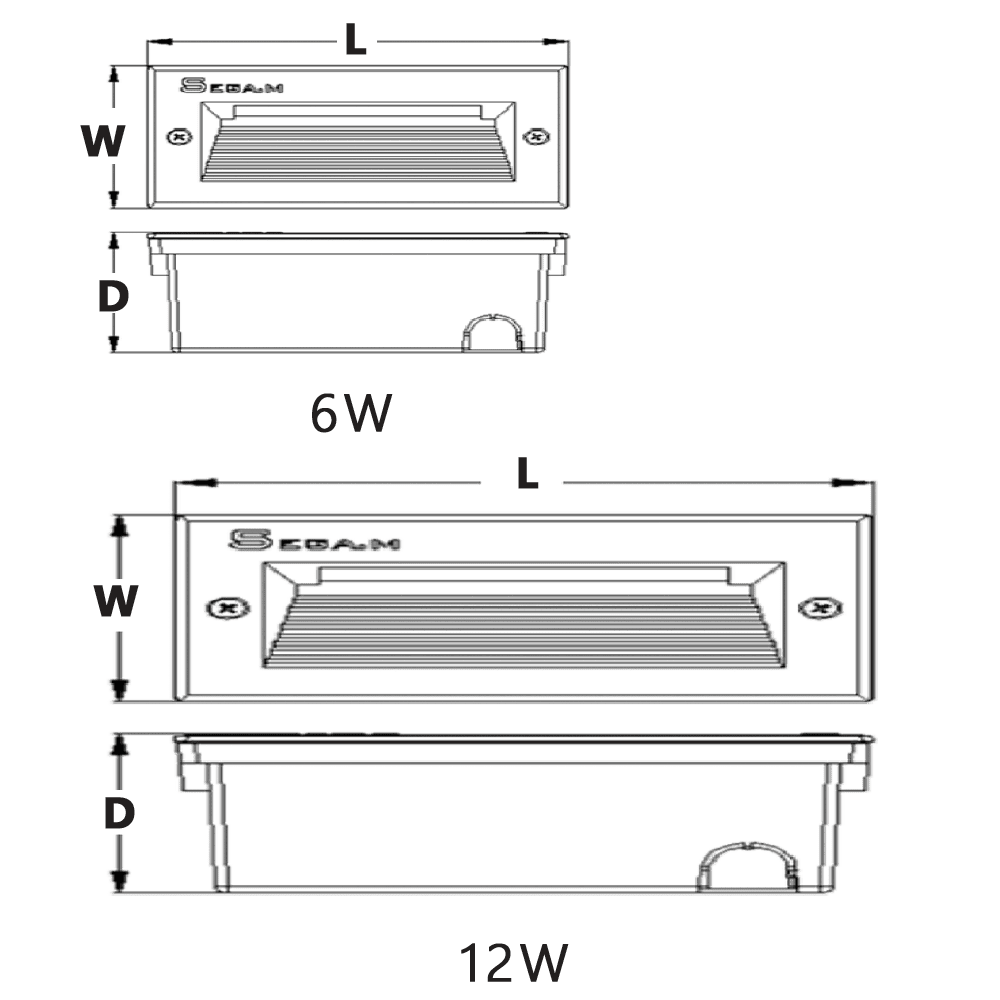

Technical Drawings
