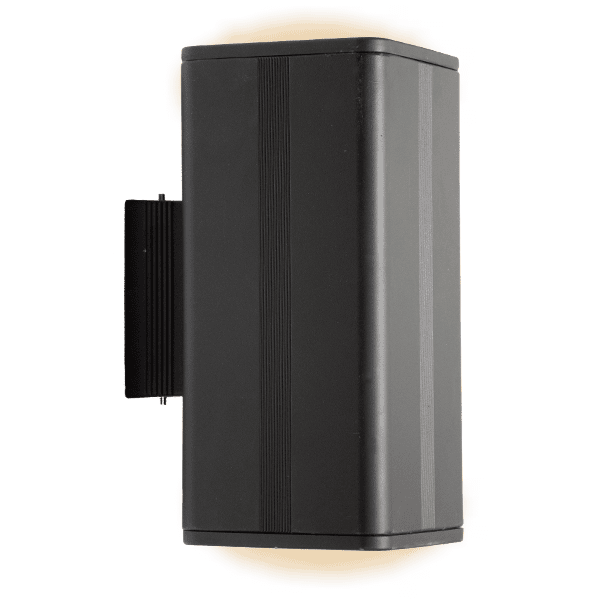

LED Squared Wall Light
The SEGA-M LED Squared Wall Light is a die-cast and extruded aluminum wall-mounted luminaire for both up-lighting and down-lighting or down-lighting only, powered by SMD or COB LEDs at 12W or 24W. Rated IP65 and IK08, it delivers 98 lm/W with CRI ≥83.6 and beam options of 35° or 100°, through a textured glass diffuser over a segmented specular reflector. Designed for homes, hotels, shopping malls, restaurants, and corridors requiring high-grade outdoor wall illumination.
Product Overview
LED Squared Wall Light The SEGA-M LED Squared Wall Light is a wall-mounted LED luminaire in a squared extruded profile, IP65 and IK08 rated, designed for decorative and primary outdoor wall illumination. Available as a down-only or up/down configuration, it caters to a wide range of architectural façade and landscape lighting requirements.
Body & Construction Die-cast and extruded aluminum construction, electrostatically coated after Phospho-Chromatation, ensures robust corrosion resistance for full outdoor deployment. The optical assembly features a segmented specular reflector paired with a textured glass diffuser, delivering controlled beam directionality with refined visual output. IP65 / IK08 ratings ensure suitability for all weather conditions and locations with mechanical risk.
LED Technology Available in four configurations: 12W down-only 100° spread (1122 lm, CRI 83.7), 12W down-only 35° spread (1101 lm, CRI 84.3), 24W up/down 100° spread (2241 lm, CRI 83.6), 24W up/down 35° spread (2166 lm, CRI 84.3). All at 98 lm/W. CCT: 3000K. Dimensions: 135×53×238–300 mm.
At a Glance
Ordering Information
| Item Code | Item Description | Power (W) | Power Factor | Lumen (lm) | Efficacy (lm/W) | Beam Angle (°) | CRI | CCT (K) | Dimensions (L×S×H) |
|---|---|---|---|---|---|---|---|---|---|
| CSQUR1-COB012230 | LED WALL DOWN LIGHT SQUARED 100° SPREAD 12W 3000K IP65 | 12 | 0.965 | 1122 | 98 | 100 | 83.7 | 3000 | 135×53×238 |
| CSQUR2-COB012230 | LED WALL DOWN LIGHT SQUARED 35° SPREAD 12W 3000K IP65 | 12 | 0.965 | 1101 | 98 | 35 | 84.3 | 3000 | 135×53×238 |
| CSQUDR1-COB024230 | LED WALL UP DOWN LIGHT SQUARED 100° SPREAD 24W 3000K IP65 | 24 | 0.965 | 2241 | 98 | 100 | 83.6 | 3000 | 135×53×300 |
| CSQUDR2-COB024230 | LED WALL UP DOWN LIGHT SQUARED 35° SPREAD 24W 3000K IP65 | 24 | 0.965 | 2166 | 98 | 35 | 84.3 | 3000 | 135×53×300 |
All variants available for export orders — contact us for MOQs, lead times and custom configurations.

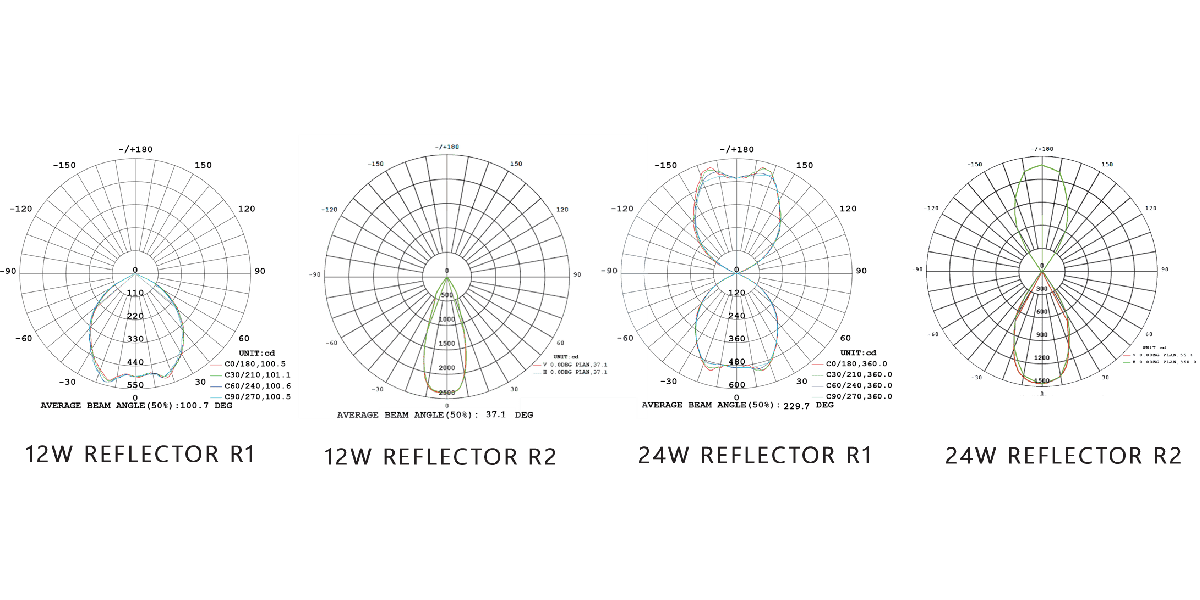

Technical Drawings
