LED Squared Garden Bollard
The SEGA-M LED Squared Garden Bollard is a 1-metre ground-mounting squared column COB LED bollard luminaire, rated IP65, available in two optical configurations: 100° wide spread (BLR1) and 35° narrow spread (BLR2). Delivering 1101–1122 lm from 12W at 96.5–98.2 lm/W efficacy with CRI ≥83.7, it provides architectural pathway, garden, and landscape bollard illumination with premium COB performance.
Lounge Chair
WHAT'S IN IT FOR YOU
Eames Lounge
Chair & Ottoman
LED Squared Garden Bollard
LED Squared Garden Bollard The SEGA-M LED Squared Garden Bollard is a 1-metre ground-mounting squared column LED bollard, IP65 rated, powered by COB LEDs, designed for landscape lighting in gardens, residences, pedestrian areas, and landscape parks. Its compact yet assertive squared form provides both pathway safety lighting and decorative accent illumination.
Body & Construction Die-cast and extruded aluminum sections, electrostatically coated after Phospho-Chromatation. Segmented specular reflector with textured glass diffuser provides controlled beam output in narrow or wide configurations. IP65 full outdoor protection. Dimensions: L198×W136×182×B218×H1030 mm.
LED Technology 12W COB LEDs. 100° spread (BLR1): 1122 lm, 96.5 lm/W, CRI 83.7. 35° spread (BLR2): 1101 lm, 98.2 lm/W, CRI 84.3. CCT options: 3000K / 4000K / 6000K.
IP Rating
IP65
CRI
CRI ≥ 83.7
Efficacy
96.5–98.2 lm/W
CCT Options
3000K / 4000K / 6000K
| Item Code | Item Description | Power (W) | Power Factor | Lumen (lm) | Efficacy (lm/W) | Beam Angle (°) | CRI | CCT (K) | Dimensions (L×N×A×B×L×H) |
|---|---|---|---|---|---|---|---|---|---|
| BLR1-COB012260-- | LED GARDEN BOLLARD 1m SQUARED 100° SPREAD 12W-6000K | 12 | 0.965 | 1122 | 96.5 | 100 | 83.7 | 6000 | 198×136×182×282×218×1030 |
| BLR1-COB012240-- | LED GARDEN BOLLARD 1m SQUARED 100° SPREAD 12W-4000K | 12 | 0.965 | 1122 | 96.5 | 100 | 83.7 | 4000 | 198×136×182×282×218×1030 |
| BLR1-COB012230-- | LED GARDEN BOLLARD 1m SQUARED 100° SPREAD 12W-3000K | 12 | 0.965 | 1122 | 96.5 | 100 | 83.7 | 3000 | 198×136×182×282×218×1030 |
| BLR2-COB012260-- | LED GARDEN BOLLARD 1m SQUARED 35° SPREAD 12W-6000K | 12 | 0.960 | 1101 | 98.2 | 35 | 84.3 | 6000 | 198×136×182×282×218×1030 |
| BLR2-COB012240-- | LED GARDEN BOLLARD 1m SQUARED 35° SPREAD 12W-4000K | 12 | 0.960 | 1101 | 98.2 | 35 | 84.3 | 4000 | 198×136×182×282×218×1030 |
| BLR2-COB012230-- | LED GARDEN BOLLARD 1m SQUARED 35° SPREAD 12W-3000K | 12 | 0.960 | 1101 | 98.2 | 35 | 84.3 | 3000 | 198×136×182×282×218×1030 |
Dimensional Drawing

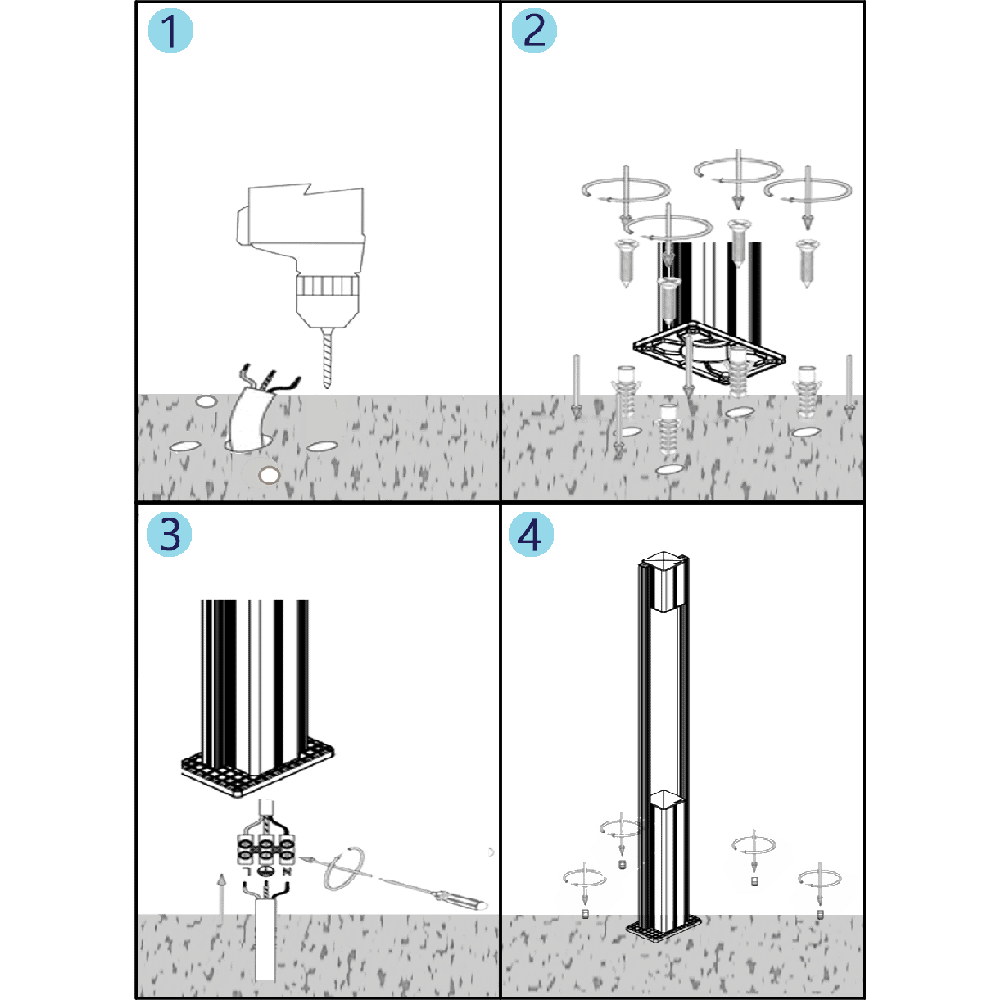

Install Guide
Photometric Data

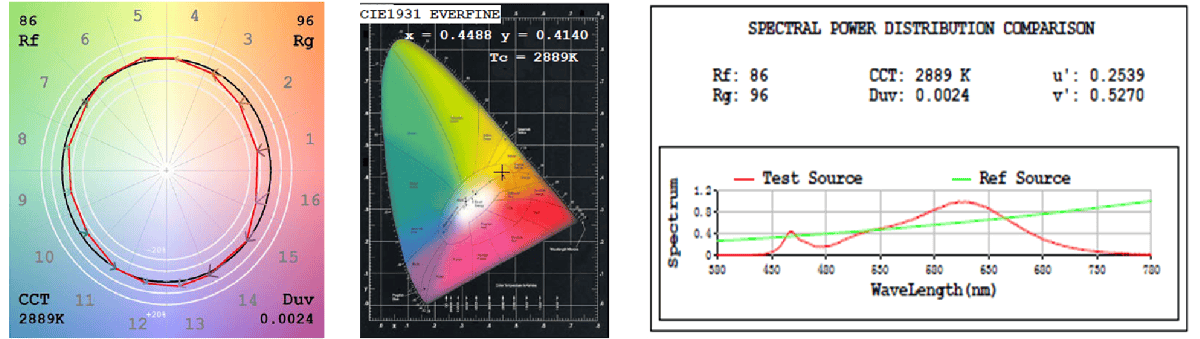

Spectrometry
Manufactured to international standards — Zhaga compatible, CE certified, IP42 rated.
