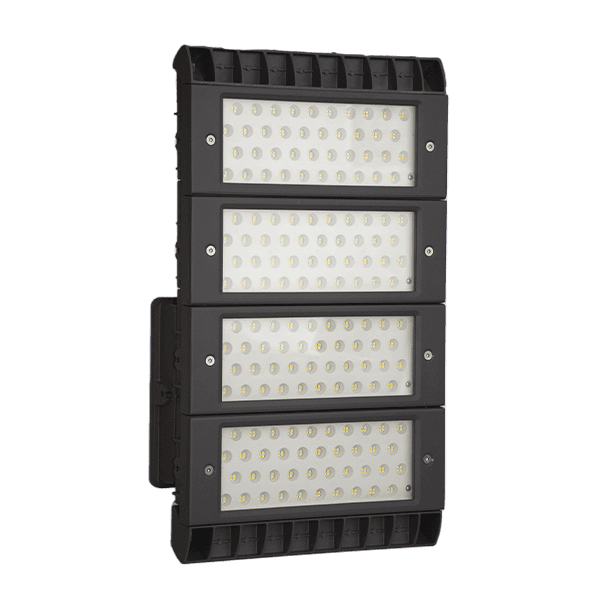

LED Modular Flood Light
The SEGA-M LED Modular Flood Light is the most powerful floodlight in the SEGA-M outdoor range — a high-power 400W SMD LED modular luminaire, rated IP65 and IK08, delivering an exceptional 36,343 lm at 91.36 lm/W. Featuring a four-module stacked design with a focused 76° beam angle and CRI ≥83.5, it is engineered for major stadiums, industrial yards, high-output billboards, and large sport courts where maximum lumen delivery from a single luminaire is critical.
Product Overview
LED Modular Flood Light The SEGA-M LED Modular Flood Light is a high-power modular SMD LED floodlight luminaire, IP65 and IK08 rated. It is the flagship floodlight in the SEGA-M range, designed for industrial yards, billboards, major sport courts, and general outdoor high-output applications where no other single luminaire in the range can meet the illuminance requirements.
Body & Construction Die-cast aluminum housing in a four-module stacked configuration, electrostatically coated after Phospho-Chromatation. Clear glass diffuser with polycarbonate reflector. IP65 / IK08 full outdoor industrial protection. Dimensions: H630×W360×T160 mm.
LED Technology 400W SMD LEDs, 36,343 lm, 91.36 lm/W. Beam angle: 76°. CRI ≥ 83.5. CCT: 6000K.
At a Glance
Ordering Information
| Item Code | Item Description | Power (W) | Power Factor | Lumen (lm) | Efficacy (lm/W) | Beam Angle (°) | CRI | CCT (K) | Dimensions (H×W×T) |
|---|---|---|---|---|---|---|---|---|---|
| TALENT4HR-SMD400260-- | LED MODULAR FLOOD LIGHT SMD 400W-6000K IP65 | 400 | 0.985 | 36343 | 91.36 | 76 | 83.5 | 6000 | 630×360×160 |
All variants available for export orders — contact us for MOQs, lead times and custom configurations.

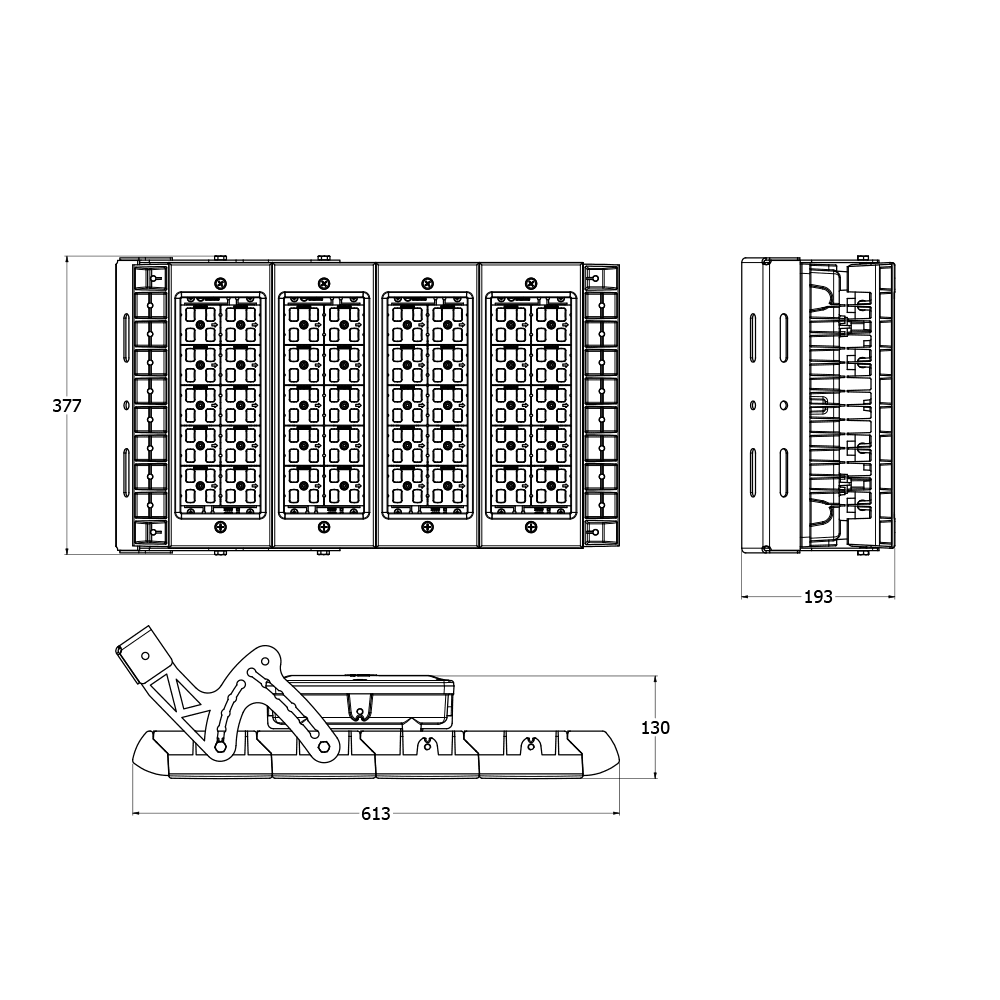

Technical Drawings
