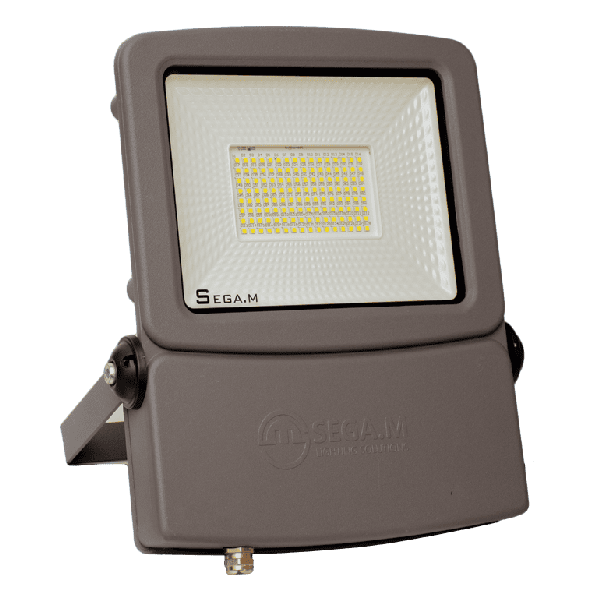

LED Flood Light (50W / 100W)
The SEGA-M LED Flood Light (Slim) is a high-efficiency outdoor floodlight luminaire powered by SMD LEDs, rated IP65 and IK08, available in 50W and 100W (105W) configurations. Delivering 5035–10,603 lm at 100.5 lm/W from a die-cast aluminum body with a clear glass and polycarbonate reflector, it is designed for industrial yards, billboards, medium sport courts, warehouses, gymnasiums, and general outdoor lighting applications.
Lounge Chair
WHAT'S IN IT FOR YOU
Eames Lounge
Chair & Ottoman
LED Flood Light (50W / 100W)
LED Flood Light — Slim (50W / 100W) The SEGA-M LED Flood Light (Slim) is a floodlight luminaire, powered by SMD LED light sources, IP65 and IK08 rated, designed for industrial yards, bill boards, medium sport courts, and general outdoor lighting. Its slim compact form enables flush wall bracket and pole mounting in a wide range of commercial and industrial environments.
Body & Construction Die-cast aluminum housing, electrostatically coated after Phospho-Chromatation, ensures robust weather resistance. The optical assembly combines a clear glass diffuser with a polycarbonate reflector for high photometric performance. IP65 full dust and water protection, IK08 mechanical impact resistance. Dimensions: 240×300×80 mm.
LED Technology 50W: 5035 lm, 100.5 lm/W, 115.6° beam, CRI 73.9, CCT 6565K. 105W: 10,603 lm, 100.5 lm/W, 102.8° beam, CRI 73.9, CCT 6565K.
IP Rating
IP65 / IK08
CRI
CRI ≥ 73.9
Efficacy
100.5 lm/W
CCT Options
6565K
| Item Code | Item Description | Power (W) | Power Factor | Lumen (lm) | Efficacy (lm/W) | Beam Angle (°) | CRI | CCT (K) | Dimensions (L×W×H) |
|---|---|---|---|---|---|---|---|---|---|
| VIA128-SMD050260-- | LED FLOOD LIGHT SMD SLIM 50W-6000K IP65 | 50 | 0.994 | 5035 | 100.5 | 115.6 | 73.9 | 6565 | 240×300×80 |
| VIA128-SMD105260-- | LED FLOOD LIGHT SMD SLIM 100W-6000K IP65 | 105 | 0.994 | 10603 | 100.5 | 102.8 | 73.9 | 6565 | 240×300×80 |
Dimensional Drawing

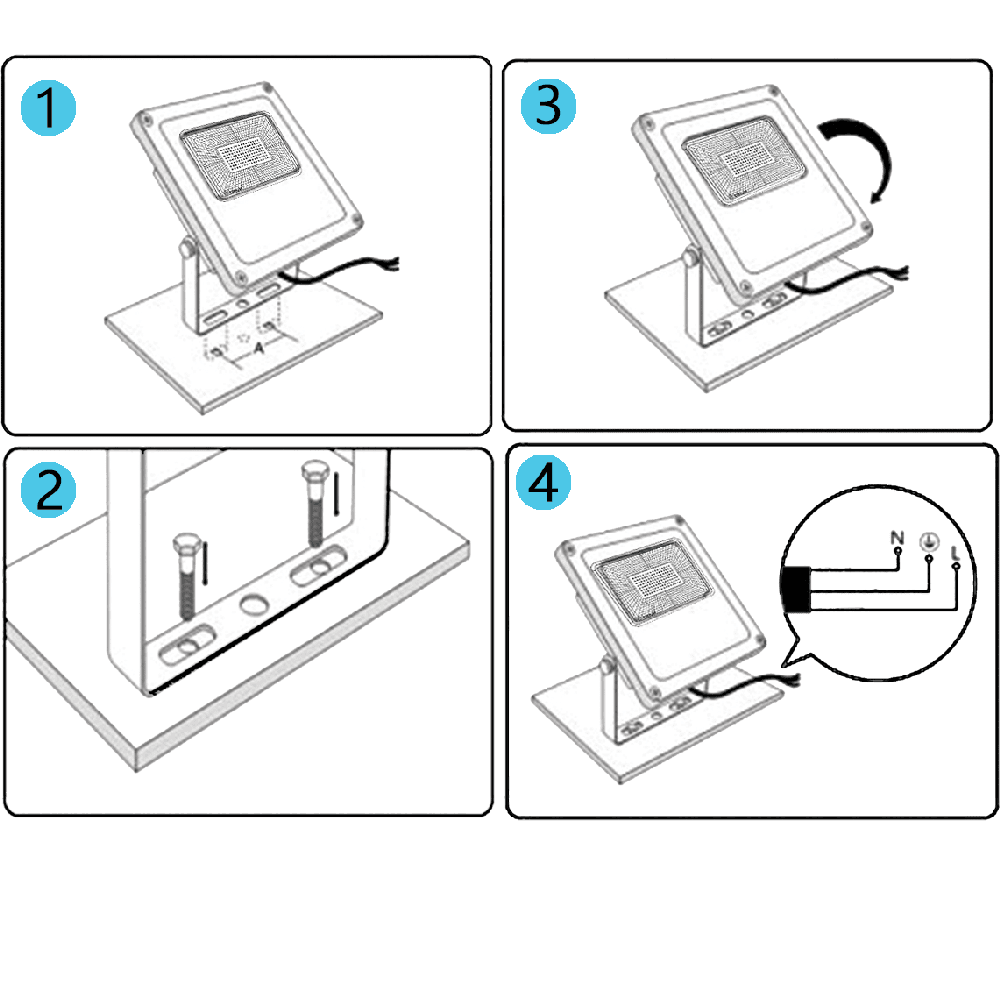

Install Guide
Photometric Data

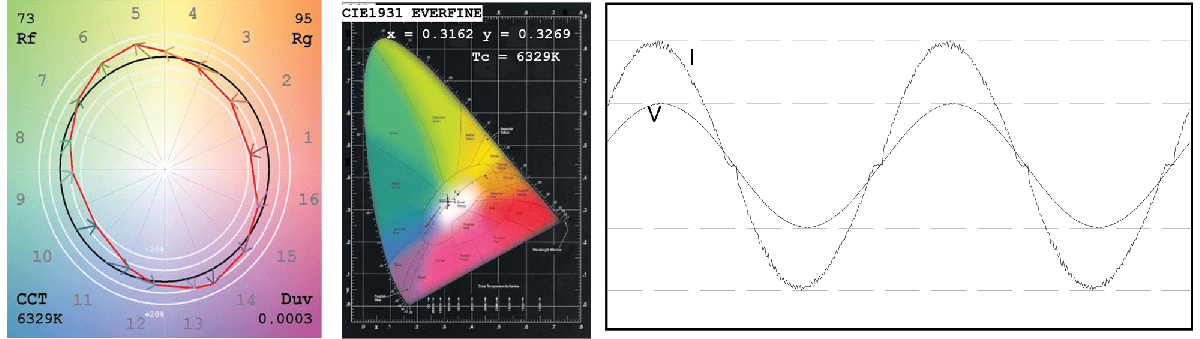

Spectrometry
Manufactured to international standards — Zhaga compatible, CE certified, IP42 rated.
