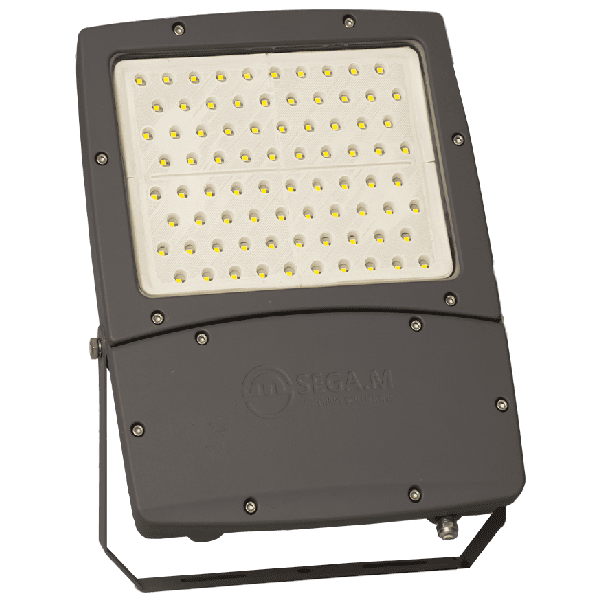

LED Flood Light (200W)
The SEGA-M LED Flood Light 200W is a high-power outdoor SMD LED floodlight, rated IP65 and IK08, delivering 21,278 lm at 105 lm/W — the highest output in the SEGA-M slim floodlight series. With a CRI of ≥83.7, a 93.7° beam angle, and die-cast aluminum construction with clear glass and polycarbonate reflector, it is engineered for industrial yards, billboards, medium and large sport courts, and general high-output outdoor applications.
Lounge Chair
WHAT'S IN IT FOR YOU
Eames Lounge
Chair & Ottoman
LED Flood Light (200W)
LED Flood Light — 200W The SEGA-M LED Flood Light 200W is a high-power SMD LED floodlight luminaire, IP65 and IK08 rated, designed for industrial yards, billboards, medium sport courts, and general outdoor high-output lighting. Its 200W output makes it suitable for applications that demand powerful, reliable illumination across large outdoor areas.
Body & Construction Die-cast aluminum housing, electrostatically coated after Phospho-Chromatation. Clear glass diffuser with polycarbonate reflector. IP65 / IK08 full outdoor industrial protection. Dimensions: Ø390×H100 mm.
LED Technology 200W SMD LEDs, 21,278 lm, 105 lm/W. Beam angle: 93.7°. CRI ≥ 83.7. CCT options: 4000K / 6000K.
IP Rating
IP65 / IK08
CRI
CRI ≥ 83.7
Efficacy
105 lm/W
CCT Options
4000K / 6000K
| Item Code | Item Description | Power (W) | Power Factor | Lumen (lm) | Efficacy (lm/W) | Beam Angle (°) | CRI | CCT (K) | Dimensions (Ø×H) |
|---|---|---|---|---|---|---|---|---|---|
| VIA2R-SMD200240-- | LED FLOOD LIGHT SMD 200W-4000K IP65 | 200 | 0.987 | 21278 | 105 | 93.7 | 83.7 | 4000 | 390×100 |
| VIA2R-SMD200260-- | LED FLOOD LIGHT SMD 200W-6000K IP65 | 200 | 0.987 | 21278 | 105 | 93.7 | 83.7 | 6000 | 390×100 |
Dimensional Drawing

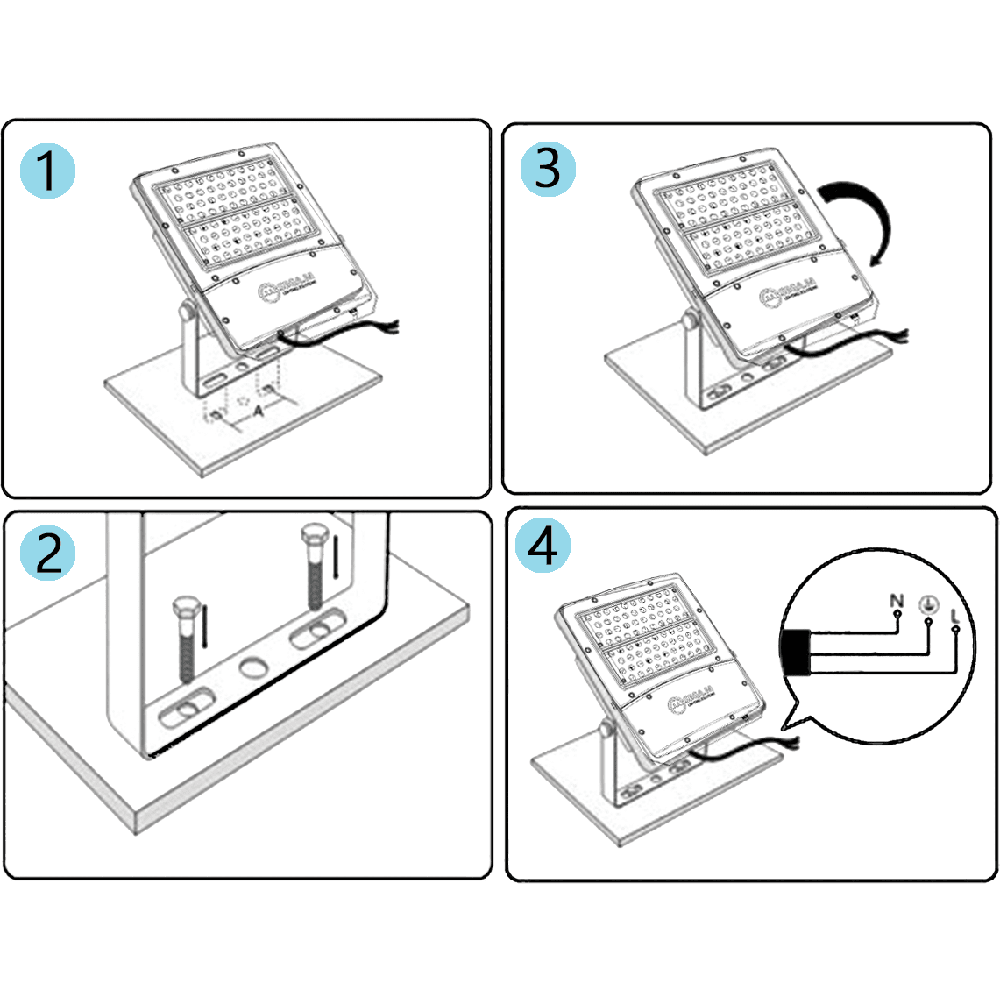

Install Guide

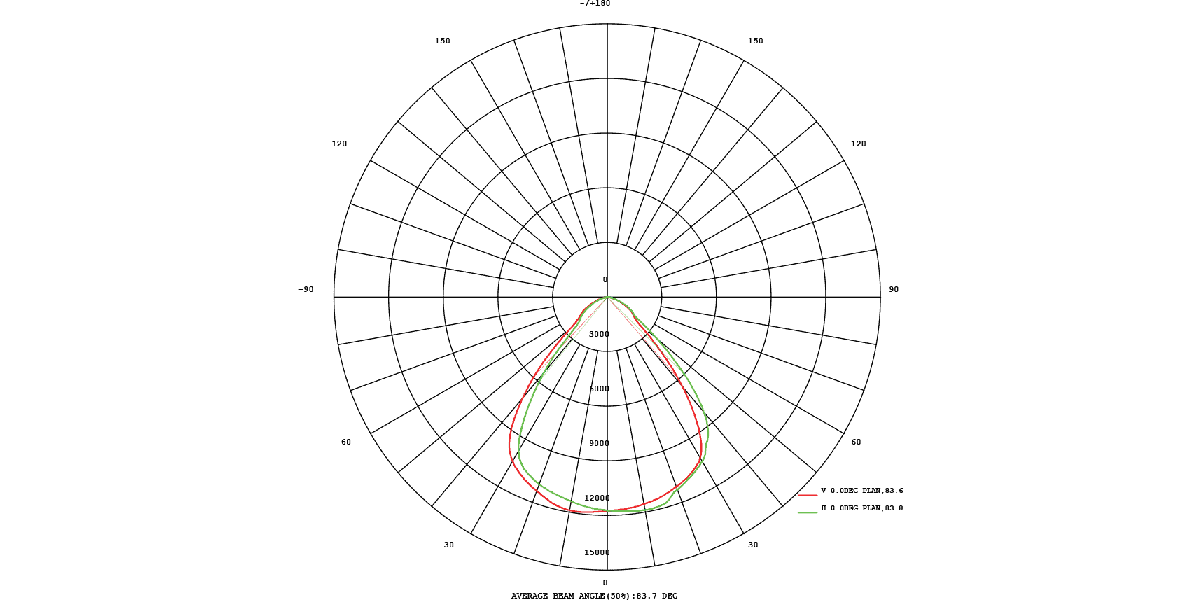

Photometric Data

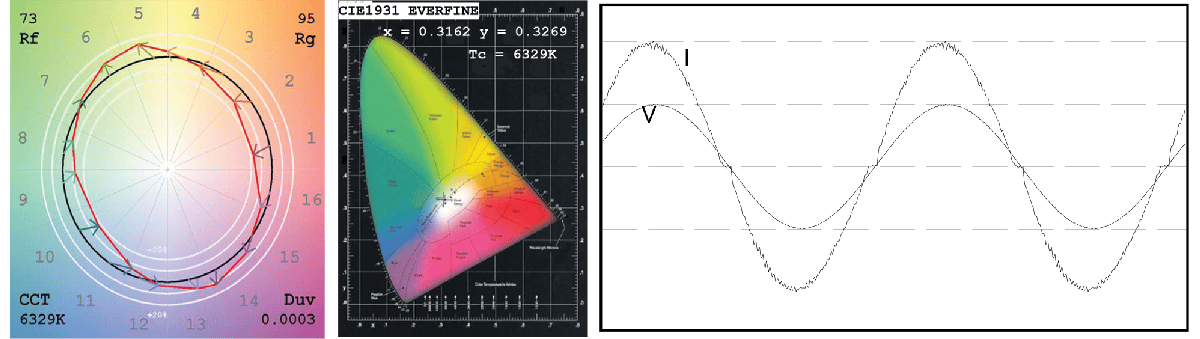

Spectrometry
Manufactured to international standards — Zhaga compatible, CE certified, IP42 rated.
