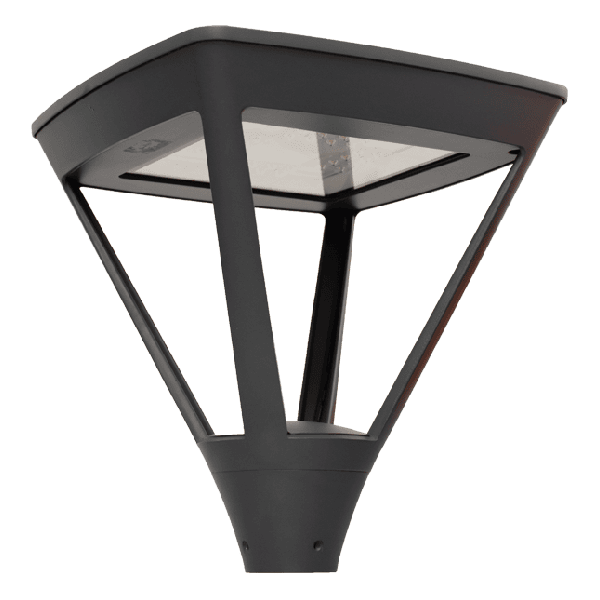

LED Diamond Garden Pole Head
The SEGA-M LED Diamond Garden Pole Head is a bold architectural pole-mounting LED garden luminaire with a distinctive diamond-faceted form, powered by 60W SMD LEDs, rated IP65. Delivering 5892 lm at 95.78 lm/W with a wide 158.2° beam, it combines high aesthetic impact with broad area coverage for gardens, residences, parking areas, pedestrian zones, villas, and landscape parks.
Lounge Chair
WHAT'S IN IT FOR YOU
Eames Lounge
Chair & Ottoman
LED Diamond Garden Pole Head
LED Diamond Garden Pole Head The SEGA-M LED Diamond Garden Pole Head is a pole-mounting LED luminaire in a diamond-faceted architectural form, IP65 rated, powered by SMD LEDs, designed for landscape lighting in gardens, residences, parking areas, pedestrian zones, villas, and landscape parks. Its distinctive form creates a strong visual identity for public spaces and premium landscape projects.
Body & Construction Die-cast and press-formed aluminum, electrostatically coated after Phospho-Chromatation. PMMA lenses with a glass outer shield. IP65 full outdoor protection. Dimensions: D380×W380×H500 mm.
LED Technology 60W SMD LEDs, 5892 lm, 95.78 lm/W. Beam angle: 158.2°. CRI ≥ 73. CCT options: 3000K / 4000K / 6000K.
IP Rating
IP65
CRI
CRI ≥ 73
Efficacy
95.78 lm/W
CCT Options
3000K / 4000K / 6000K
| Item Code | Item Description | Power (W) | Power Factor | Lumen (lm) | Efficacy (lm/W) | Beam Angle (°) | CRI | CCT (K) | Dimensions (D×W×H) |
|---|---|---|---|---|---|---|---|---|---|
| T70N-SMD060260-- | Decorative Pole Head 60W-6000K IP65 | 60 | 0.986 | 5892 | 95.78 | 158.2 | 73 | 6000 | 380×380×500 |
| T70N-SMD060240-- | Decorative Pole Head 60W-4000K IP65 | 60 | 0.986 | 5892 | 95.78 | 158.2 | 73 | 4000 | 380×380×500 |
| T70N-SMD060230-- | Decorative Pole Head 60W-3000K IP65 | 60 | 0.986 | 5892 | 95.78 | 158.2 | 73 | 3000 | 380×380×500 |
Dimensional Drawing
Install Guide
Photometric Data
Spectrometry
Manufactured to international standards — Zhaga compatible, CE certified, IP42 rated.
