LED Decorative Pole (Rect)
The SEGA-M LED Decorative Pole (Rect) is a ground-mounted decorative street and garden pole luminaire, powered by 105W SMD LEDs, rated IP65. Available in single and double-head configurations for 3-metre poles at 90° or 105° arm angles, it delivers 10,912 lm at 103 lm/W with CRI ≥85 and a 114.3° beam angle. Designed for street lighting, business entrances, architecture, landscape, square, and villa outdoor applications.
Product Overview
LED Decorative Pole (Rect) The SEGA-M LED Decorative Pole (Rect) is a ground-mounting decorative LED pole luminaire for street, business entrance, and general outdoor lighting. Its rectangular arm LED head design provides a contemporary urban aesthetic, suitable for architectural, landscape, square, garden, corridor, and villa environments.
Body & Construction Die-cast and extruded aluminum construction, electrostatically coated after Phospho-Chromatation. The electrostatically coated sheet steel reflector maximises optical efficiency, while a milky polycarbonate diffuser provides uniform, glare-reduced output. IP65 full outdoor protection. Pole arm: Ø and dimensions as shown at drawings, 3m height.

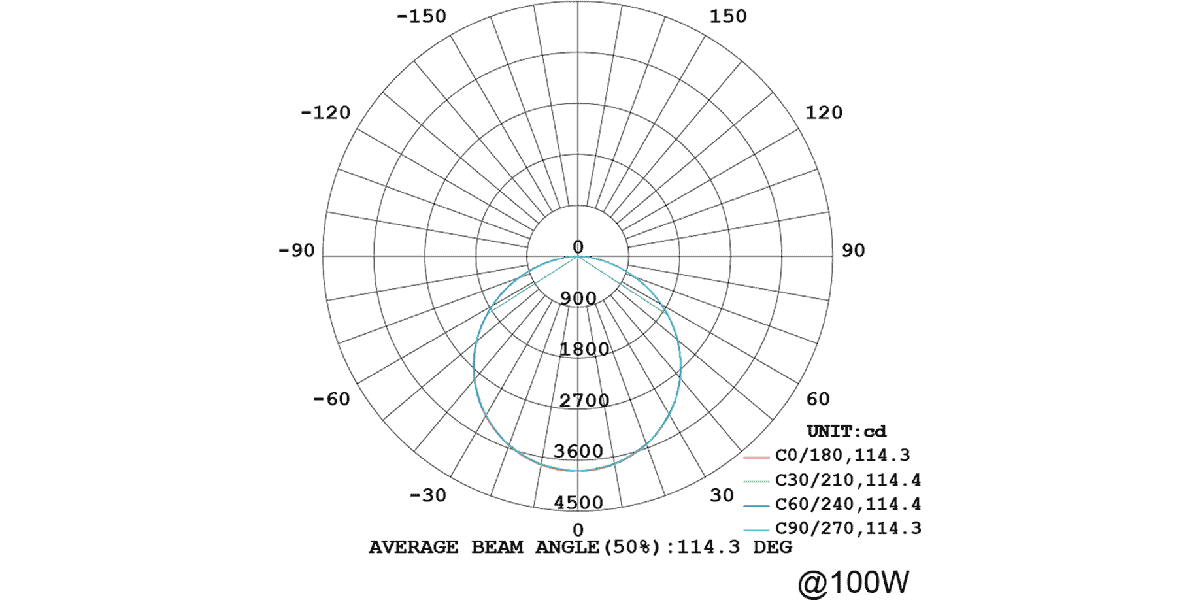

LED Technology 105W SMD LEDs, 10,912 lm, 103 lm/W. Beam angle: 114.3°. CRI ≥ 85. Available in 90° and 105° arm angles, single and double head. CCT options: 3000K / 4000K / 6000K.
At a Glance
Ordering Information
| Item Code | Item Description | Power (W) | Power Factor | Lumen (lm) | Efficacy (lm/W) | Beam Angle (°) | CRI | CCT (K) | Dimensions |
|---|---|---|---|---|---|---|---|---|---|
| RECTS300-SMD100230-- | LED Decorative Pole (Rect) Single, 3m/90° 105W-3000K | 105 | 0.973 | 10912 | 103 | 114.3° | 85 | 3000 | As shown in drawings |
| RECTS300-SMD100240-- | LED Decorative Pole (Rect) Single, 3m/90° 105W-4000K | 105 | 0.973 | 10912 | 103 | 114.3° | 85 | 4000 | As shown in drawings |
| RECTS300-SMD100260-- | LED Decorative Pole (Rect) Single, 3m/90° 105W-6000K | 105 | 0.973 | 10912 | 103 | 114.3° | 85 | 6000 | As shown in drawings |
| RECT300-SMD100230-- | LED Decorative Pole (Rect) Single, 3m/105° 105W-3000K | 105 | 0.973 | 10912 | 103 | 114.3° | 85 | 3000 | As shown in drawings |
| RECT300-SMD100240-- | LED Decorative Pole (Rect) Single, 3m/105° 105W-4000K | 105 | 0.973 | 10912 | 103 | 114.3° | 85 | 4000 | As shown in drawings |
| RECT300-SMD100260-- | LED Decorative Pole (Rect) Single, 3m/105° 105W-6000K | 105 | 0.973 | 10912 | 103 | 114.3° | 85 | 6000 | As shown in drawings |
| RECTDS300-SMD200230-- | LED Decorative Pole (Rect) Double, 3m/90° 105W-3000K | 105 | 0.973 | 10912 | 103 | 114.3° | 85 | 3000 | As shown in drawings |
| RECTDS300-SMD200240-- | LED Decorative Pole (Rect) Double, 3m/90° 105W-4000K | 105 | 0.973 | 10912 | 103 | 114.3° | 85 | 4000 | As shown in drawings |
| RECTDS300-SMD200260-- | LED Decorative Pole (Rect) Double, 3m/90° 105W-6000K | 105 | 0.973 | 10912 | 103 | 114.3° | 85 | 6000 | As shown in drawings |
| RECTD300-SMD200230-- | LED Decorative Pole (Rect) Double, 3m/105° 105W-3000K | 105 | 0.973 | 10912 | 103 | 114.3° | 85 | 3000 | As shown in drawings |
| RECTD300-SMD200240-- | LED Decorative Pole (Rect) Double, 3m/105° 105W-4000K | 105 | 0.973 | 10912 | 103 | 114.3° | 85 | 4000 | As shown in drawings |
| RECTD300-SMD200260-- | LED Decorative Pole (Rect) Double, 3m/105° 105W-6000K | 105 | 0.973 | 10912 | 103 | 114.3° | 85 | 6000 | As shown in drawings |
All variants available for export orders — contact us for MOQs, lead times and custom configurations.
Technical Drawings
