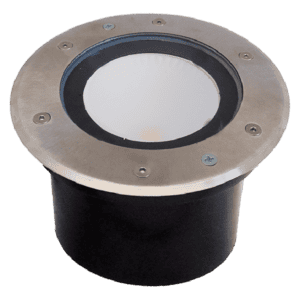

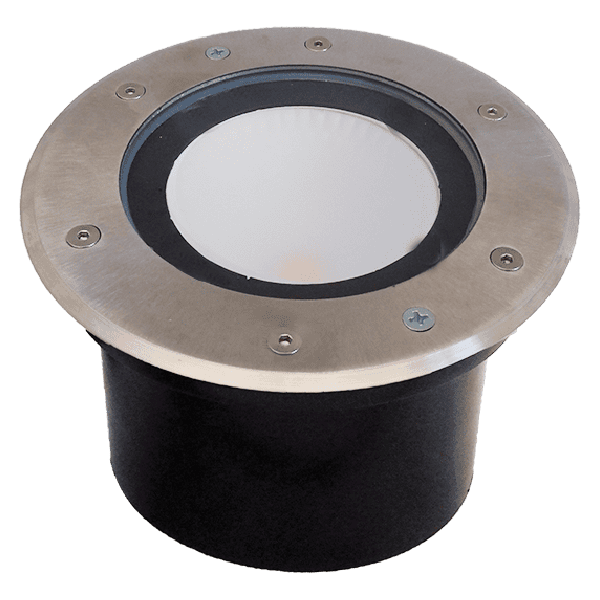

LED Circular Up Light COB Wide Spread
The SEGA-M LED Circular Up Light COB Wide Spread is a ground-recessed COB LED uplight delivering a broad 89° beam — the widest in the SEGA-M uplight range — ideal for illuminating large trees, wide facades, and expansive landscape features. At 15W it produces 1469 lm at 92.16 lm/W with CRI ≥83, rated IP67 and IK08, constructed with a stainless steel ring, die-cast aluminum heat sink, and tempered glass diffuser.
Product Overview
LED Circular Up Light COB Wide Spread The SEGA-M LED Circular Up Light COB Wide Spread is a ground-recessed ABS cylinder-mounted COB LED uplight, IP67 and IK08 rated, designed for decorative outdoor building and landscape lighting. Its wide 89° beam distinguishes it from the narrow-beam SMD variants, making it the optimum choice for broad-surface tree washing, large facade illumination, and expansive landscape coverage.
Body & Construction Stainless steel ring, die-cast aluminum heat sink electrostatically coated after Phospho-Chromatation, ABS outer shell, and clear tempered glass diffuser. IP67 / IK08 for full ground-recessed outdoor pedestrian-traffic applications. Dimensions: Ø180×H104 mm.
LED Technology 15W COB LED, 1469 lm, 92.16 lm/W. Beam angle: 89° (wide spread). CRI ≥ 83. CCT options: 3000K / 4000K / 6000K.
At a Glance
Ordering Information
| Item Code | Item Description | Power (W) | Power Factor | Lumen (lm) | Efficacy (lm/W) | Beam Angle (°) | CRI | CCT (K) | Dimensions (Ø×H) |
|---|---|---|---|---|---|---|---|---|---|
| ZD-COB015260-- | LED UPLIGHT WIDE BEAM COB 15W-6000K D180 IP67 | 15 | 0.942 | 1469 | 92.16 | 89 | 83 | 6000 | 180×104 |
| ZD-COB015240-- | LED UPLIGHT WIDE BEAM COB 15W-4000K D180 IP67 | 15 | 0.942 | 1469 | 92.16 | 89 | 83 | 4000 | 180×104 |
| ZD-COB015230-- | LED UPLIGHT WIDE BEAM COB 15W-3000K D180 IP67 | 15 | 0.942 | 1469 | 92.16 | 89 | 83 | 3000 | 180×104 |
All variants available for export orders — contact us for MOQs, lead times and custom configurations.

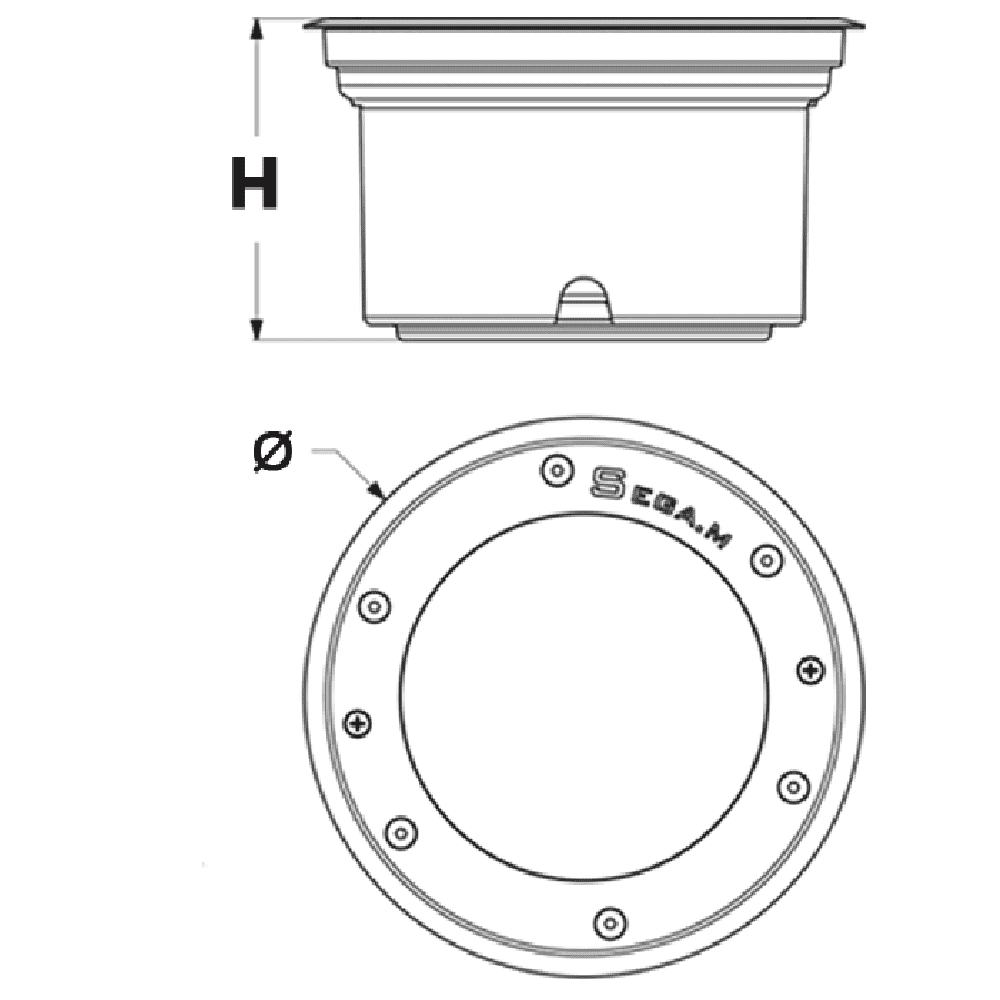

Technical Drawings
