LED Circular Uplight SMD 4W
The SEGA-M LED Circular Uplight SMD 4W is the compact, energy-efficient entry model of the SEGA-M ground uplight range, powered by SMD LEDs and rated IP67/IK08. Producing 336 lm from only 4W at 79.8 lm/W efficacy with a 27.6° beam angle and CRI ≥81.3, it is ideal for lighting garden paths, small shrubs, pathway markers, and decorative landscape ground features in gardens, villas, residences, and pedestrian areas.
Lounge Chair
WHAT'S IN IT FOR YOU
Eames Lounge
Chair & Ottoman
LED Circular Uplight SMD 4W
LED Circular Uplight SMD 4W The SEGA-M LED Circular Uplight SMD 4W is a ground-recessed ABS cylinder-mounted LED uplight, powered by SMD LEDs, IP67 and IK08 rated, designed for decorative outdoor building and landscape lighting. Its compact, low-wattage design makes it the ideal choice for subtle pathway definition, ground-level accent lighting, and decorative landscape illumination in energy-sensitive projects.
Body & Construction Stainless steel ring, die-cast aluminum heat sink electrostatically coated after Phospho-Chromatation, ABS outer shell, and clear tempered glass diffuser. IP67 / IK08 for full ground-recessed outdoor applications. Dimensions: Ø118×H85 mm.
LED Technology 4W SMD LEDs, 336.4 lm, 79.8 lm/W. Beam angle: 27.6°. CRI ≥ 81.3. CCT options: 3000K / 4000K / 6000K.
IP Rating
IP67 / IK08
CRI
CRI ≥ 81.3
Efficacy
79.8 lm/W
CCT Options
3000K / 4000K / 6000K
| Item Code | Item Description | Power (W) | Power Factor | Lumen (lm) | Efficacy (lm/W) | Beam Angle (°) | CRI | CCT (K) | Dimensions (Ø×H) |
|---|---|---|---|---|---|---|---|---|---|
| ZD-SMD004260-- | LED CIRCULAR UPLIGHT ZD SMD 4W-6000K D120 IP67 | 4 | 0.448 | 336.4 | 79.8 | 27.6 | 81.3 | 6000 | 118×85 |
| ZD-SMD004240-- | LED CIRCULAR UPLIGHT ZD SMD 4W-4000K D120 IP67 | 4 | 0.448 | 336.4 | 79.8 | 27.6 | 81.3 | 4000 | 118×85 |
| ZD-SMD004230-- | LED CIRCULAR UPLIGHT ZD SMD 4W-3000K D120 IP67 | 4 | 0.448 | 336.4 | 79.8 | 27.6 | 81.3 | 3000 | 118×85 |
Dimensional Drawing

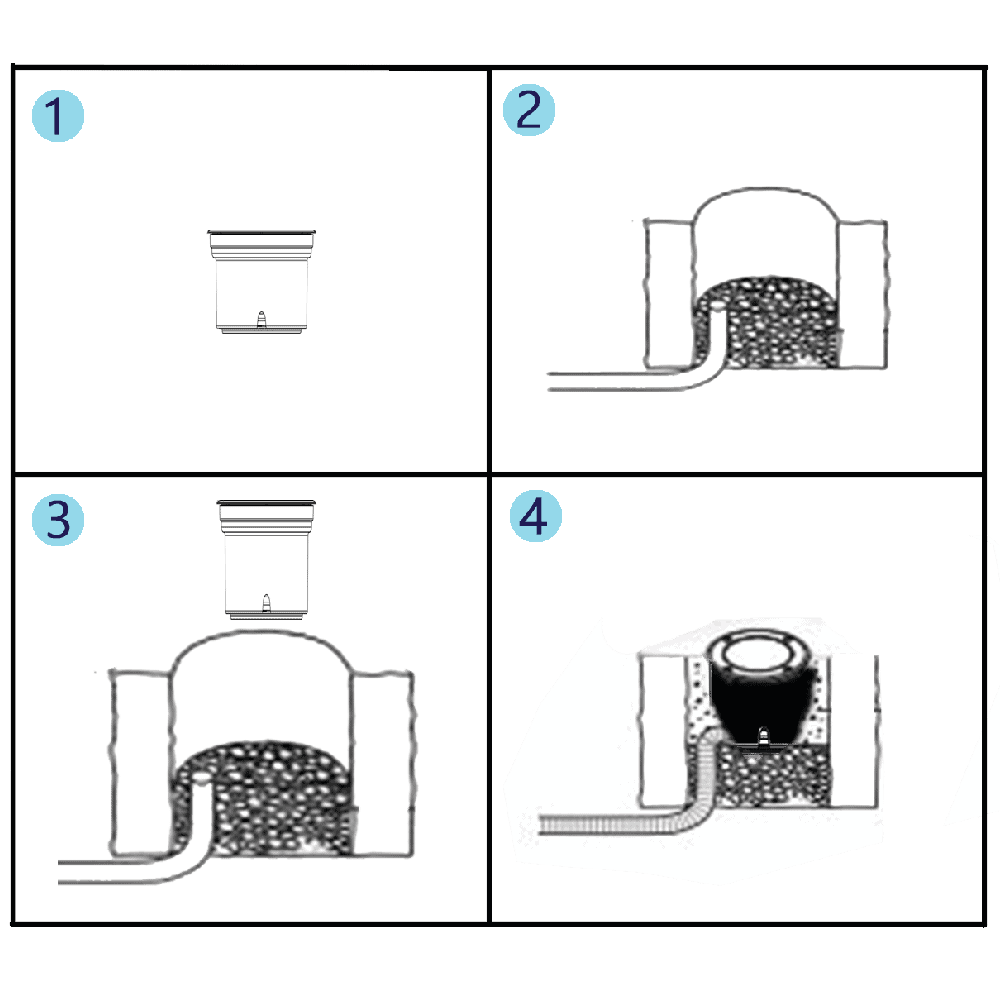

Install Guide
Photometric Data

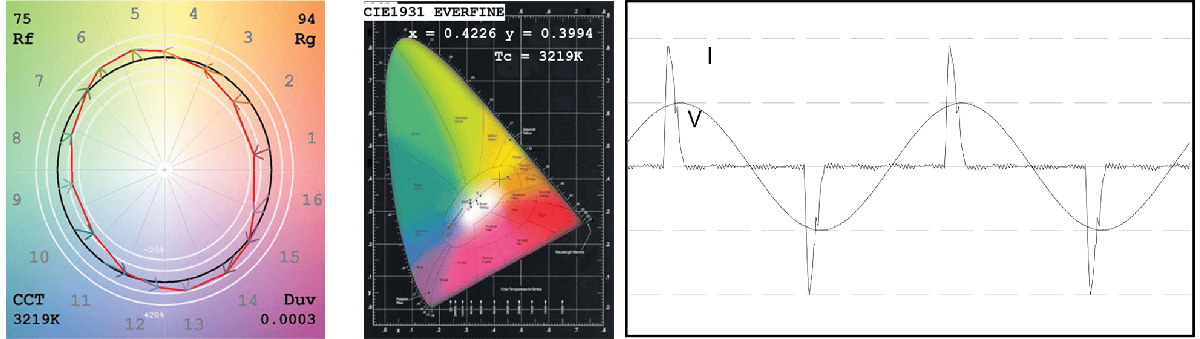

Spectrometry
Manufactured to international standards — Zhaga compatible, CE certified, IP42 rated.
