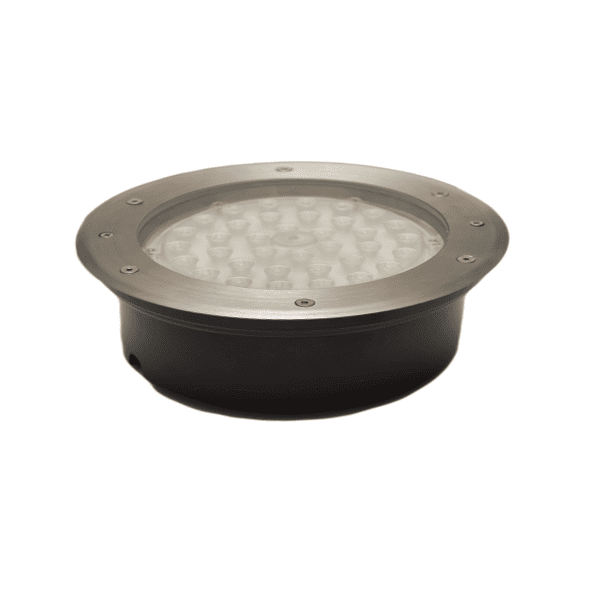

LED Circular Uplight SMD 36W

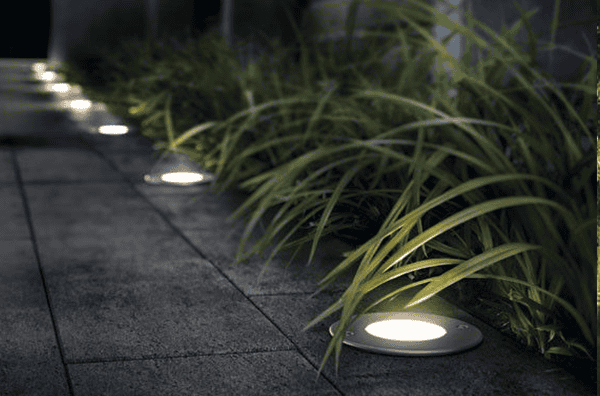

The SEGA-M LED Circular Uplight SMD 36W is a high-output ground-recessed ABS cylinder LED uplight, powered by 36W SMD LEDs, rated IP67 and IK08. Delivering 3395 lm at 89.25 lm/W through a narrow 17.4° beam, it creates powerful upward accent illumination on trees, architectural columns, and building facades. Its stainless steel ring, die-cast aluminum heat sink, and tempered glass diffuser ensure robust long-term outdoor performance in gardens, villas, residence areas, landscape parks, and pedestrian areas.
Lounge Chair
WHAT'S IN IT FOR YOU
Eames Lounge
Chair & Ottoman
LED Circular Uplight SMD 36W
LED Circular Uplight SMD 36W The SEGA-M LED Circular Uplight SMD 36W is a ground-recessed ABS cylinder-mounted LED uplight, powered by SMD LEDs, IP67 and IK08 rated. Designed and created for decorative outdoor building and landscape lighting, it is the highest-output SMD uplight in the SEGA-M uplight range, delivering intense, concentrated accent illumination.
Body & Construction The outer ring is stainless steel, providing exceptional corrosion resistance in ground-level installation. The die-cast aluminum heat sink is electrostatically coated after Phospho-Chromatation, ensuring efficient thermal management. The ABS outer shell provides additional insulation and structural support. A clear tempered glass diffuser protects the LEDs from ground-level debris, water, and physical pressure. IP67 / IK08 ratings for ground-recessed applications with pedestrian traffic overhead.
LED Technology 36W SMD LEDs, 3395 lm, 89.25 lm/W. Beam angle: 17.4° — focused upward accent. CRI ≥ 82.2. Dimensions: Ø250×H107 mm. CCT options: 3000K / 4000K / 6000K.
IP Rating
IP67 / IK08
CRI
CRI ≥ 82.2
Efficacy
89.25 lm/W
CCT Options
3000K / 4000K / 6000K
| Item Code | Item Description | Power (W) | Power Factor | Lumen (lm) | Efficacy (lm/W) | Beam Angle (°) | CRI | CCT (K) | Dimensions (Ø×H) |
|---|---|---|---|---|---|---|---|---|---|
| ZD-SMD036260-- | LED CIRCULAR UPLIGHT ZD SMD 36W-6000K D250 IP67 | 36 | 0.960 | 3395 | 89.25 | 17.4 | 82.2 | 6000 | 250×107 |
| ZD-SMD036240-- | LED CIRCULAR UPLIGHT ZD SMD 36W-4000K D250 IP67 | 36 | 0.960 | 3395 | 89.25 | 17.4 | 82.2 | 4000 | 250×107 |
| ZD-SMD036230-- | LED CIRCULAR UPLIGHT ZD SMD 36W-3000K D250 IP67 | 36 | 0.960 | 3395 | 89.25 | 17.4 | 82.2 | 3000 | 250×107 |

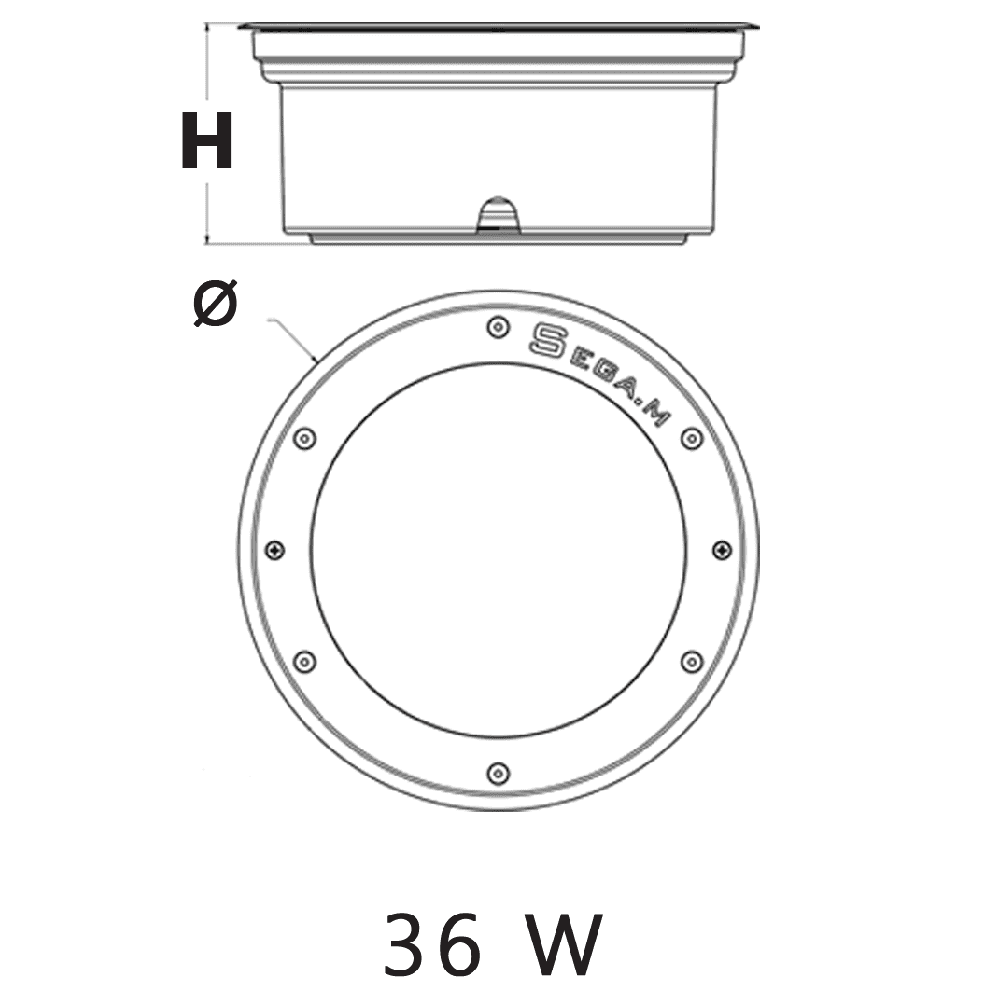

Dimensional Drawing

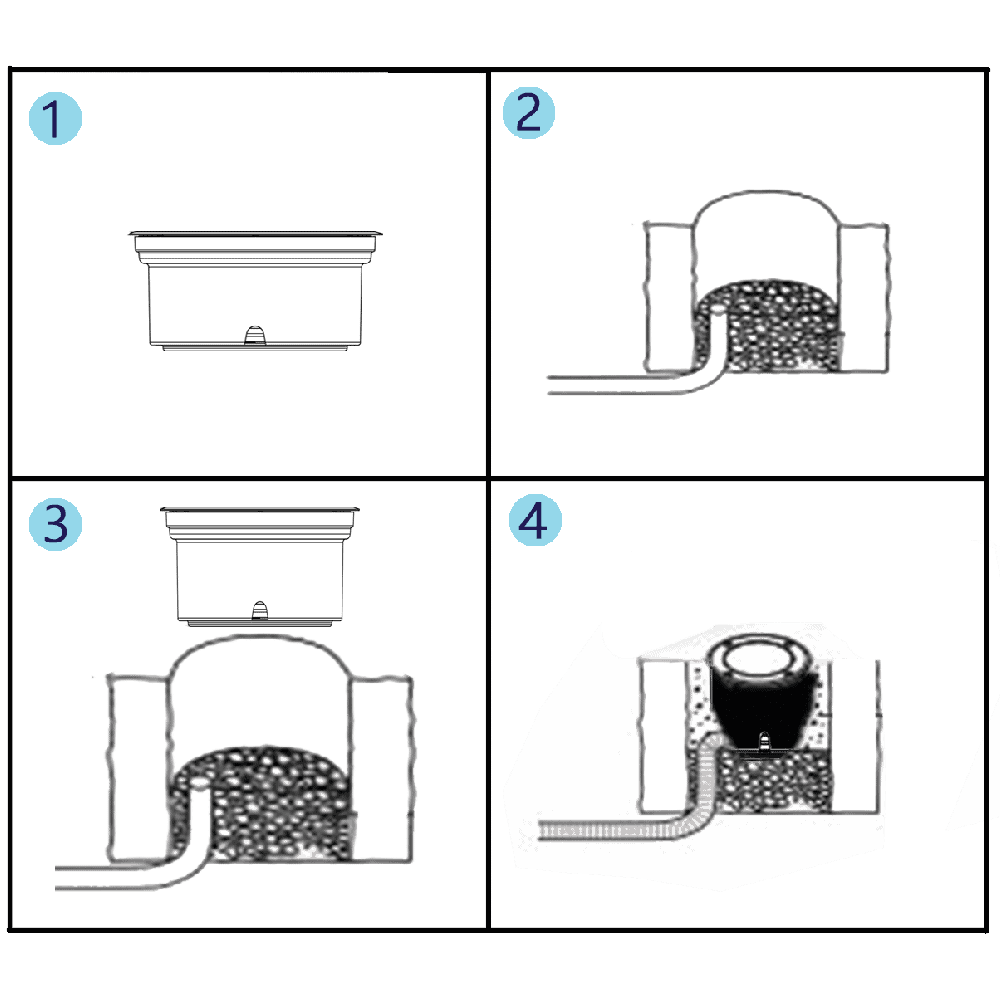

Install Guide

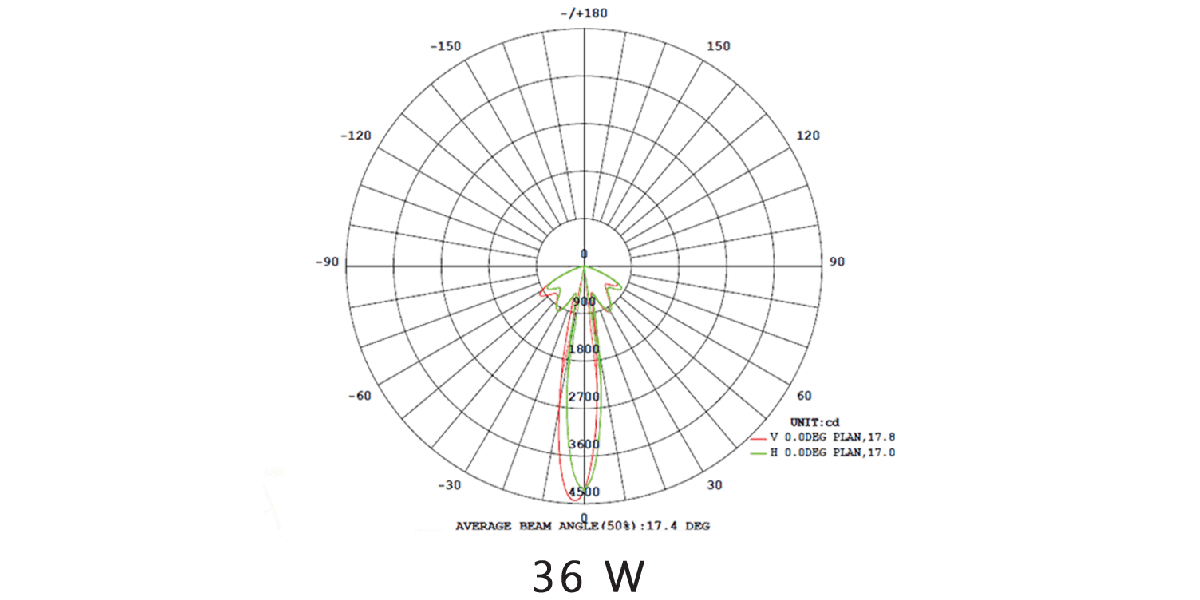

Photometric Data

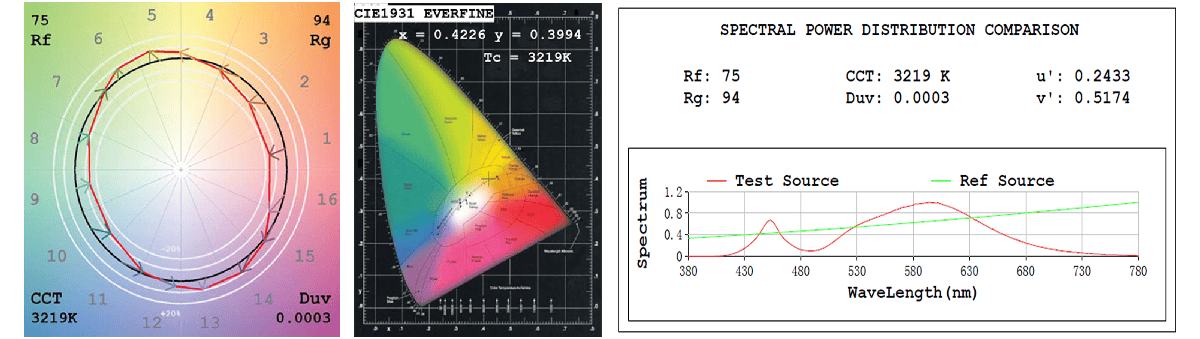

Spectrometry
Manufactured to international standards — Zhaga compatible, CE certified, IP42 rated.
