LED Circular Uplight SMD 12W
The SEGA-M LED Circular Uplight SMD 12W is a compact ground-recessed SMD LED uplight, rated IP67 and IK08, delivering 1326 lm at 106.5 lm/W — the highest efficacy in the SEGA-M uplight series. With a 23° beam angle and a stainless steel outer ring over a die-cast aluminum heat sink and ABS shell, it provides efficient, focused accent uplighting for gardens, villas, residence areas, landscape parks, and pedestrian areas.
Product Overview

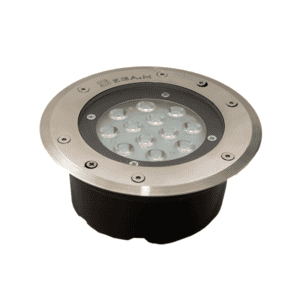

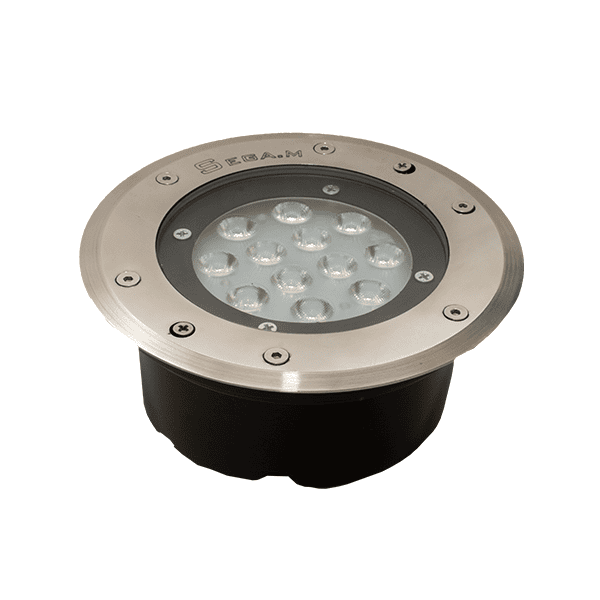

LED Circular Uplight SMD 12W The SEGA-M LED Circular Uplight SMD 12W is a ground-recessed ABS cylinder-mounted LED uplight, powered by SMD LEDs, IP67 and IK08 rated, designed for decorative outdoor building and landscape lighting. Its superior efficacy of 106.5 lm/W makes it an energy-efficient choice for landscape projects requiring continuous nighttime uplight illumination.
Body & Construction Stainless steel ring, die-cast aluminum heat sink coated after Phospho-Chromatation, ABS outer shell, and clear tempered glass diffuser. IP67 / IK08 for full ground-recessed outdoor application. Dimensions: Ø180×H110 mm.
LED Technology 12W SMD LEDs, 1326 lm, 106.5 lm/W. Beam angle: 23°. CRI ≥ 75.3. CCT options: 3000K / 4000K / 6000K.
At a Glance
Ordering Information
| Item Code | Item Description | Power (W) | Power Factor | Lumen (lm) | Efficacy (lm/W) | Beam Angle (°) | CRI | CCT (K) | Dimensions (Ø×H) |
|---|---|---|---|---|---|---|---|---|---|
| ZD-SMD012260-- | LED CIRCULAR UPLIGHT ZD SMD 12W-6000K D180 IP67 | 12 | 0.968 | 1326 | 106.5 | 23 | 75.3 | 6000 | 180×110 |
| ZD-SMD012240-- | LED CIRCULAR UPLIGHT ZD SMD 12W-4000K D180 IP67 | 12 | 0.968 | 1326 | 106.5 | 23 | 75.3 | 4000 | 180×110 |
| ZD-SMD012230-- | LED CIRCULAR UPLIGHT ZD SMD 12W-3000K D180 IP67 | 12 | 0.968 | 1326 | 106.5 | 23 | 75.3 | 3000 | 180×110 |
All variants available for export orders — contact us for MOQs, lead times and custom configurations.
Technical Drawings
