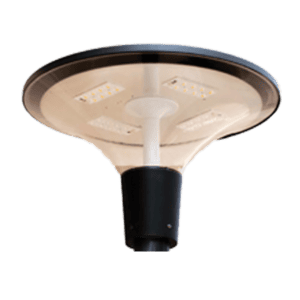

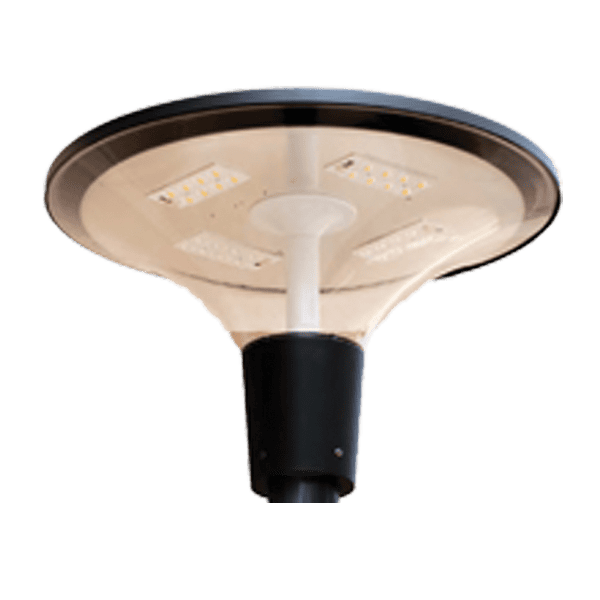

LED Circular Garden Pole Head
The SEGA-M LED Circular Garden Pole Head is a pole-mounting LED garden luminaire in a large circular disc form, powered by 70W SMD LEDs, rated IP65. It delivers 8506 lm at a high 122.72 lm/W efficacy through an extremely wide 163° beam angle, making it the optimum choice for large-area garden, pedestrian, and landscape illumination from a single pole head. Constructed from die-cast and press-formed aluminum with PMMA lenses and polycarbonate outer shield.
Lounge Chair
WHAT'S IN IT FOR YOU
Eames Lounge
Chair & Ottoman
LED Circular Garden Pole Head

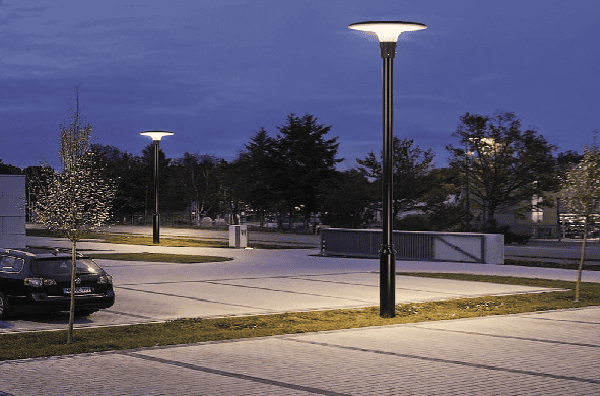

LED Circular Garden Pole Head The SEGA-M LED Circular Garden Pole Head is a pole-mounting LED luminaire designed for landscape lighting in gardens, residence areas, villas, pedestrian areas, and landscape parks. Its expansive circular disc form creates a dramatic architectural presence while delivering powerful, wide-area illumination from a single light point.
Body & Construction Die-cast and press-formed aluminum, electrostatically coated after Phospho-Chromatation. PMMA lenses with a polycarbonate outer shield diffuser provide durable, UV-stable optical performance. IP65 full outdoor protection. Dimensions: Ø585×H390 mm.
LED Technology 70W SMD LEDs, 8506 lm, 122.72 lm/W. Beam angle: 163° — exceptional wide-area coverage from a single pole head. CRI ≥ 72.2. CCT options: 3000K / 4000K / 6000K.
IP Rating
IP65
CRI
CRI ≥ 72.2
Efficacy
122.72 lm/W
CCT Options
3000K / 4000K / 6000K
| Item Code | Item Description | Power (W) | Power Factor | Lumen (lm) | Efficacy (lm/W) | Beam Angle (°) | CRI | CCT (K) | Dimensions (Ø×H) |
|---|---|---|---|---|---|---|---|---|---|
| SPH-SMD070260-- | LED GARDEN POLE HEAD 70W 6000K IP65 | 70 | 0.986 | 8506 | 122.72 | 163 | 72.2 | 6000 | 585×390 |
| SPH-SMD070240-- | LED GARDEN POLE HEAD 70W 4000K IP65 | 70 | 0.986 | 8506 | 122.72 | 163 | 72.2 | 4000 | 585×390 |
| SPH-SMD070230-- | LED GARDEN POLE HEAD 70W 3000K IP65 | 70 | 0.986 | 8506 | 122.72 | 163 | 72.2 | 3000 | 585×390 |
Dimensional Drawing
Install Guide
Photometric Data
Spectrometry
Manufactured to international standards — Zhaga compatible, CE certified, IP42 rated.
