Ikthus Shield 105W
Physical specifications
Mass : Head 1.4kg
Dimensions : φb 195mm * φh 130mm * L 0.6/0.75/1m
Body : electrostatically coated sections + die cast aluminum
Diffuser : Clear glass
Diffuser : Clear glass
Ingression protection : IP65
Mounting : M6-M8 Fischer screws, ground mounted

Ikthus Shield 105W

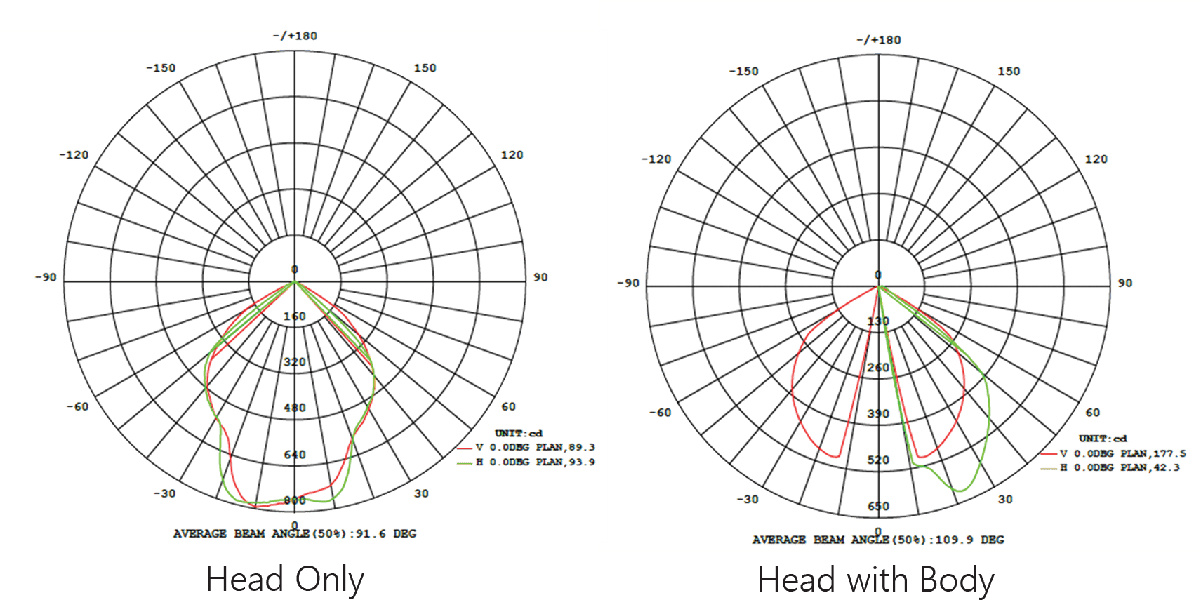

Photometric Characteristics
Light Source : COB LED
Luminous Efficacy : 92-97 Lm/W (@ 13.5W)
Spread angle : 90-100°

Ikthus Shield 105W
Spectrometry
Correlated Color Temperature(CCT) : 3977°K (Neutral white)
Dominant Wavelength : 577.2nm
Color Rendering index (Ra) : 85.5
TM-30 Fidelity Index (Rf) : 86
TM-30 Gamut Index (Rg) : 94
CQS Qa : 85.52
CQS TLCI : 73


Ikthus Shield 105W
Electrical Parameters
Typical power supply : 220VAC, 50/60Hz
Power : 13W nominal
Current : 0.064 A (RMS)
Power Factor : 0.967
Total Harmonic distortion (THDI) : 11.5%
Owing to the special nature of application (water
flooding possible) it is strongly recommended to supply this product through Earth fault/leakage protected supply as per national code.

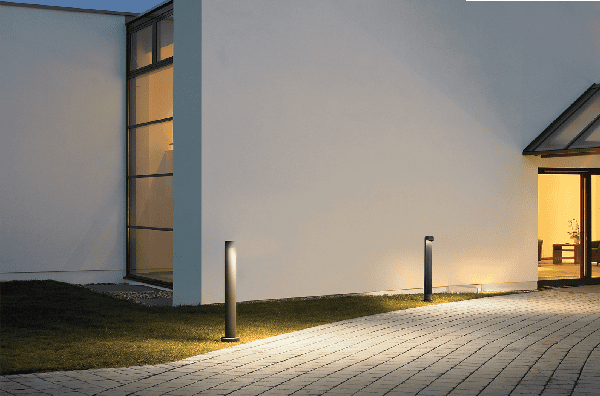

A clever solution that fulfills both traditional bollard form used on green areas and directed light required for passageways with0ut the need for complicated equipment or possibility for glare. The asymmetric distribution provides a good asset for decorative architectural design.

Art. No.
MOON-COB01324001 LED Bollard moon 1m 13W 4000°K
MOON-COB01324002 LED Bollard moon 0.75m 13W 4000°K
MOON-COB01324003 LED Bollard moon 0.6m 13W 4000°K
Sega-M Warranty: 3 Years
Sources for software simulation for installation (*.IES, *.LDT files) and advanced test results are available on request
Performance described above requires proper installation according to internationally recognized codes and within mentioned operational limitations.
Any properties not directly affecting photometric, spectrometric or electrical performance are liable to change without prior notice.
