Ikthus Shield 105W
Physical specifications
Mass : Head 1.4kg
Dimensions : φb 170mm * φh 136mm * L 500/1000 mm
Body : electrostatically coated sections + die cast aluminum
Reflector : colored / specular
Diffuser : Clear poly carbonate
Ingression protection : IP65
Mounting : M6-M8 Fischer screws, anchor bolts, ground mounted
Ikthus Shield 105W
Photometric Characteristics
Light Source : SMD LEDs
Luminous Flux : 1100 Lm
Spread angle : 180°
Ikthus Shield 105W

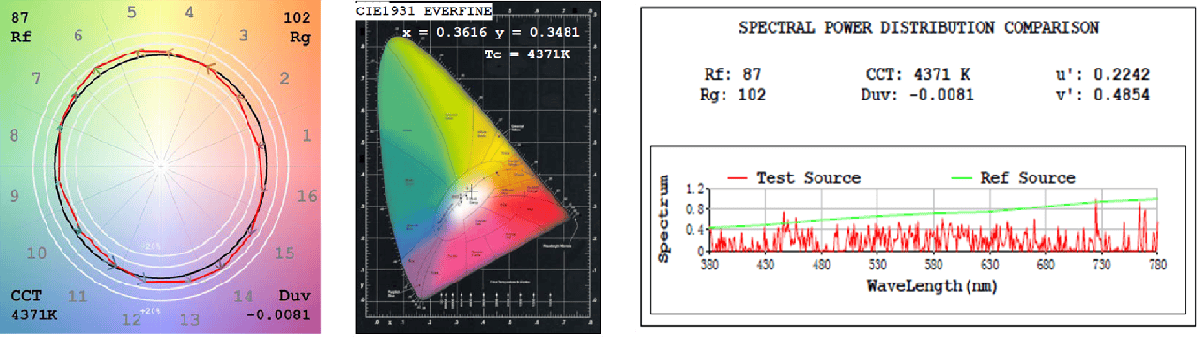

Spectrometry
Correlated Color Temperature(CCT) : 4371°K (Neutral white)
Dominant Wavelength : 586.2nm
Color Rendering index (Ra) : 90.6
TM-30 Fidelity Index (Rf) : 87
TM-30 Gamut Index (Rg) : 102
CQS Qa : 82.59
CQS TLCI : 72
Ikthus Shield 105W
Electrical Parameters
Typical power supply : 220VAC, 50/60Hz
Power : 18W nominal
Current : 0.086 A (RMS)
Power Factor : 0.95
Total Harmonic distortion (THDI) : 13.2%
Owing to the special nature of application (water
flooding possible) it is strongly recommended to supply this product through Earth fault/leakage protected supply as per national code.

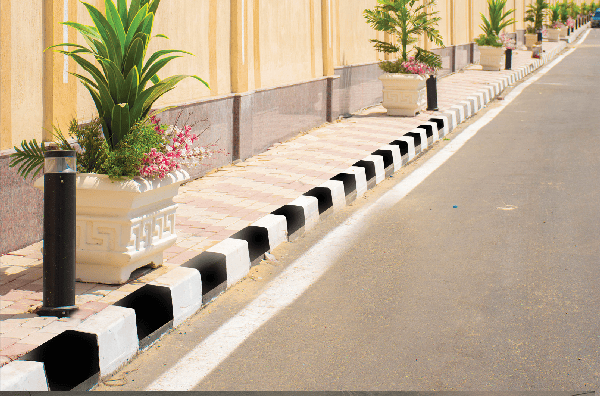

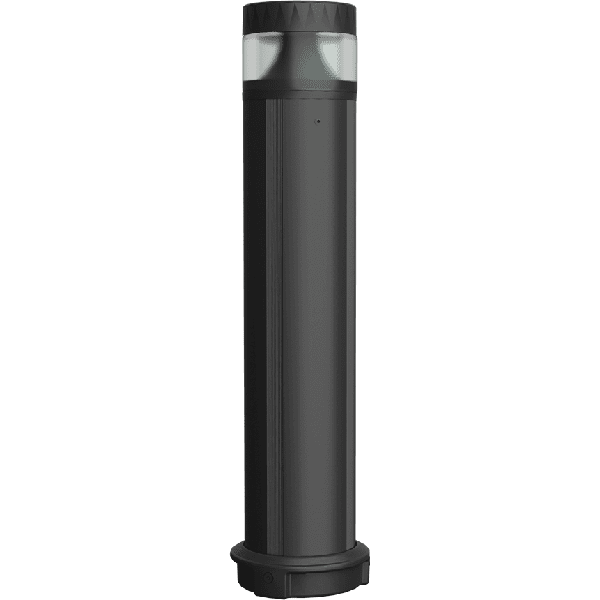

A decorative bollard for landscape lighting, light source is SMD LED PCB facing downwards and emission is through a diffuser and a reflector, totally eliminating glare. Light emission all around symmetrically provides an asset for smart decoration
Art. No.
IMRO-SMD01824001 Imro LED Bollard 1m 18W 4000°K
Sega-M Warranty: 3 Years
Sources for software simulation for installation (*.IES, *.LDT files) and advanced test results are available on request
Performance described above requires proper installation according to internationally recognized codes and within mentioned operational limitations.
Any properties not directly affecting photometric, spectrometric or electrical performance are liable to change without prior notice.
