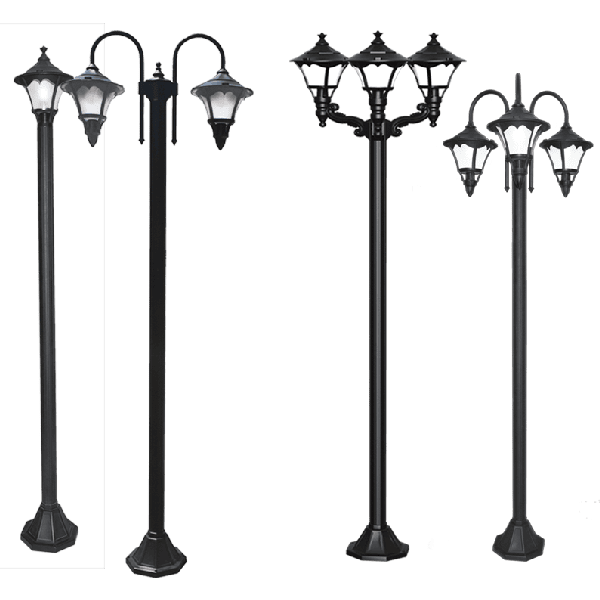

Lantern Single/Double/Triple Pole
The SEGA-M Lantern Single/Double/Triple Pole is a classic ground-mounted E27 outdoor garden lantern pole system, rated IP54, available in single (1 lamp), double (2 lamps), and triple (3 lamps) configurations at pole heights of 2.5 m and 3 m. Accepting up to 100W per E27 socket (220V), it accommodates both steel tube pendants and ABS arm-bracket mounting options. Designed for gardens, residences, villas, landscape parks, and pedestrian public spaces.
Product Overview
Lantern Single/Double/Triple Pole The SEGA-M Lantern Single/Double/Triple Pole is a classic ground-mounted E27 lantern pole luminaire system, IP54 rated, designed for wall and landscape lighting in gardens, residences, villas, and landscape parks. Its modular system accommodates single, double, and triple lamp configurations at two pole heights, enabling projects to specify consistent lantern aesthetics across varied light levels and mounting requirements.
Body & Construction ABS body (UV resistant) with aluminum section tube Ø75 mm and optional aluminum base. Available in steel tube pendant arm (SFP/DIP/TIP) or ABS arm bracket (SFP/DCP/TCP) configurations. Milky prismatic polycarbonate UV-resistant diffuser. IP54 outdoor protection.
LED Technology (Lamp Data) Single pole: UP TO 100W E27, LOR 43%, spread 173.5°. Double pole: UP TO 200W E27, LOR 43–51.2%, spread 173.5–194.9°. Triple pole: UP TO 300W E27, LOR 43–51.2%, spread 173.5–194.9°. Heights: 2.5m / 3m. Based on 12W LED bulb reference.
At a Glance
Ordering Information
| Item Code | Item Description | Power (W) | Power Supply (V) | LOR (%) | Diffuser | Spread Angle (°) | Dimensions (Ø×B×D×H) |
|---|---|---|---|---|---|---|---|
| SFP250-E27000000-- | LANTERN SINGLE POLE E27-IP54 L2.5m | Up to 100 | 220 | 43 | Milky Polycarbonate | 173.5 | 295×375×2500 |
| SFP300-E27000000-- | LANTERN SINGLE POLE E27-IP54 L3m | Up to 100 | 220 | 43 | Milky Polycarbonate | 173.5 | 295×375×3000 |
| DIP250-E27000000-- | LANTERN DOUBLE POLE STEEL TUBE PENDENT E27-IP54 L2.5m | Up to 200 | 220 | 51.2 | Milky Polycarbonate | 194.9 | 885×408×2500 |
| DIP300-E27000000-- | LANTERN DOUBLE POLE STEEL TUBE PENDENT E27-IP54 L3m | Up to 200 | 220 | 51.2 | Milky Polycarbonate | 194.9 | 885×408×3000 |
| DCP250-E27000000-- | LANTERN DOUBLE POLE ABS ARM BASED E27-IP54 L2.5m | Up to 200 | 220 | 43 | Milky Polycarbonate | 173.5 | 870×375×2500 |
| DCP300-E27000000-- | LANTERN DOUBLE POLE ABS ARM BASED E27-IP54 L3m | Up to 200 | 220 | 43 | Milky Polycarbonate | 173.5 | 870×375×3000 |
| TIP250-E27000000-- | LANTERN TRIPLE POLE STEEL TUBE PENDENT E27-IP54 L2.5m | Up to 300 | 220 | 51.2 | Milky Polycarbonate | 194.9 | 805×408×2500 |
| TIP300-E27000000-- | LANTERN TRIPLE POLE STEEL TUBE PENDENT E27-IP54 L3m | Up to 300 | 220 | 51.2 | Milky Polycarbonate | 194.9 | 805×408×3000 |
| TCP250-E27000000-- | LANTERN TRIPLE POLE ABS ARM BASED E27-IP54 L2.5m | Up to 300 | 220 | 43 | Milky Polycarbonate | 173.5 | 792×375×2500 |
| TCP300-E27000000-- | LANTERN TRIPLE POLE ABS ARM BASED E27-IP54 L3m | Up to 300 | 220 | 43 | Milky Polycarbonate | 173.5 | 792×375×3000 |
All variants available for export orders — contact us for MOQs, lead times and custom configurations.

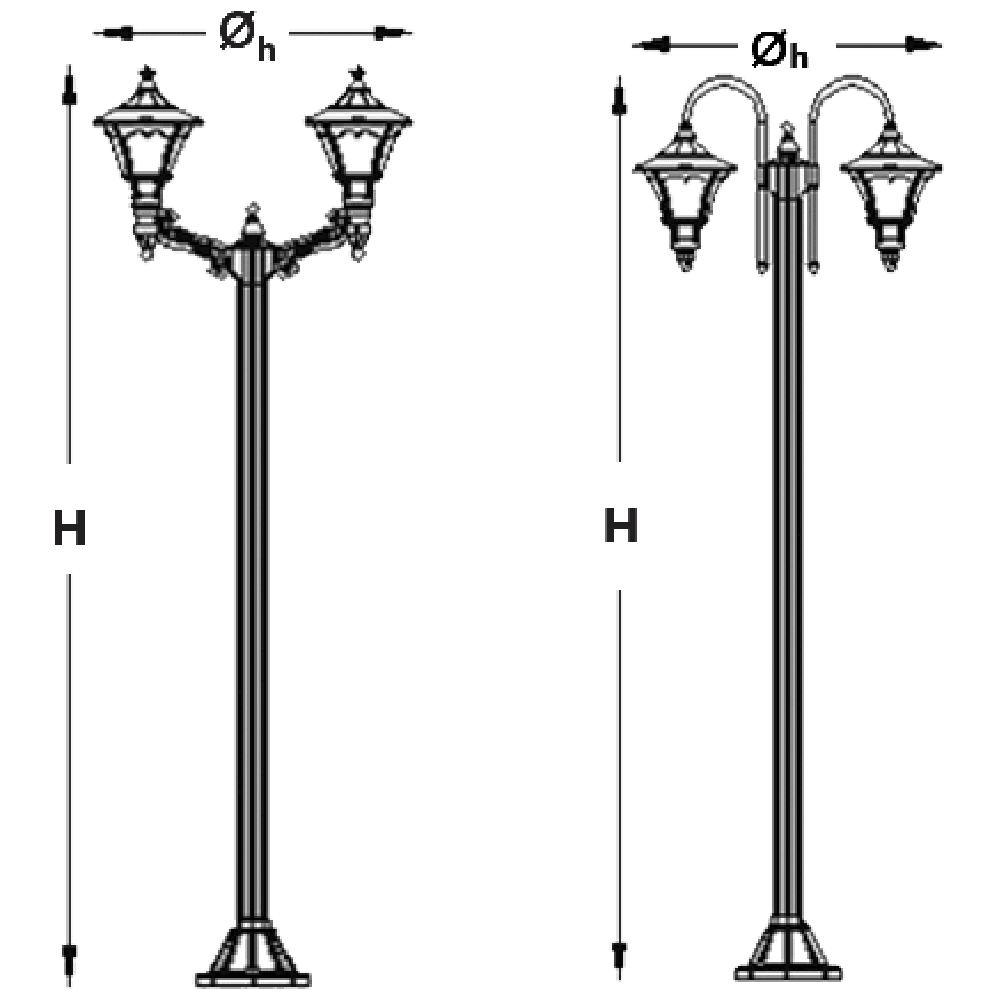

Technical Drawings
