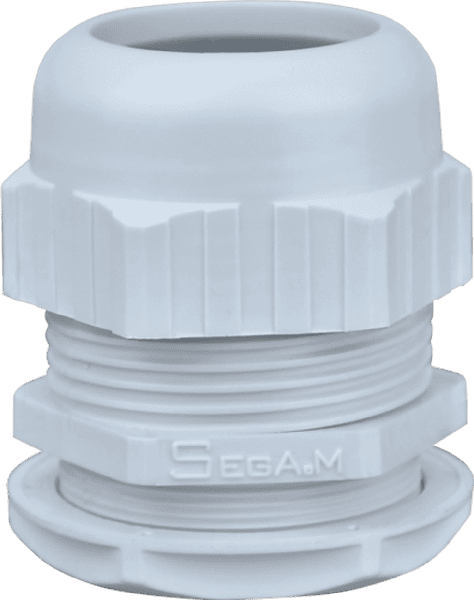

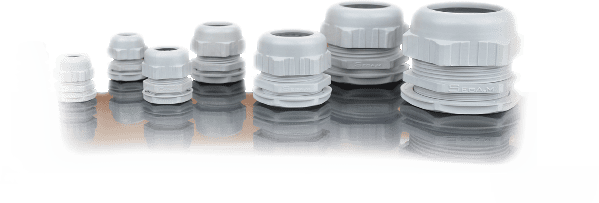

CABLE GLAND

• Cable Compartment

• Standard

• Cable entry from bottom, earth bar and bushings to the switching device compartment

• Variations

• Cable fault making earth switch (25kA/1s) Current Transformer

• Block Type

• Voltage Transformer, Block type Cable connections up to 4 cable / phase Lightning arrestor

• Gland plate

• Steel, Aluminium, Stainless Steel, Brass Cable entry

• Top, adds additional 600 mm cable box

• Selective disconnection by Block type current transformers

• Truck Type Vacuum Circuit Breaker

• Economic functional design

• Compact dimensions (800 mm width)

• Individually operated shutters

• Fully mechanically interlocked

• All switching operations behind closed HV Door

• Separate LV Compartment

• Primary fused withdrawable PT

• Top Cable Entry (option)

• Suitable for trench mounting

• Compact, space saving design

• No special tools are needed for assembly

• Reduce space for storage and transportation

• High flexibility

• Designed according to customer needs

• Dimensions :

      -   Height from 300 mm up to 1200 mm

      -   Width from 300 mm up to 1000 mm

      -    Depth from 200 mm up to 300 mm

• Protection degree up to IP 65

• Can be equipped cable compartment

• Rated current up to 630A

• Design and assembled according to IEC 439-1

• All routine tests are applied

• Polyester powder RAL 7032 or 7035 As Reqest

• Incoming and outgoing from top or bottom

• Can be recessed "Frame Must Be added" or wall mounted

• Applications :

      -   Main & outgoing switchboards

      -    Motor Starter

      -    Load Center up to 72 Lines

• Available in stainless steel as per Request
