1.5mm Carbon Steel Body
Robotically welded for high precision and structural integrity, ensuring long-term durability.
Distribution Board NSFB (Type Tested)

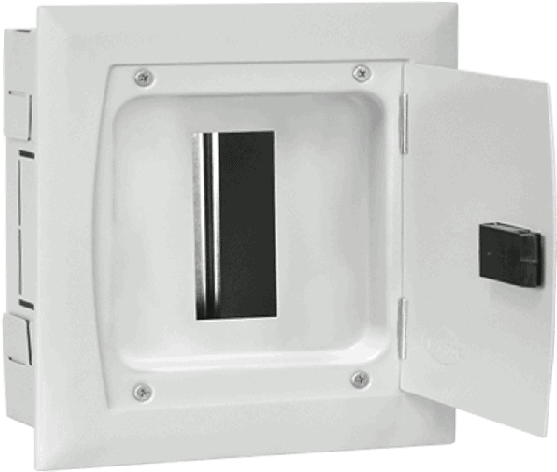

SEGA-M Steel Distribution Box — 3 to 6 Line Residential Panels
The SEGA-M Steel Distribution Box series is a compact and reliable solution for small-scale electrical distribution in residential and hospitality projects. Designed for use in houses, hotels, and small commercial units, these boxes are available in 3 and 6-line configurations. Constructed from high-quality cold-rolled steel and finished with a durable electrostatic powder coating, they offer a professional look and long-lasting performance. The boxes feature high-quality brass bars and zinc-plated connecting tools for secure electrical paths. With an optional protection degree up to IP65, they provide excellent resistance against dust and water, ensuring the safety of internal controls in various indoor environments.
6 Lines Max Capacity
IP65 Max Protection
1.5mm Steel Thickness
Brass Busbar Material
ISO 9001 · 14001 · 45001
Siemens Technology Partner
Made in Egypt
01
Key Features
IP65 Protection Degree
Provides a complete seal against environmental hazards, ideal for demanding indoor locations.
High-Quality Brass Bars
Ensures reliable electrical distribution and minimizes connection resistance.
Compact & Good Design
Sleek appearance that meets the aesthetic needs of modern residential and hotel projects.
Zinc-Plated Connecting Tools
Corrosion-resistant screws and tools ensure a secure and maintenance-free assembly.
IEC 439-1 Compliant
Manufactured to international standards, providing peace of mind and guaranteed quality.
02
Technical Specifications
Body Material1.5mm carbon steel (formed and robotically welded)
Door Material1.5mm carbon steel with seamless gasket
Internal Plate2mm galvanized steel, punched and bended
Degree of ProtectionUp to IP65 (as per request)
Busbar MaterialHigh-quality Brass
Surface FinishElectrostatic polyester powder coating RAL 7032 or 7035
OriginEgypt — SEGA-M Manufacturing Facility
03
Variants Table
| Model | Capacity | Dimensions (L x W x D) |
|---|---|---|
| 3 Line Panel | 3 Lines | 180 x 230 x 90 mm |
| 6 Line Panel | 6 Lines | 250 x 230 x 90 mm |
| Custom Panel | As per request | 300 x 230 x 90 mm |
All variants available for export orders — contact us for MOQs, lead times and custom configurations.
04
Recommended Project Applications
Residential houses and villas
Sub-distribution for specific room controls
Hotels and hospitality projects
Indoor locations requiring high-quality steel enclosures
Small commercial offices
Download Technical Datasheet
Access full technical specifications, dimension drawings, and IP rating details for SEGA-M Steel Distribution Boxes.
Request Datasheet (PDF)
Delivered via WhatsApp · response within 24h
Materials & Construction
Designed for Long Service Life
Siemens SIVACON Technology Partner
Siemens SIMOPRIME Technology Partner
40+ Years Industry Experience
30,000m² Factory in Egypt
Type Tested to IEC/EN Standards
Export inquiries welcome
Let’s Support Your Next Project
Send your project requirements, rating, feeder count, and preferred enclosure specification. SEGA-M can support quotations for industrial, commercial, and infrastructure projects.
Request an InquiryResponse within 24 hours for all export inquiries.
