Slim Profile Design
Blends seamlessly into walls, making it ideal for high-end residential and commercial spaces.
Distribution Board NSFB (Type Tested)

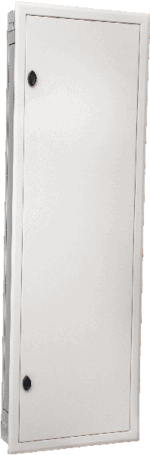

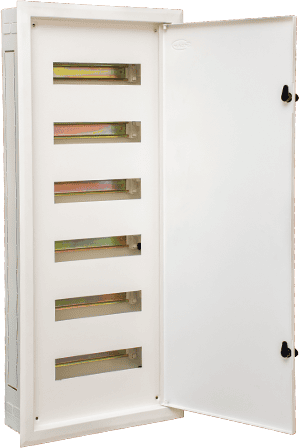

SEGA-M Recessed Electric Box Slim — 72 to 96 Line Distribution Panels
The SEGA-M Recessed Electric Box Slim series is a high-performance distribution solution designed for modern residential and commercial applications. Available in 72, 84, and 96-line configurations, these slim-profile boxes are engineered to blend seamlessly into any environment while providing maximum safety and durability. Constructed from high-quality cold-rolled steel with a 0.8mm body and 1.25mm doors, they are finished with a durable electrostatic powder coating. Featuring high-quality brass bars and zinc-plated iron screws, these boxes ensure reliable electrical connections. Ideal for large-scale workshops, medical institutes, and service industries, they offer a sleek design without compromising on technical excellence.
96 Lines Max Capacity
Slim Profile Design
Brass Busbar Material
0.8mm Body Thickness
ISO 9001 · 14001 · 45001
Siemens Technology Partner
Made in Egypt
01
Key Features
Cold Rolled Steel Body
Provides exceptional strength and a smooth finish for long-lasting performance.
High-Quality Brass Bars
Ensures excellent electrical conductivity and reduces the risk of overheating.
Electrostatic Powder Coating
Offers superior protection against corrosion and wear, maintaining a clean look.
Zinc-Plated Screws
Corrosion-resistant connecting tools ensure the integrity of the assembly over time.
High Safety Standards
Designed to meet the rigorous safety requirements of medical and industrial facilities.
02
Technical Specifications
Body MaterialCold rolled steel (0.8mm thickness)
Door MaterialCold rolled steel (1.25mm thickness)
Busbar MaterialHigh-quality Brass
Connecting ToolsIron plated with zinc screws
Surface FinishElectrostatic powder coating
InstallationRecessed / Flush mount
OriginEgypt — SEGA-M Manufacturing Facility
03
Variants Table
| Model Code | Capacity | Dimensions (L x W x D) | Weight (Kg) |
|---|---|---|---|
| SRH72-SLIM | 72 Line Panel | 400 x 905 x 102 mm | 11.5 |
| SRH84-SLIM | 84 Line Panel | 400 x 1055 x 102 mm | 13.3 |
| SRH96-SLIM | 96 Line Panel | 400 x 1205 x 102 mm | 15.05 |
All variants available for export orders — contact us for MOQs, lead times and custom configurations.
04
Recommended Project Applications
Modern residential complexes and villas
Large-scale workshops and service industries
Medical institutes and hospitals
High-end interior projects requiring slim electrical panels
Commercial office buildings
Download Technical Datasheet
Get full technical drawings, line configurations, and installation guides for SEGA-M Slim Recessed Electric Boxes.
Request Datasheet (PDF)
Delivered via WhatsApp · response within 24h
Materials & Construction
Designed for Long Service Life
Siemens SIVACON Technology Partner
Siemens SIMOPRIME Technology Partner
40+ Years Industry Experience
30,000m² Factory in Egypt
Type Tested to IEC/EN Standards
Export inquiries welcome
Let’s Support Your Next Project
Send your project requirements, rating, feeder count, and preferred enclosure specification. SEGA-M can support quotations for industrial, commercial, and infrastructure projects.
Request an InquiryResponse within 24 hours for all export inquiries.
