LED Bollard – Imro square

LED square bollard

(Imro-square) 18W

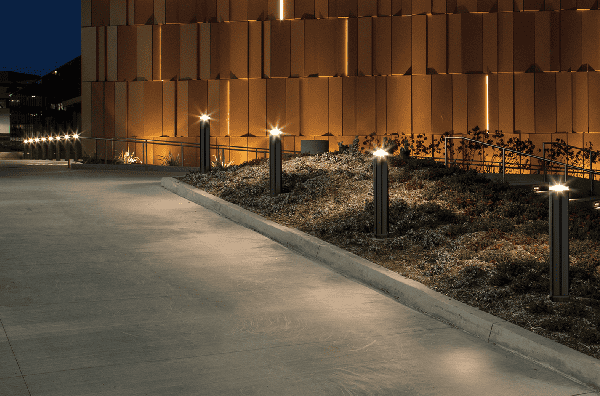

Lighting solution for gardens

and general landscape lighting.



This product is currently out of stock and unavailable.

SKU: N/A Category:

Description



Mass : Head 1.4kg

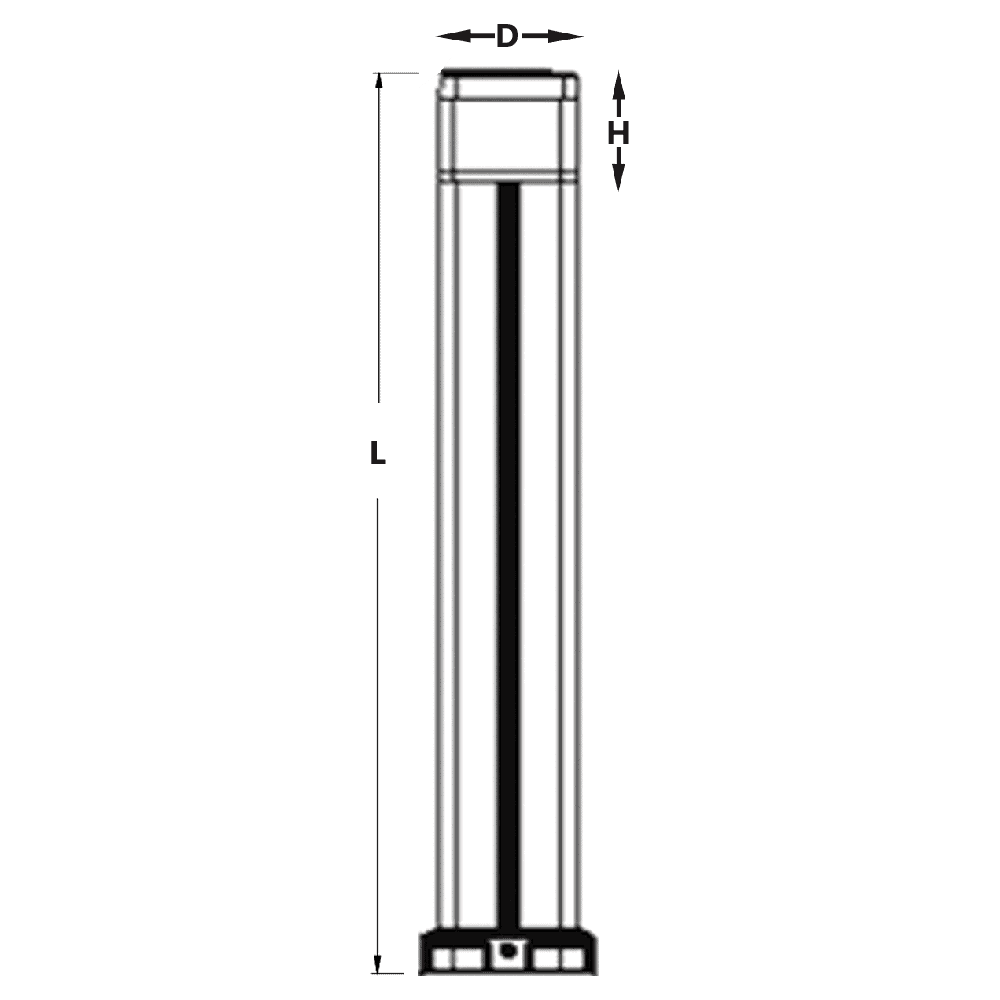

Dimensions : 150*150mm * h 135mm (head)* L 500/1000 mm
Body : Electrostatically coated sections + die cast aluminum
Reflector : colored / specular
Diffuser : Clear poly carbonate
Ingression protection : IP65
Mechanical impact resistance : IK08

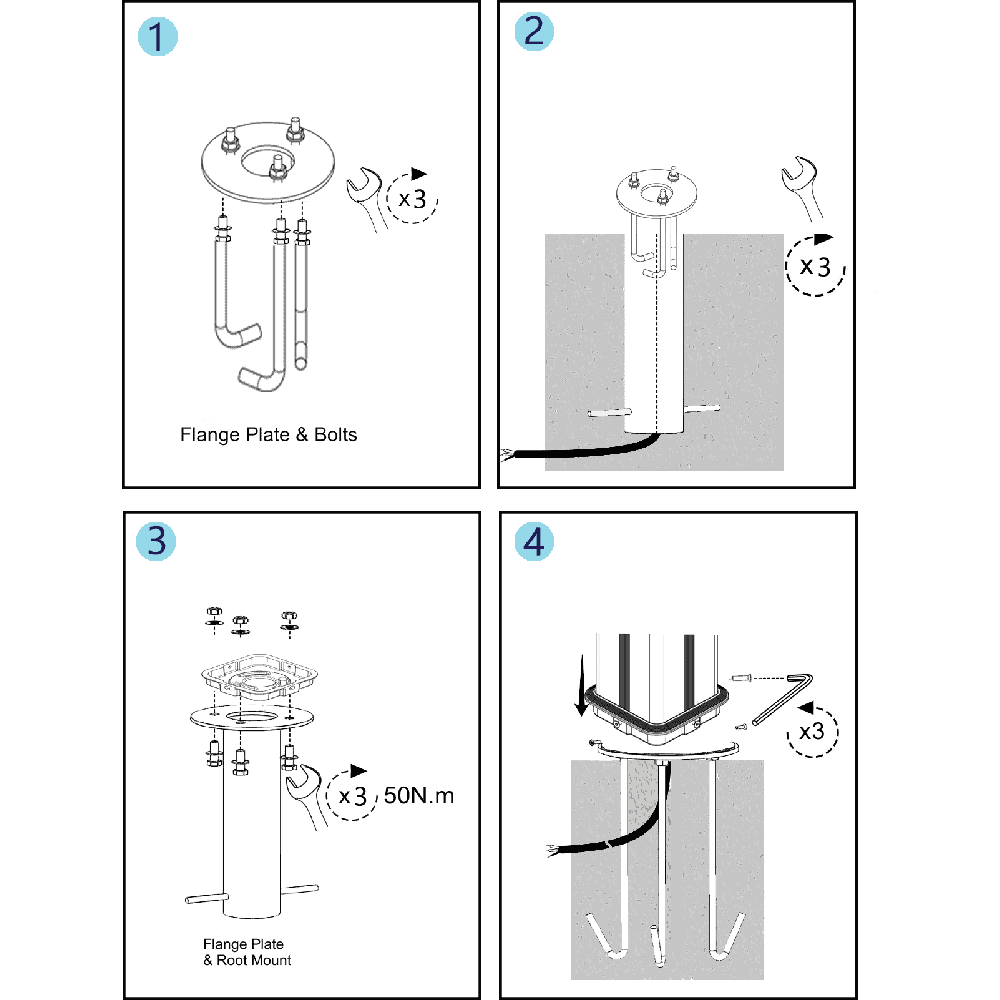

Mounting : M6-M8 Fischer screws, anchor bolts, ground mounted



Light Source : SMD LEDs
Luminous Flux  : 1225 Lm

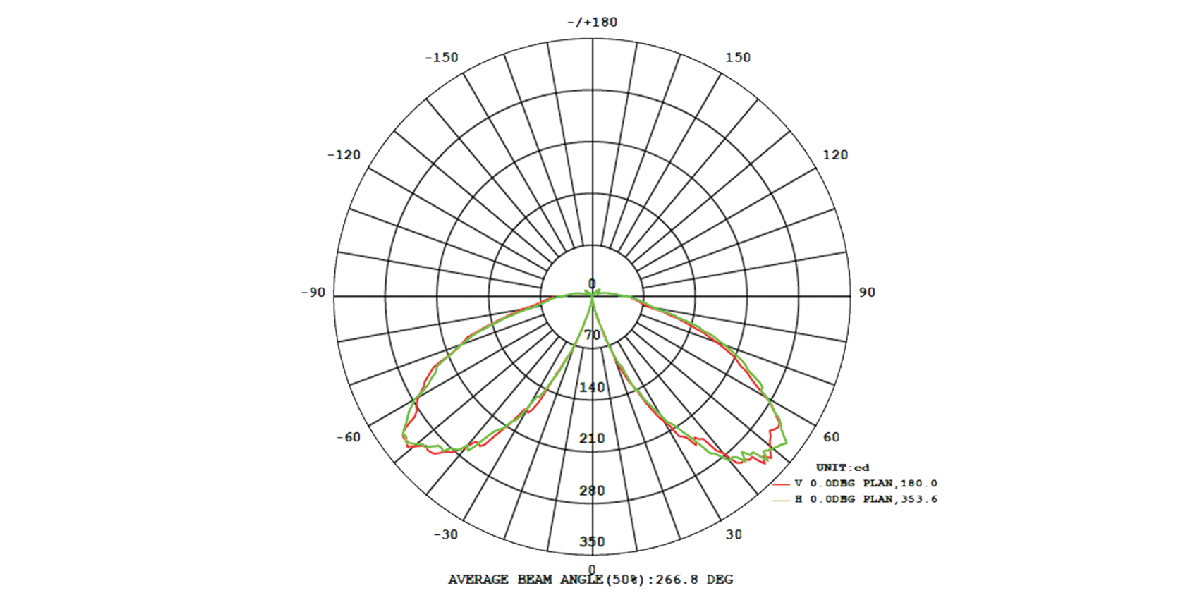

Spread angle  : 180°

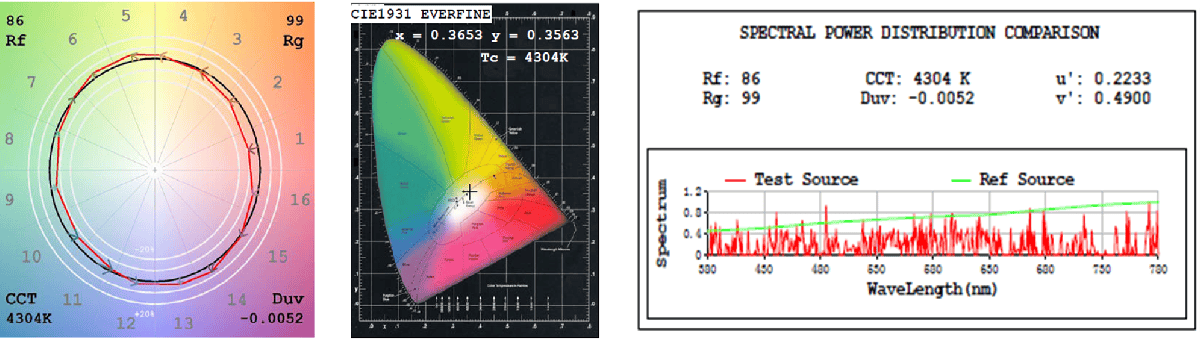

Correlated Color Temperature(CCT) : 4095°K (Neutral white)
Dominant Wavelength  : 585.9nm
Color Rendering index (Ra) : 88.2
TM-30 Fidelity Index (Rf) : 87
TM-30 Gamut Index (Rg) : 98
CQS Qa  : 82.9
CQS TLCI  : 84



Typical power supply : 220VAC, 50/60Hz
Power : 18W nominal
Current  : 0.086 A (RMS)
Power Factor  : 0.948
Total Harmonic distortion (THDI)  : 11.6%



Owing to the special nature of application (water
flooding possible) it is strongly recommended to supply this product through Earth fault/leakage protected supply as per national code.



A decorative bollard for landscape lighting, light source is SMD LED PCB facing downwards and emission is through a diffuser and a reflector, totally eliminating glare. Light emission through four sides with no separating support provides an asset for smart decoration.



IMRO SQ-SMD01824001          Imro square LED Bollard 1m 18W 4000°K



Sega-M Warranty: 3 Years



Sources for software simulation for installation (*.IES, *.LDT files) and advanced test results are available on request
Performance described above requires proper installation according to internationally recognized codes and within mentioned operational limitations.
Any properties not directly affecting photometric, spectrometric or electrical performance are liable to change without prior notice.
