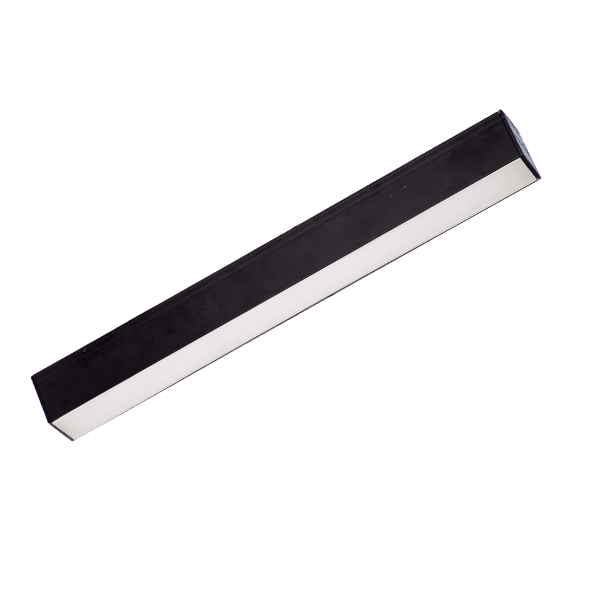

LED Profil
Physical specifications
Mass : 3.4kg/m
Dimensions : D 65 * T 63 * L 600/1200mm.
Body :Electrostatically coated aluminum section frame.
Reflector:Electrostatically coated sheet steel
Diffuser :Polystyrene – Milky
Mounting :Recessed / surface mounted (M6 Screws/bolts) / pendent (M6 studs)
LED Profil
Photometric Characteristics
Light Source : SMD LED
Efficacy :102.25 Lm/W
Total Luminous flux:1833/3681 Lumen (+/-1%) @ 18/36W
LED Profil
Spectrometry
Correlated Color Temperature(CCT) : 3000-6000°K
Color Rendering index (Ra) :86.4
TM-30 Fidelity Index (Rf) :86
TM-30 Gamut Index (Rg) : 98
LED Profil
Electrical Parameters
Typical power supply :220VAC, 50Hz
Power :18/36W
An ideal solution for concentrated linear lighting, designed to replace conventional exposed fluorescent tube lights while in the same time give a sleek modern architectural look. The liberty of choice of fixation method fits all requirements and purposes
LED Profil
Datasheet
Sega-M Warranty: 3 years
Sources for software simulation for installation (*.IES, *.LDT files) and advanced test results are available on request
Performance described above requires proper installation according to internationally recognized codes and within mentioned operational limitations.
Any properties not directly affecting photometric, spectrometric or electrical performance are liable to change without prior notice.
